model details

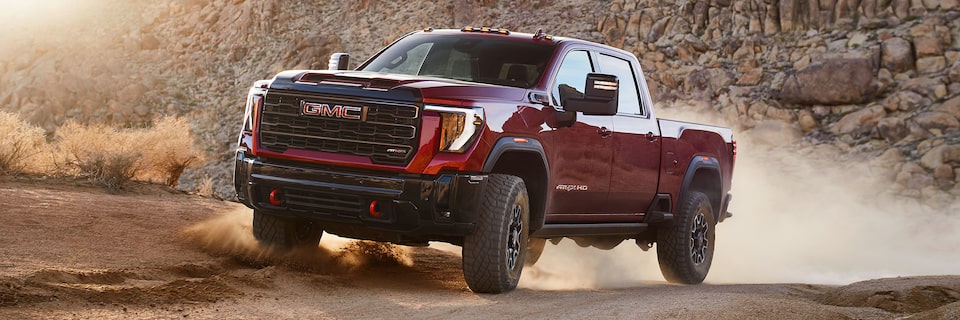

FIRST EVER SIERRA HD AT4

AS SHOWN: $73,475

FIRST EVER SIERRA HD AT4

AS SHOWN: $73,475

TOW UP TO

TOW UP TO

21,300 LBS

21,300 LBS


MAX PAYLOAD UP TO

MAX PAYLOAD UP TO

4,398 LBS

4,398 LBS


MAX TORQUE UP TO

MAX TORQUE UP TO

910 LB-FT

910 LB-FT


STARTING AT

STARTING AT

$57,700

$57,700

2500 VS 3500

2500 HD AT4

  • Maximum conventional trailering capacity of up to 18,500 lbs
  • Maximum fifth-wheel/gooseneck rating of up to 18,500 lbs
  • Maximum payload of up to 3,862 lbs

3500 HD AT4

  • Maximum conventional trailering capacity of up to 20,000 lbs
  • Maximum fifth-wheel/gooseneck rating of up to 21,300 lbs
  • Maximum payload of up to 4,398 lbs

ADVENTURE POWERFULLY

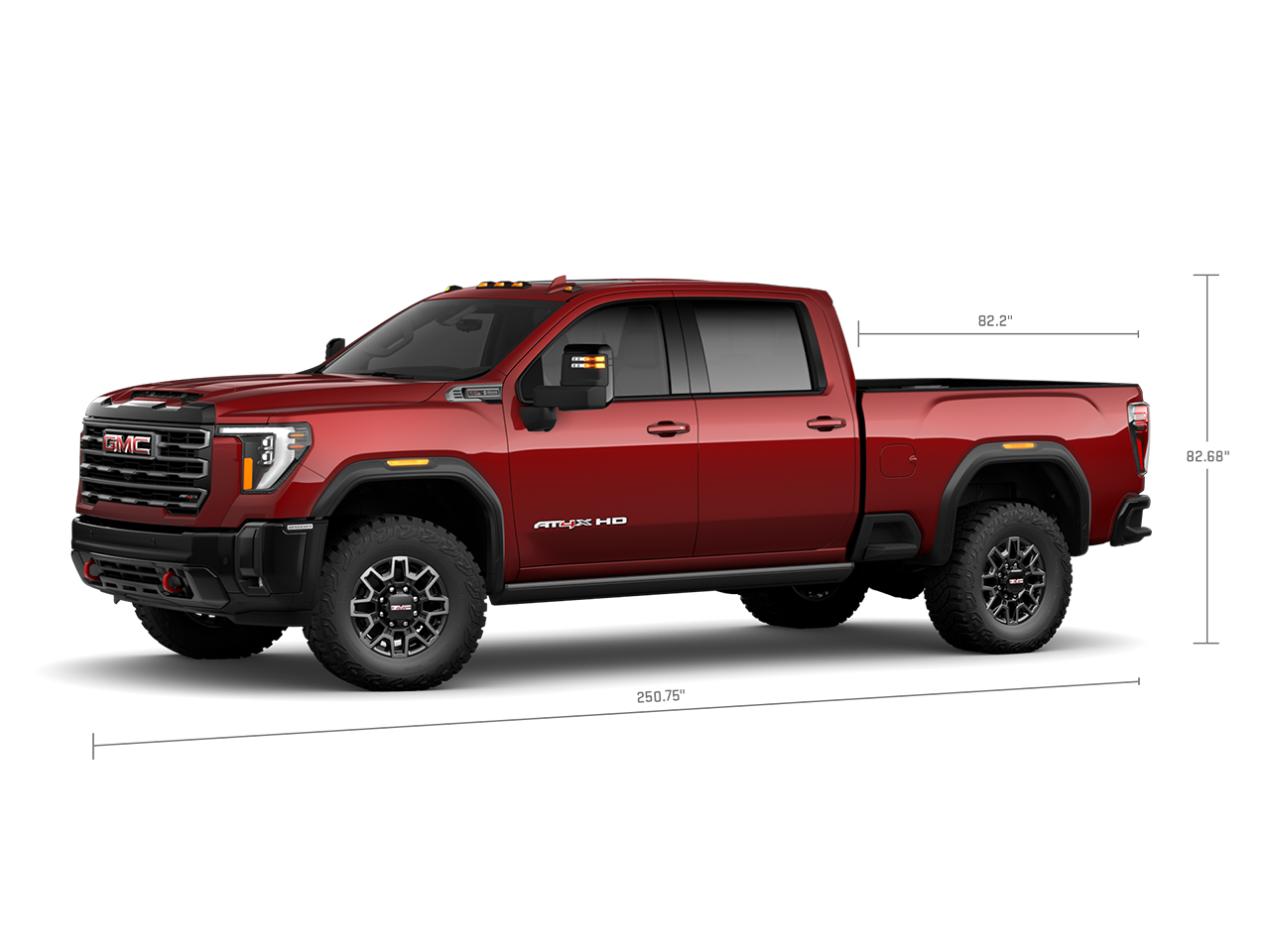

SPEC HIGHLIGHTS

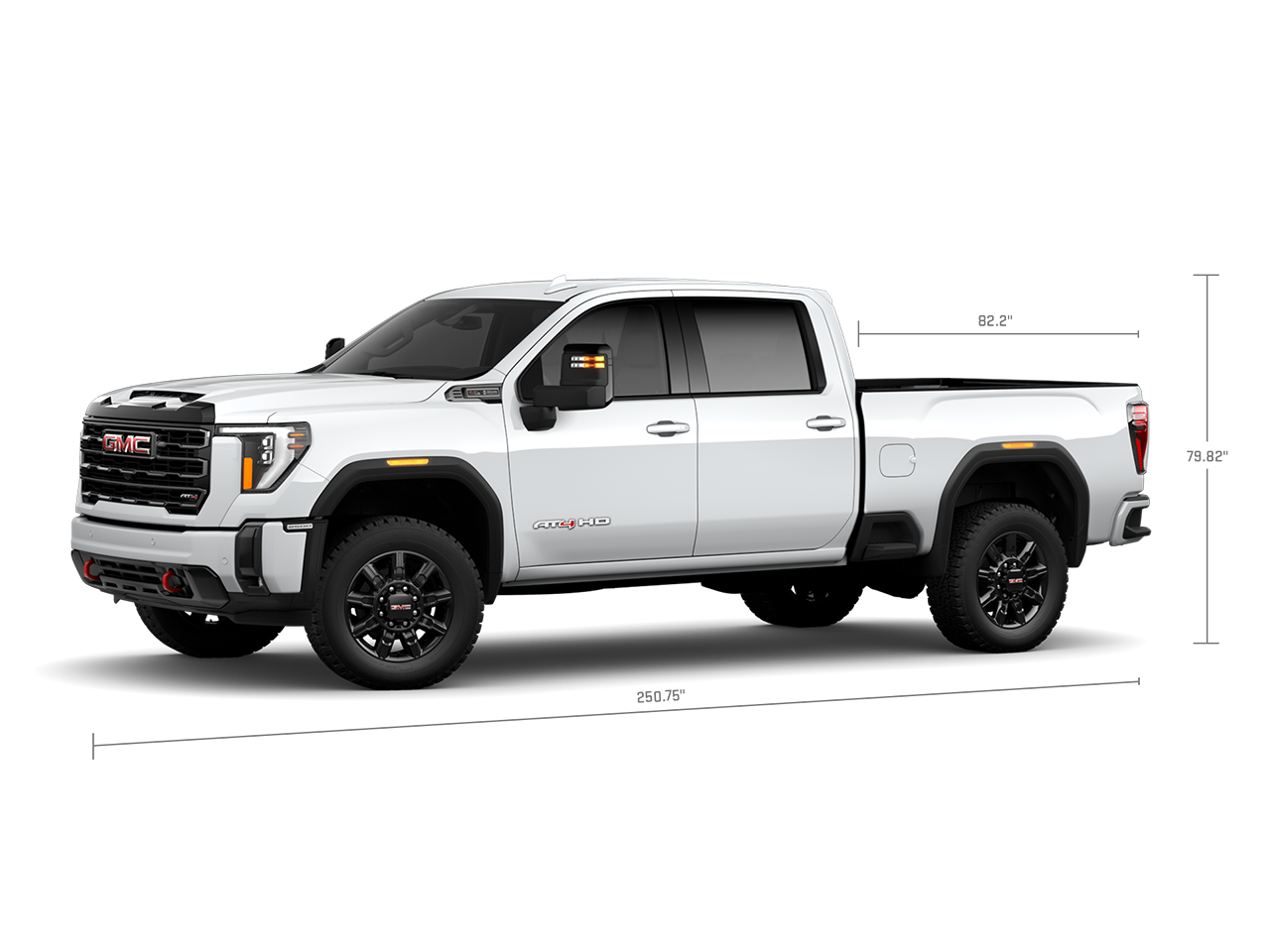

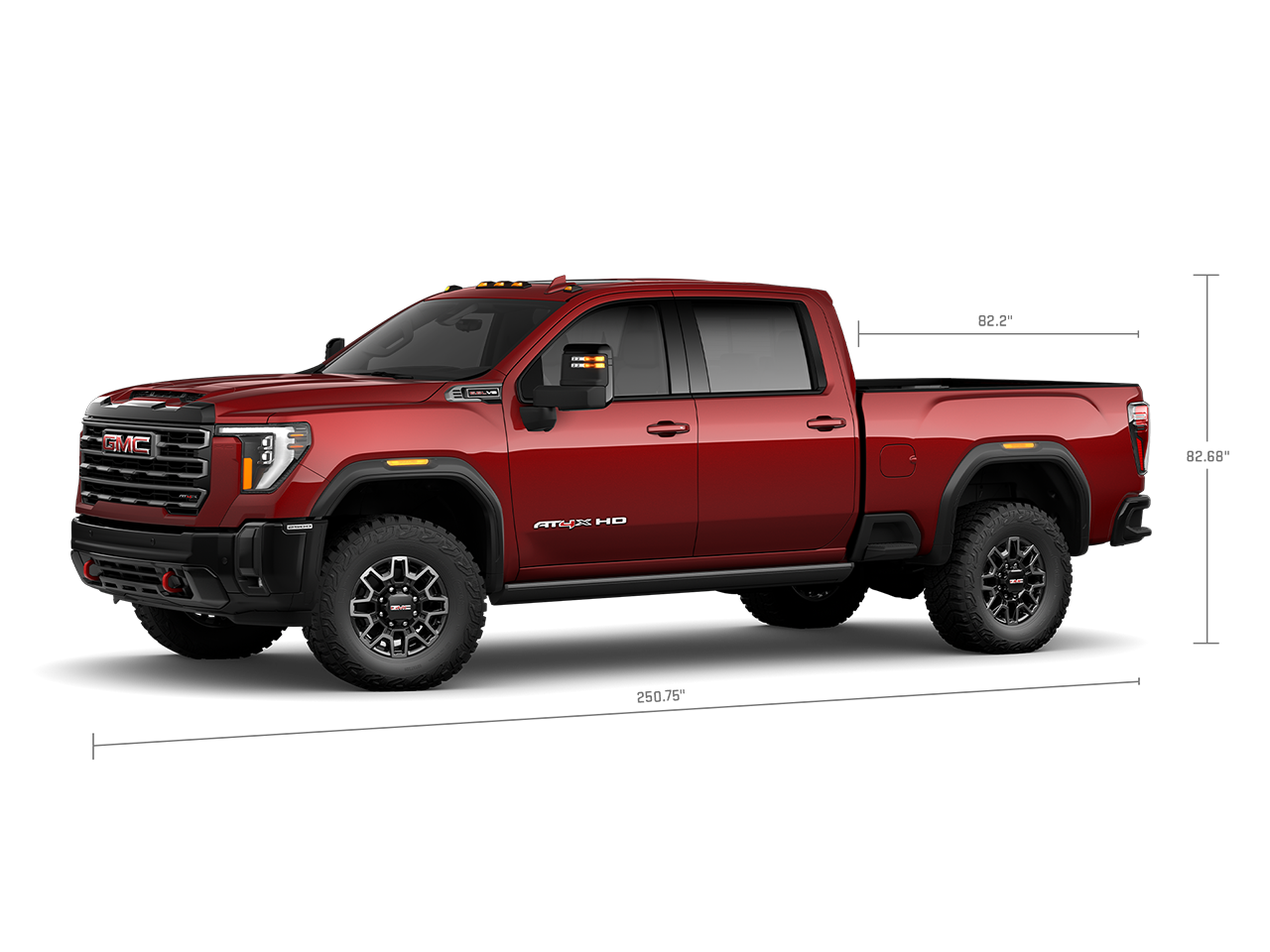

2500 HD AT4

The First Ever Sierra 2500 AT4 truck comes in a 4WD Crew Cab with a 6' 9" standard box or available 8' long box.

MAX GCWR

27,500 LBS

MAX GVWR

11,550 LBS

WHEELBASE

158.9-172 IN.

GROUND CLEARANCE

10.1 IN.

FRONT/REAR TREAD WIDTH

68.1/68.3 IN.

CARGO VOLUME

69.6-83.5 CU.FT.

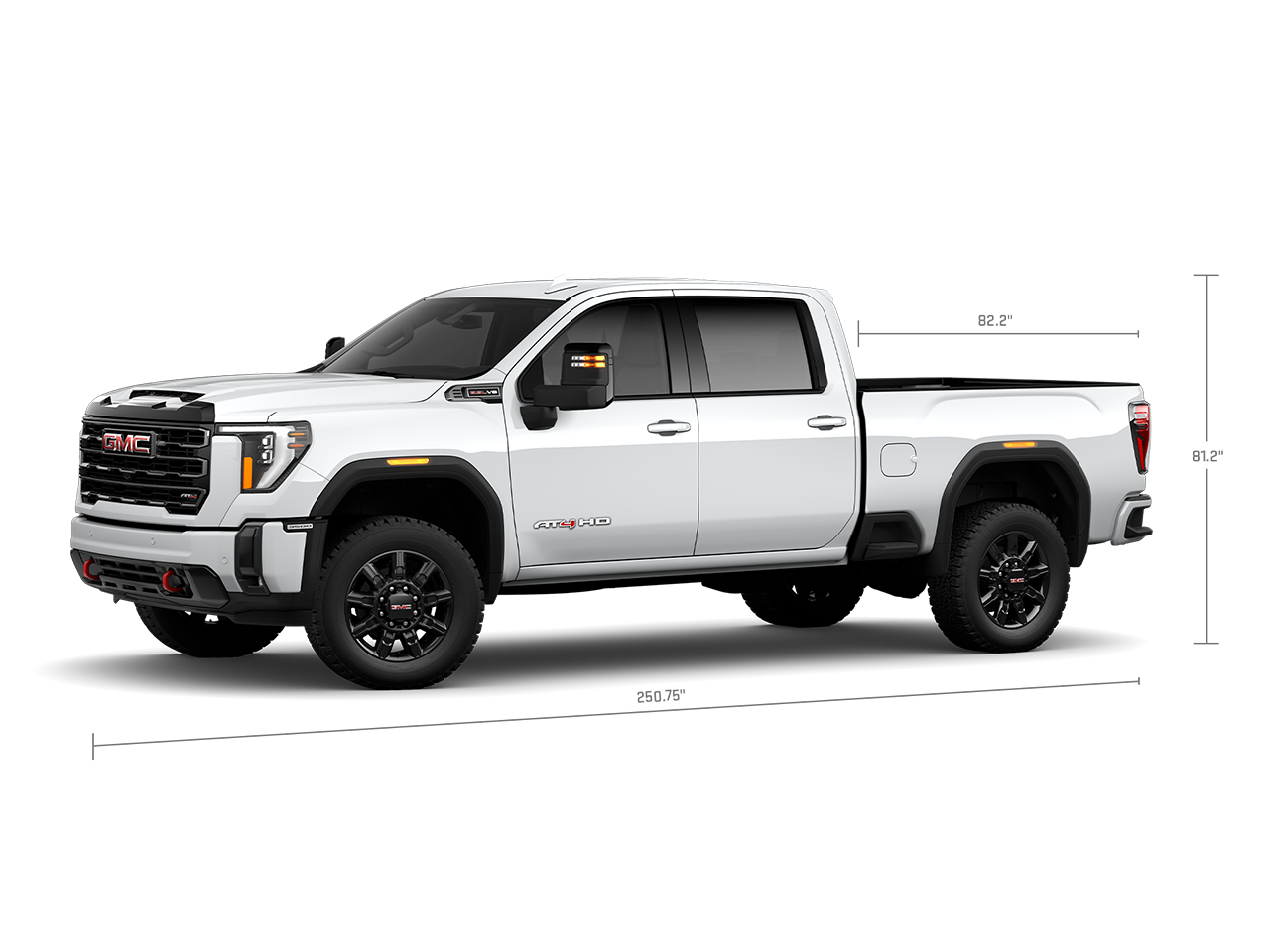

3500 HD AT4

The First Ever Sierra 3500 AT4 truck comes in a 4WD Crew Cab with a 6' 9" standard box or available 8' long box. SRW only.

MAX GCWR

29,700 LBS

MAX GVWR

12,250 LBS

WHEELBASE

158.9-172 IN.

GROUND CLEARANCE

10.4-11.2 IN.

FRONT/REAR TREAD WIDTH

68.1/68.3 IN.

CARGO VOLUME

69.6-83.5 CU.FT.

2500 HD AT4 DETAILED SPECS

2500 DIESEL TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

MAX GCWR

27,500 LBS

27,500 LBS

MAX CONVENTIONAL HITCH

18,500 LBS

18,500 LBS

MAX FIFTH WHEEL HITCH

18,500 LBS

18,500 LBS

MAX GOOSENECK HITCH

18,500 LBS

18,500 LBS

MAX PAYLOAD

3,563 LBS

3,597 LBS

2500 GAS TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

MAX GCWR

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

MAX FIFTH WHEEL HITCH

16,620 LBS

16,520 LBS

MAX GOOSENECK HITCH

16,620 LBS

16,520 LBS

MAX PAYLOAD

3,760 LBS

3,862 LBS

2500 ENGINES

6.6 L V8 Gasoline

6.6 L V8 Turbo Diesel

CYLINDER HEAD MATERIAL

Cast Aluminum

Cast Aluminum

COMPRESSION RATIO

10.75 : 1

16 : 1

VALVETRAIN

Overhead-valve, two valves per cylinder, variable valve trimming

Overhead-valve, four valves per cylinder

FUEL DELIVERY

Direct Fuel Injection

Common-Rail Direct Fuel Injection

HORSEPOWER (hp @rpm)

401 @5200

445 @2800

TORQUE (lb.-ft @rpm)

464 @4000

910 @1600

2500 TRANSMISSIONS & AXLES

HYDRA-MATIC 6L90 SIX-SPEED AUTOMATIC TRANSMISSION (6.6L GAS)

ALLISON 10-SPEED AUTOMATIC TRANSMISSION (6.6L DIESEL)

GEAR RATIOS (:1)

6L90

10L1000

FIRST GEAR

4.03

4.54

SECOND GEAR

2.36

2.87

THIRD GEAR

1.53

2.06

FOURTH GEAR

1.15

1.72

FIFTH GEAR

0.85

1.48

SIXTH GEAR

0.67

1.26

SEVENTH GEAR

1.00

EIGHTH GEAR

0.85

NINTH GEAR

0.69

TENTH

0.63

REVERSE

3.06

4.54

AXLE RATIO

3.73

3.42

REAR AXLE RING GEAR SIZE

11.5 in.

11.5 in.

2500 DIMENSIONS

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

WHEELBASE

158.9"

172"

OVERALL LENGTH

250.1"

266.1"

OVERALL WIDTH

81.9"

81.9"

OVERALL HEIGHT

79.8"

79.7"

CARGO BED INSIDE LENGTH (AT FLOOR)

82.2"

98.2"

INSIDE HEIGHT (BOX)

21"

21"

INSIDE WIDTH (BETWEEN WHEELHOUSING)

51.9"

50.6"

WALL TO WALL

71.4"

71.4"

CARGO BOX VOLUME

69.6 cu.ft

83.5 cu.ft

3500 HD AT4 DETAILED SPECS

3500 DIESEL TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX SRW

MAX GCWR

29,700 LBS

29,700 LBS

MAX CONVENTIONAL HITCH

20,000 LBS

20,000 LBS

MAX FIFTH WHEEL HITCH

21,300 LBS

21,040 LBS

MAX GOOSENECK HITCH

21,300 LBS

21,040 LBS

MAX PAYLOAD

4,185 LBS

4,078 LBS

3500 GAS TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX SRW

MAX GCWR

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

MAX FIFTH WHEEL HITCH

16,530 LBS

16,410 LBS

MAX GOOSENECK HITCH

16,530 LBS

16,410 LBS

MAX PAYLOAD

4,365 LBS

4,398 LBS

3500 ENGINES

6.6 L V8 Gasoline

6.6 L V8 Turbo Diesel

CYLINDER HEAD MATERIAL

Cast Aluminum

Cast Aluminum

COMPRESSION RATIO

10.75 : 1

16 : 1

VALVETRAIN

Overhead-valve, two valves per cylinder, variable valve trimming

Overhead-valve, four valves per cylinder

FUEL DELIVERY

Direct Fuel Injection

Common-Rail Direct Fuel Injection

HORSEPOWER (hp @rpm)

401 @5200

445 @2800

TORQUE (lb.-ft @rpm)

464 @4000

910 @1600

3500 TRANSMISSIONS & AXLES

HYDRA-MATIC 6L90 SIX-SPEED AUTOMATIC TRANSMISSION (6.6L GAS)

ALLISON 10-SPEED AUTOMATIC TRANSMISSION (6.6L DIESEL)

GEAR RATIOS (:1)

6L90

10L1000

FIRST GEAR

4.03

4.54

SECOND GEAR

2.36

2.87

THIRD GEAR

1.53

2.06

FOURTH GEAR

1.15

1.72

FIFTH GEAR

0.85

1.48

SIXTH GEAR

0.67

1.26

SEVENTH GEAR

1.00

EIGHTH GEAR

0.85

NINTH GEAR

0.69

TENTH

0.63

REVERSE

3.06

4.54

AXLE RATIO

3.73

3.42

REAR AXLE RING GEAR SIZE

11.5 in.

12 in.

3500 DIMENSIONS

4WD CREW CAB STANDARD BOX

SRW CREW CAB LONG BOX 4WD

WHEELBASE

158.9"

172"

OVERALL LENGTH

250.1"

266.1"

OVERALL WIDTH

81.9"

81.9"

OVERALL HEIGHT

80.9"

80.7"

CARGO BED INSIDE LENGTH (AT FLOOR)

82.2"

98.2”

INSIDE HEIGHT (BOX)

21"

21"

INSIDE WIDTH (BETWEEN WHEELHOUSING)

51.9"

50.6"

WALL TO WALL

71.4"

71.4"

CARGO BOX VOLUME

69.6 cu.ft

83.5 cu.ft

COLORS

FEATURE HIGHLIGHTS

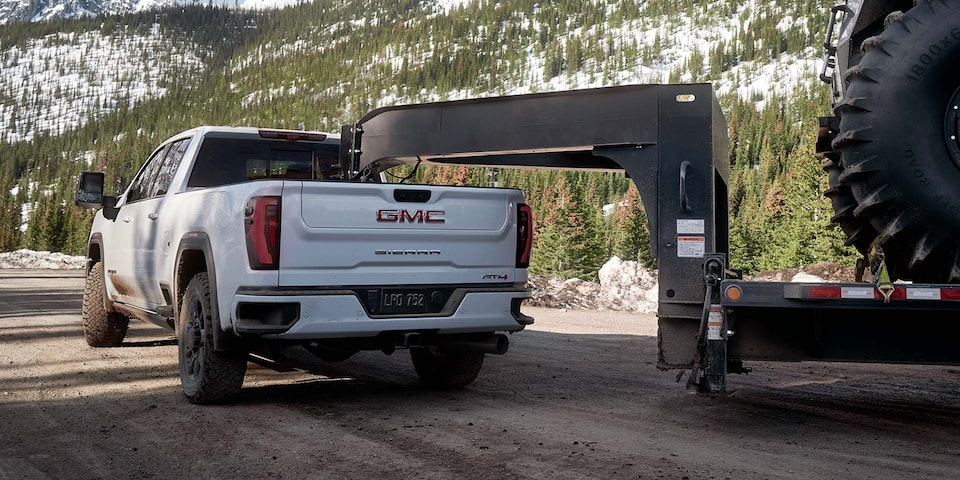

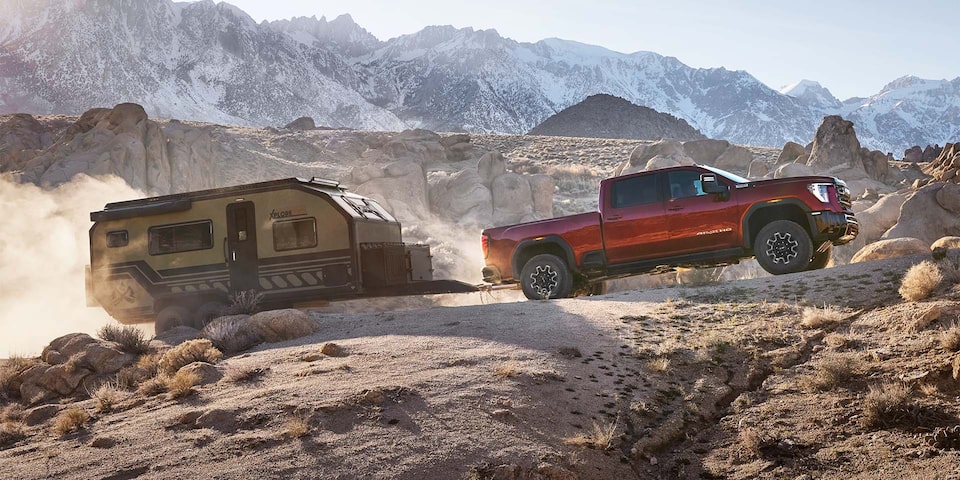

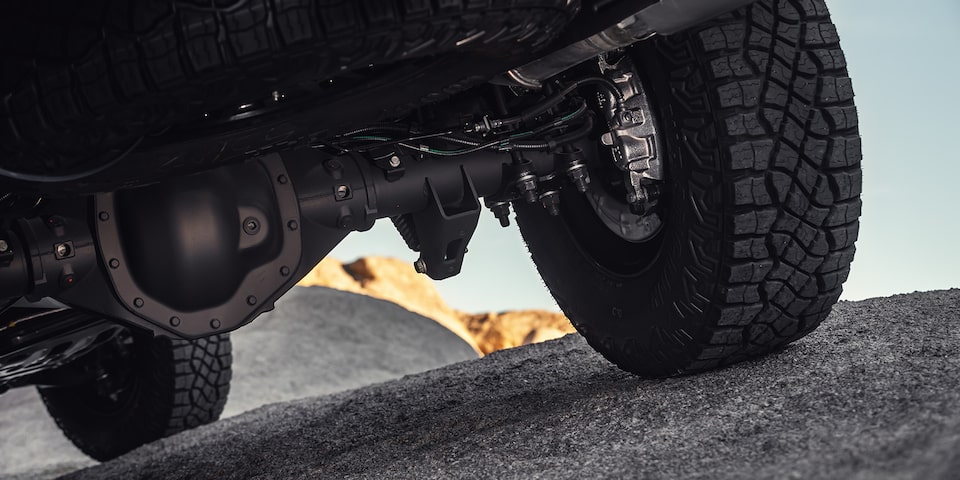

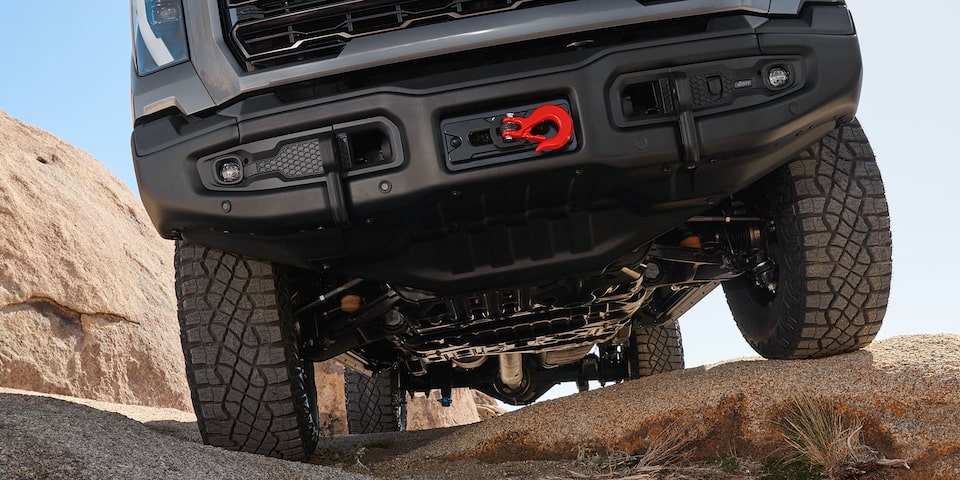

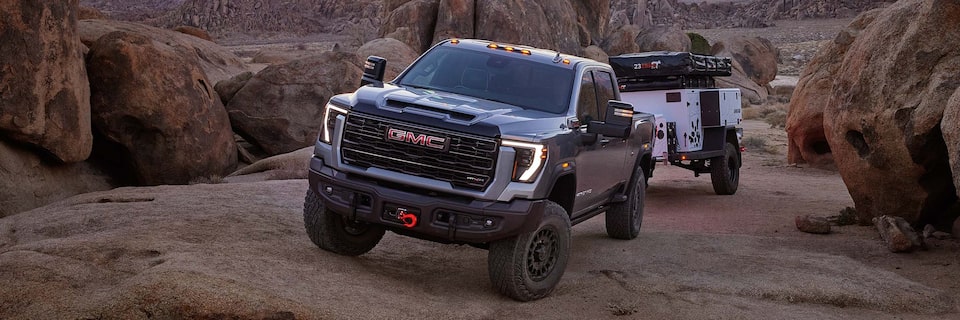

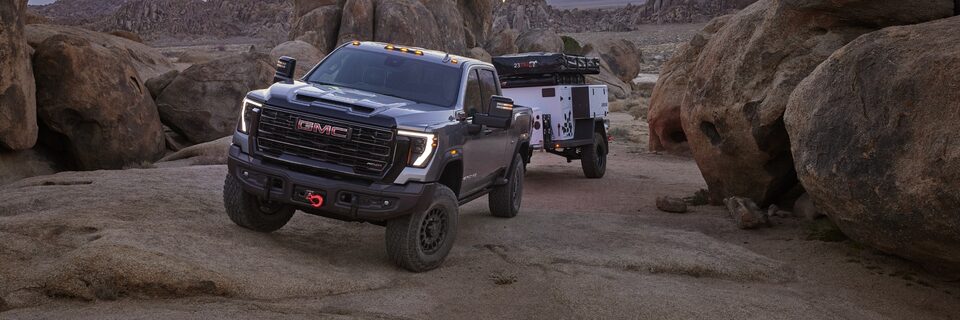

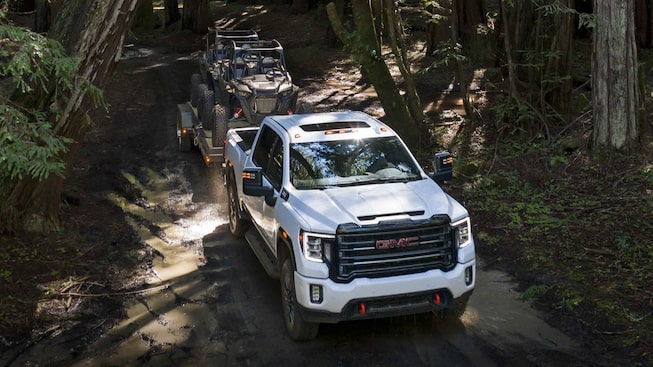

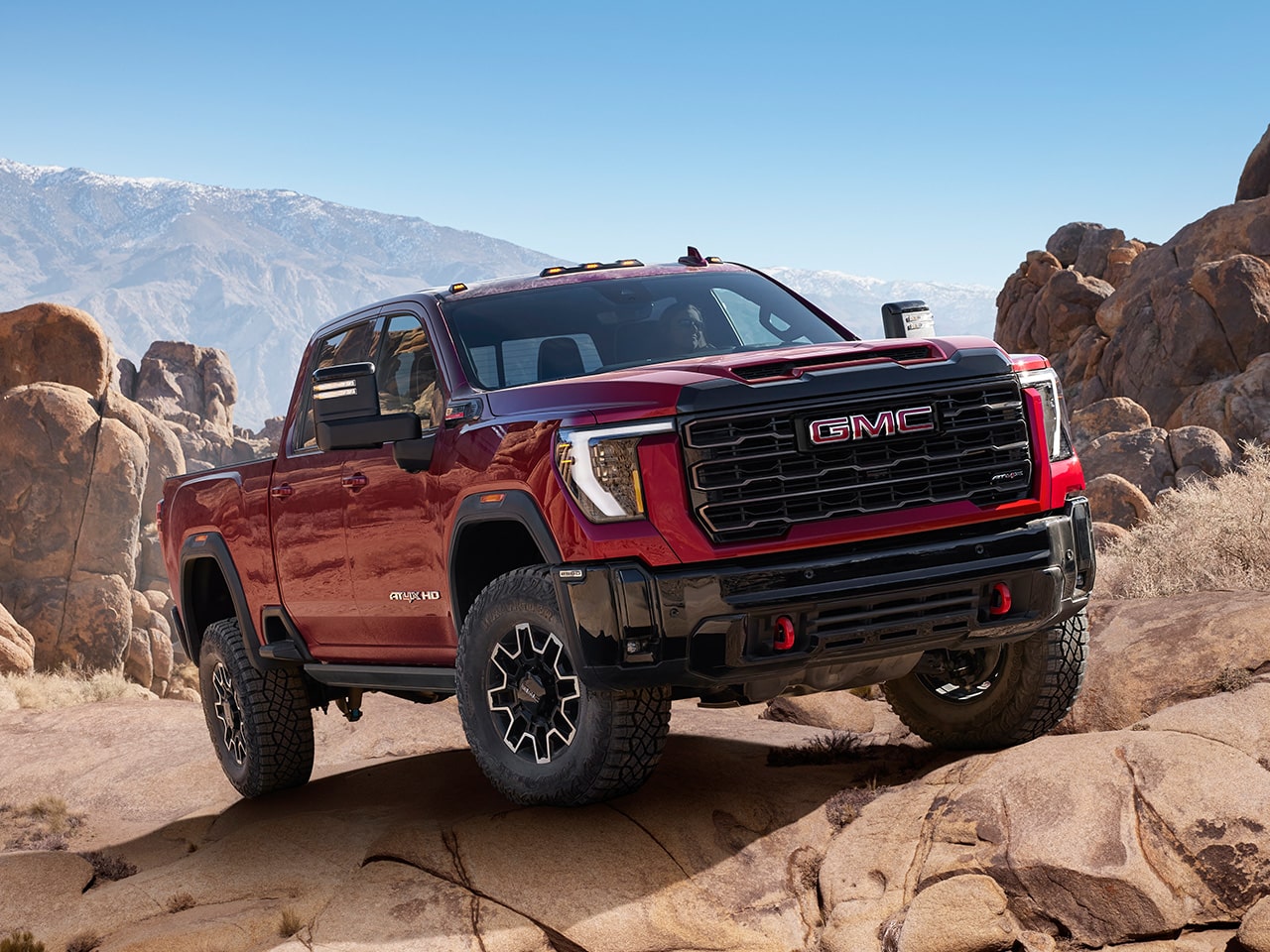

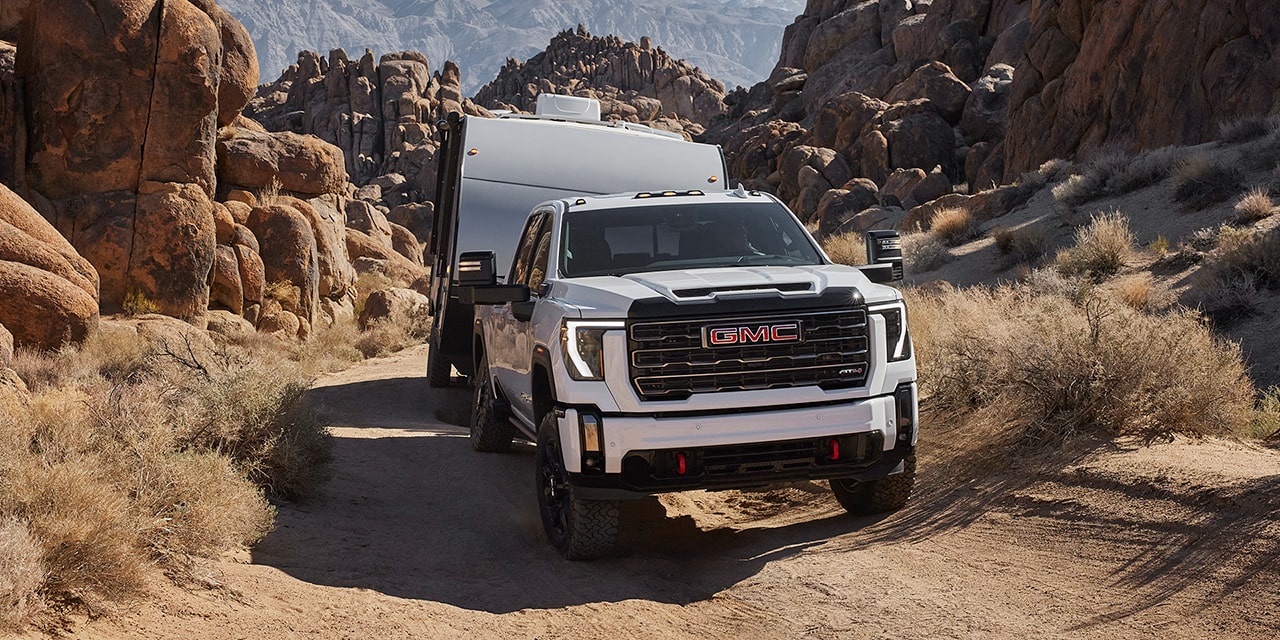

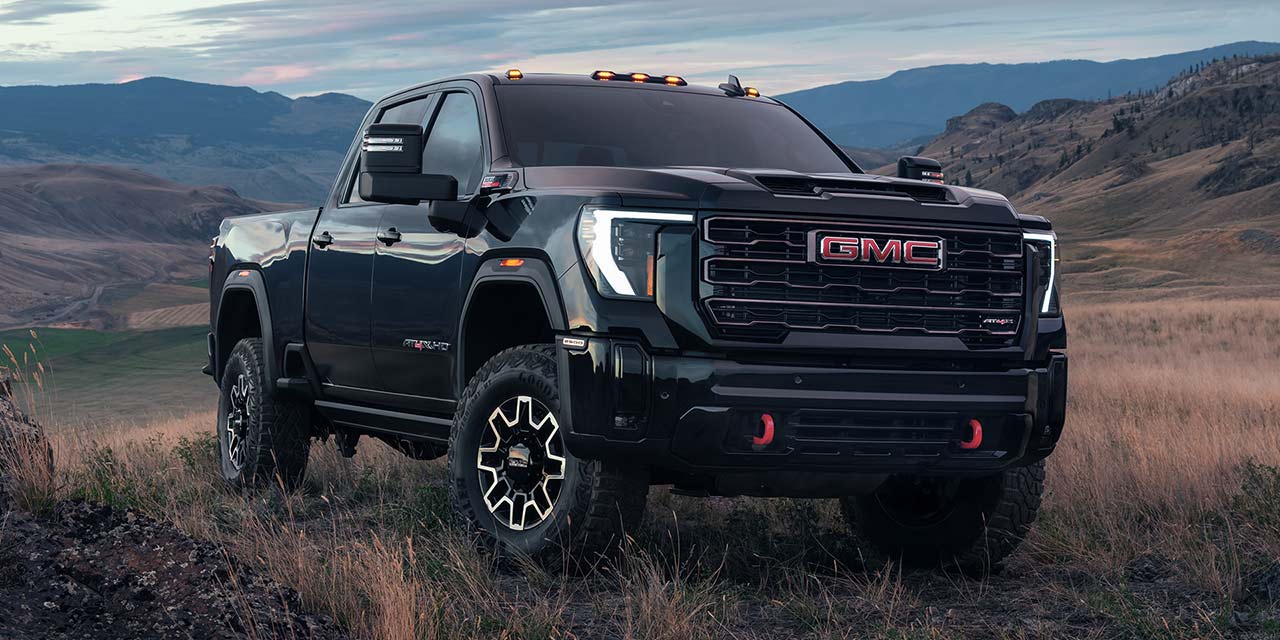

OFF-ROAD WITHOUT COMPROMISE

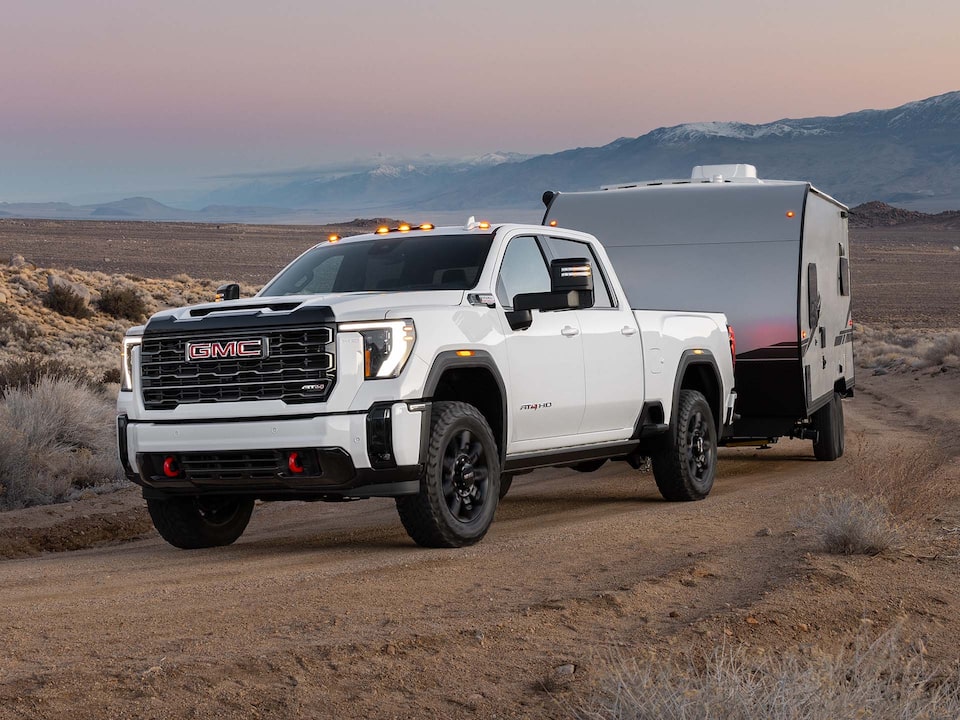

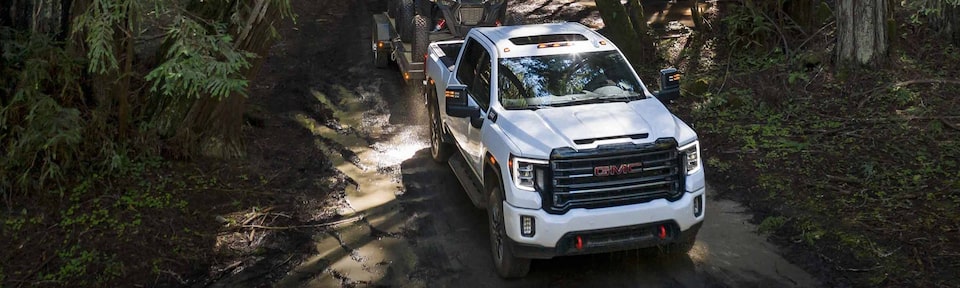

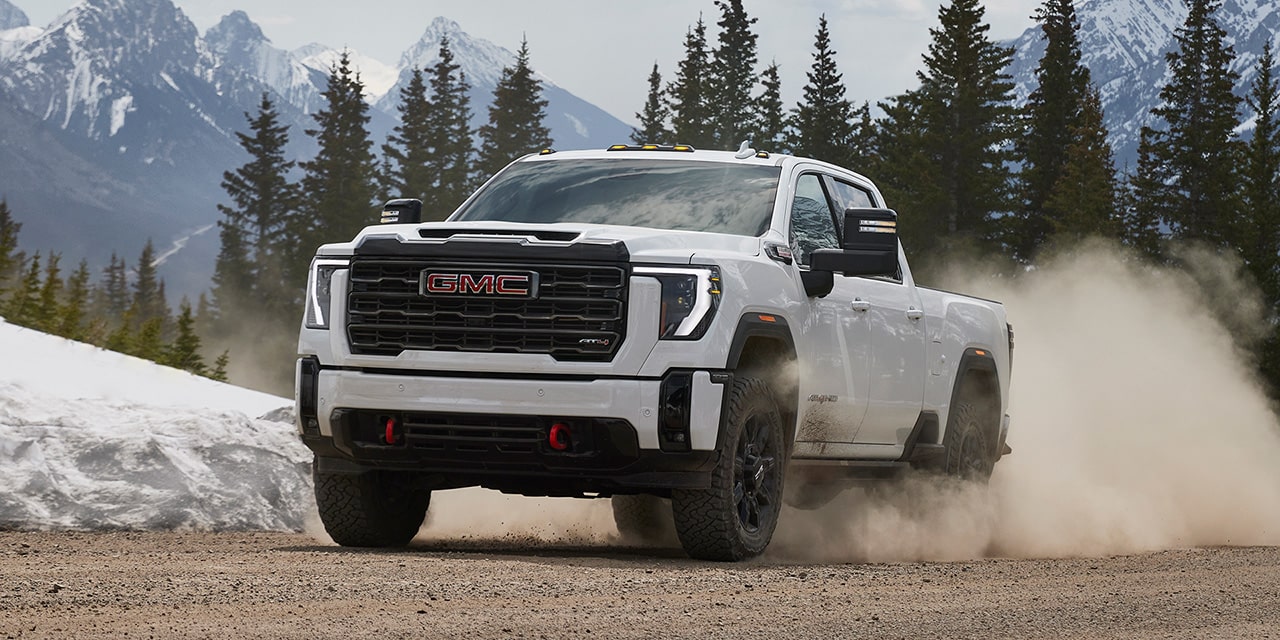

Built to power you and your trailer off-road, the Sierra HD AT4 tows up to 21,300 lbs.

MORE CAPABILITY FEATURES

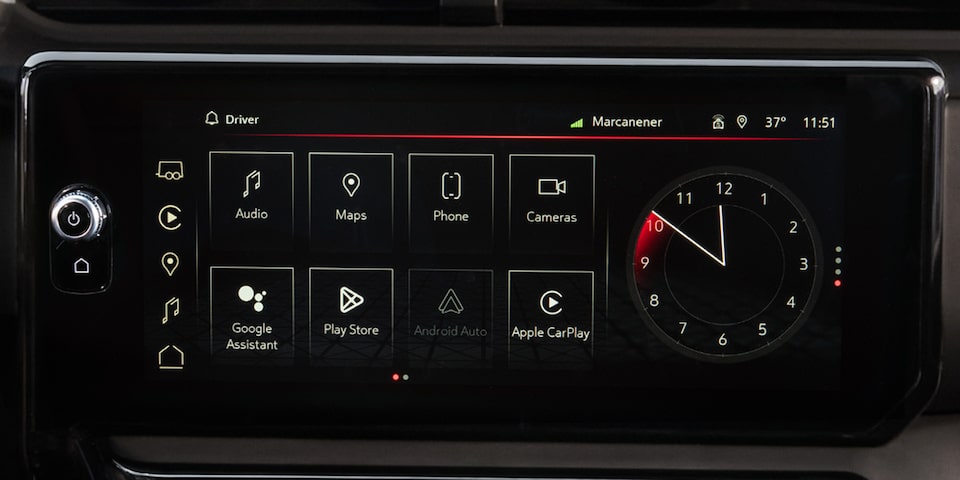

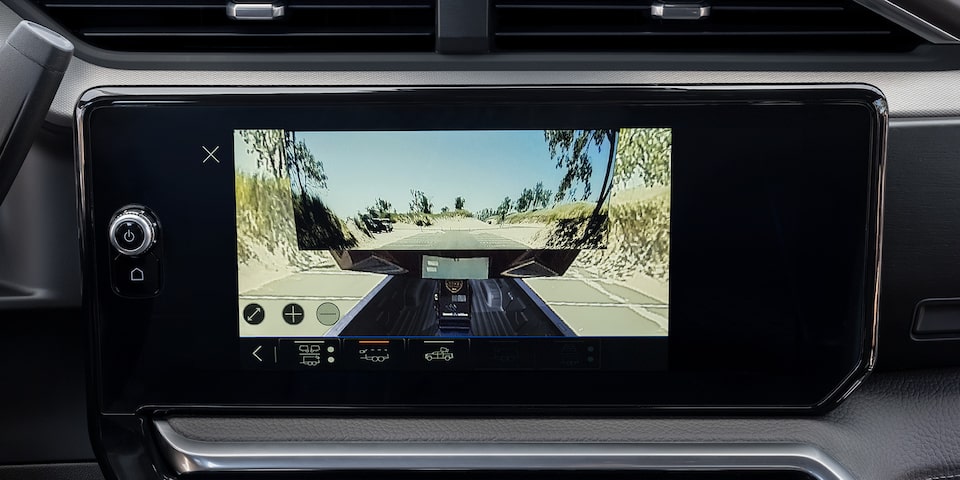

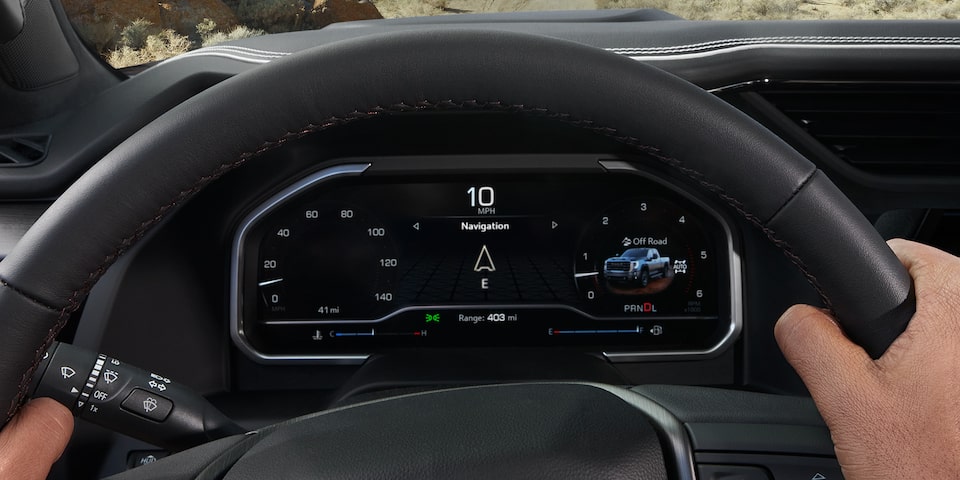

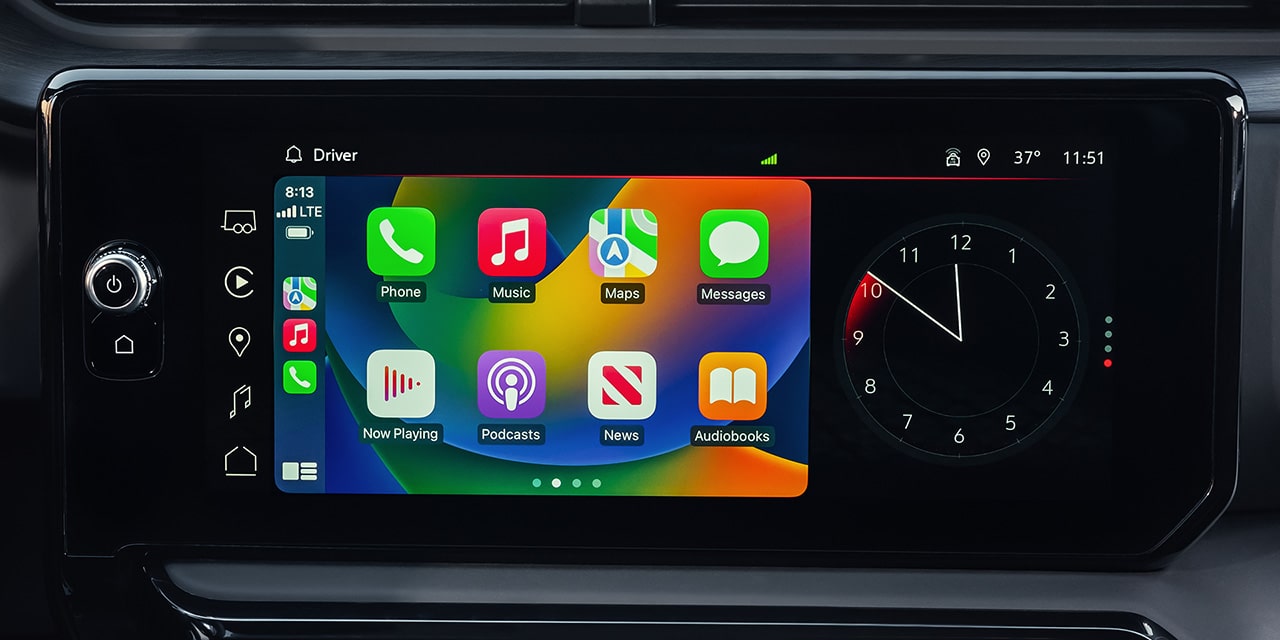

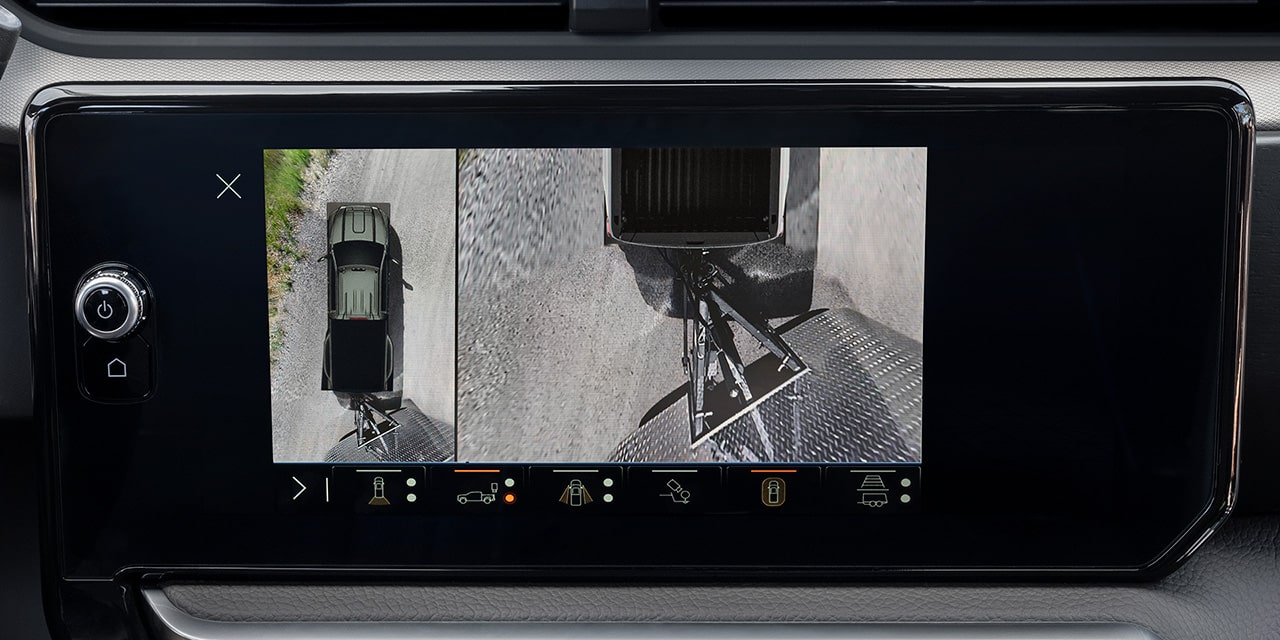

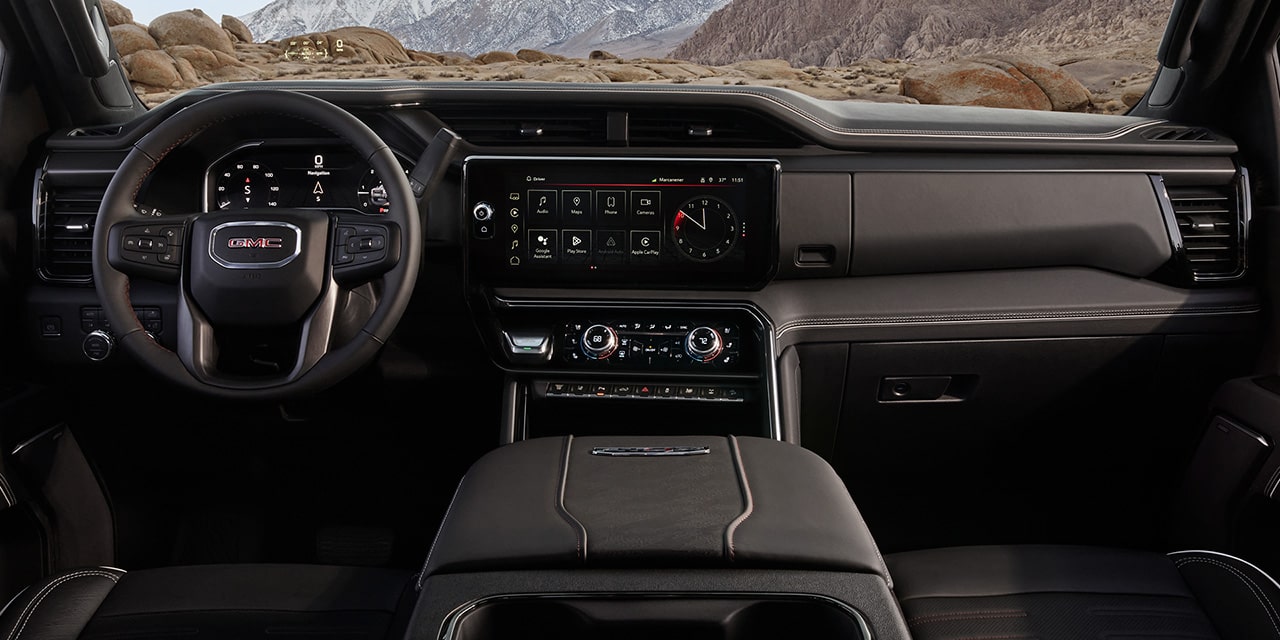

INNOVATIVE TECHNOLOGY

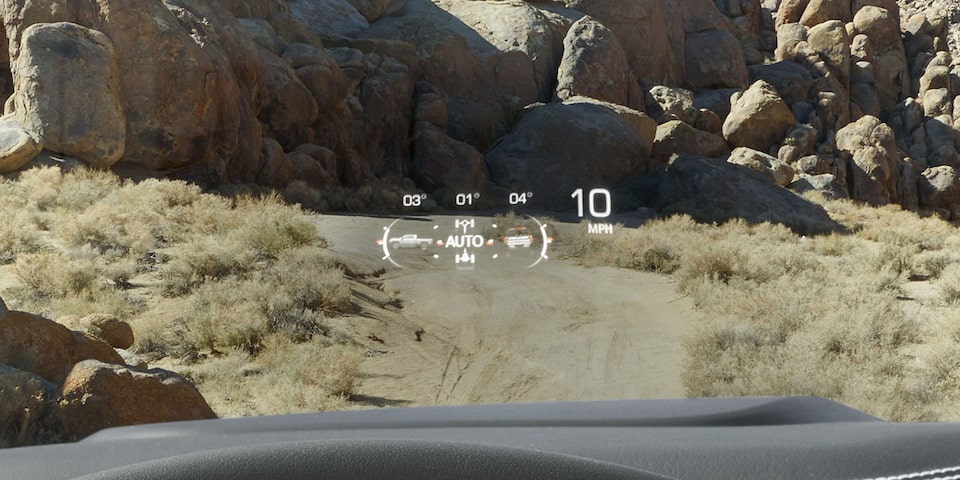

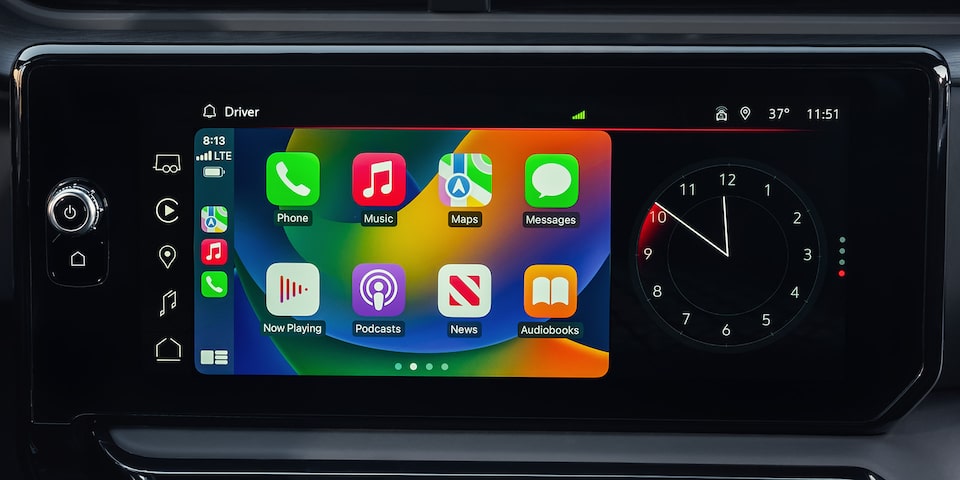

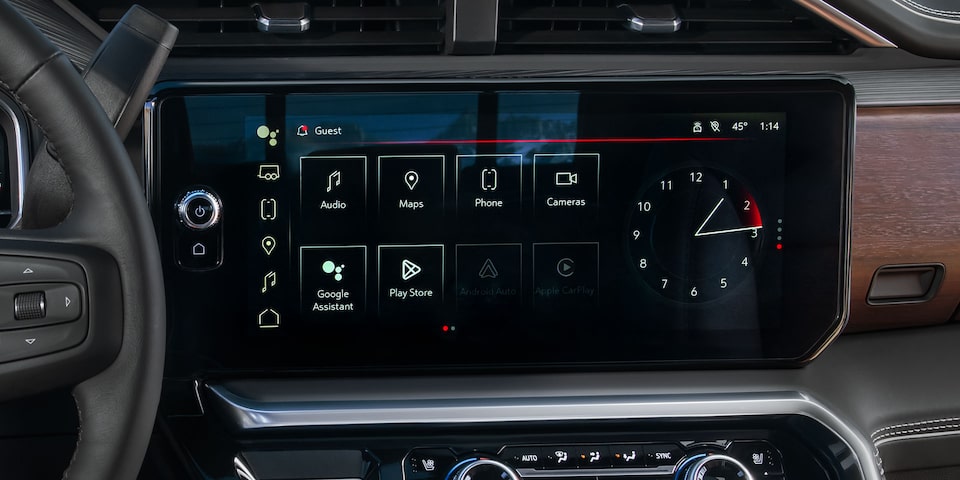

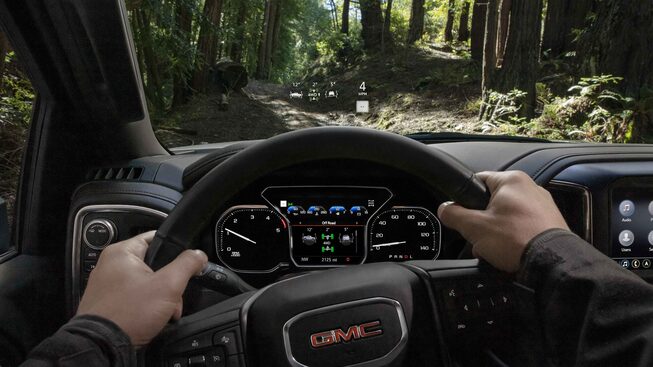

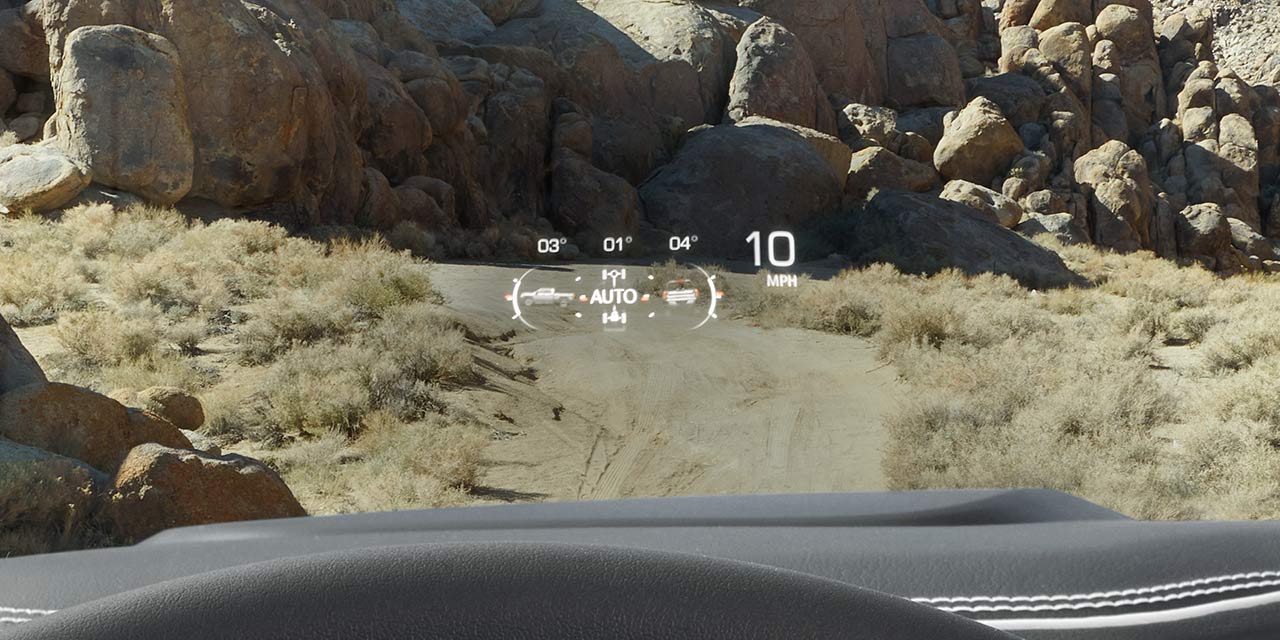

Driver-centric technology such as the available multicolor 15" diagonal Head-Up Display with Off-Road Inclinometer, helps you stay connected and in control.

MORE TECHNOLOGY FEATURES

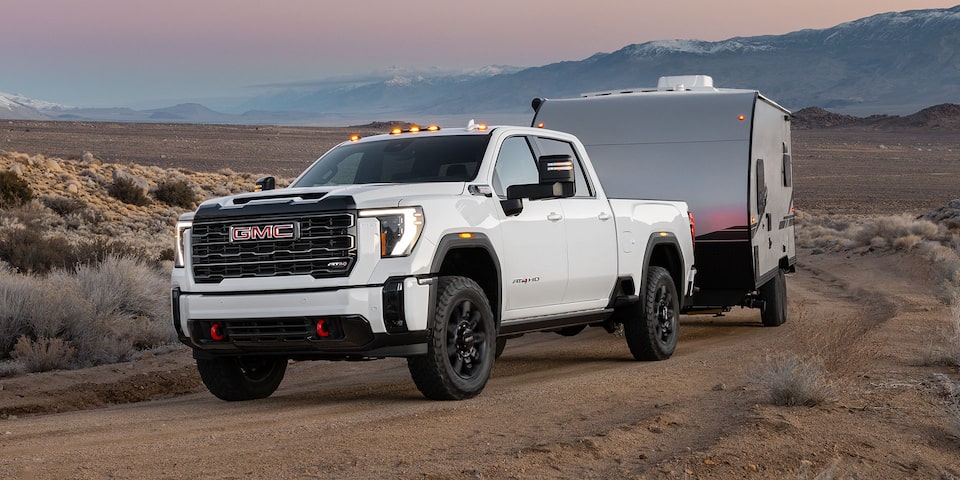

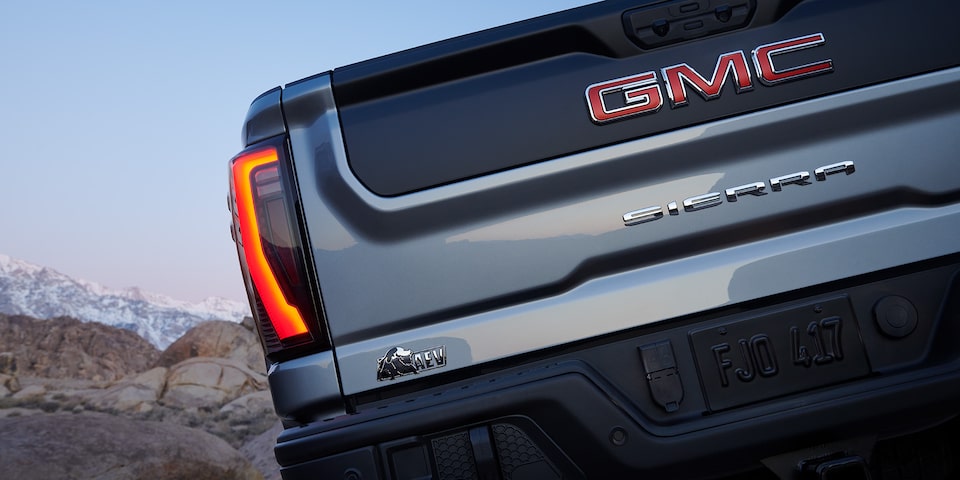

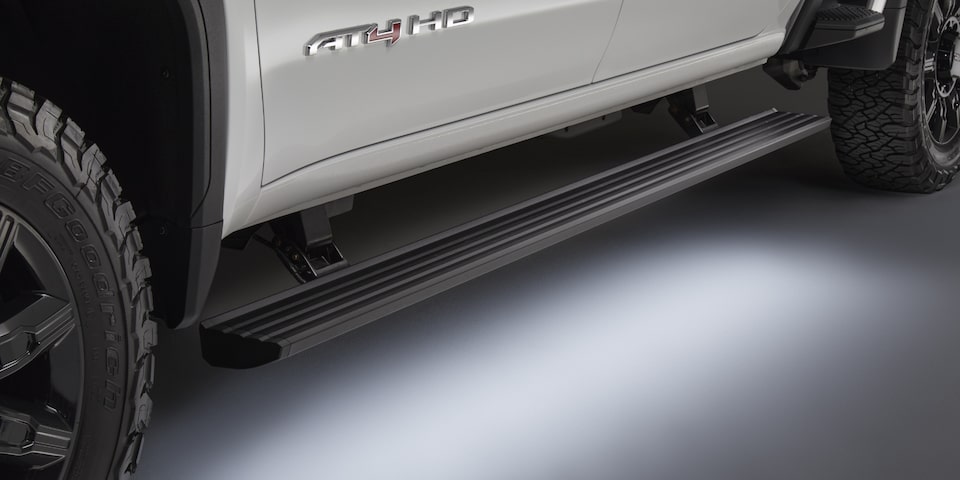

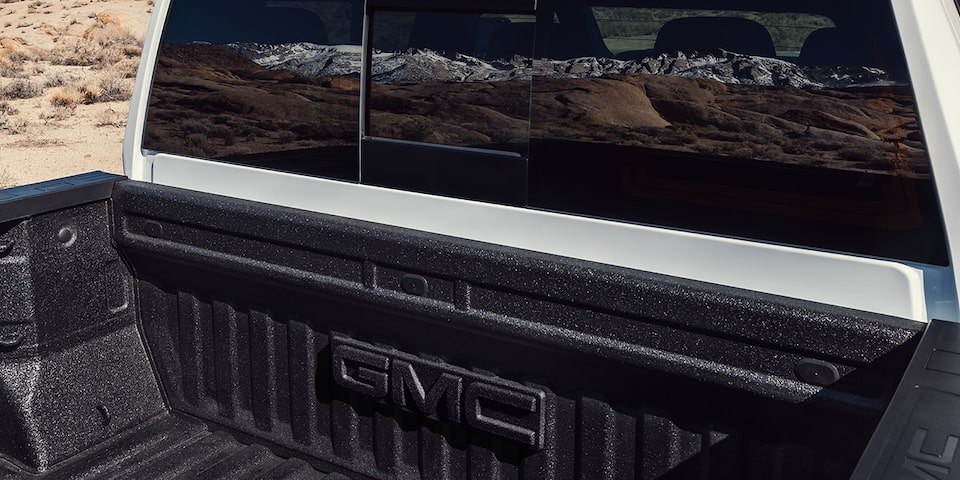

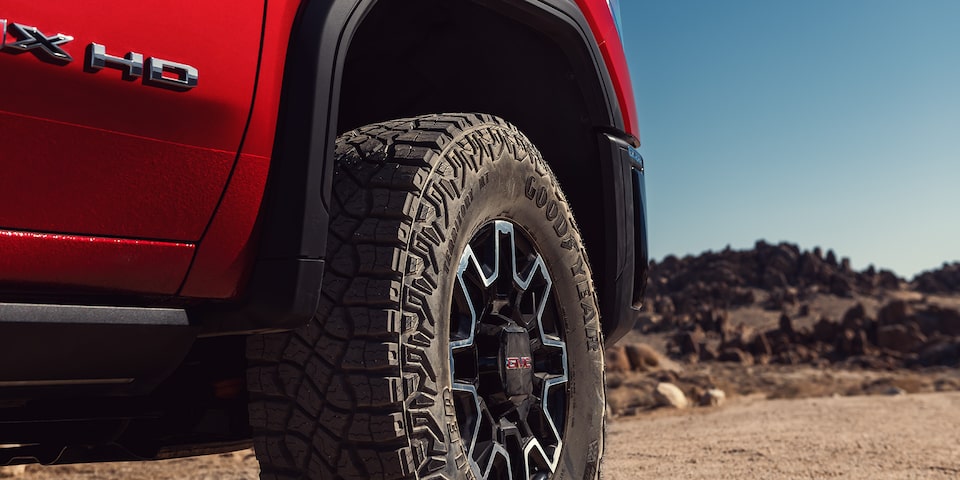

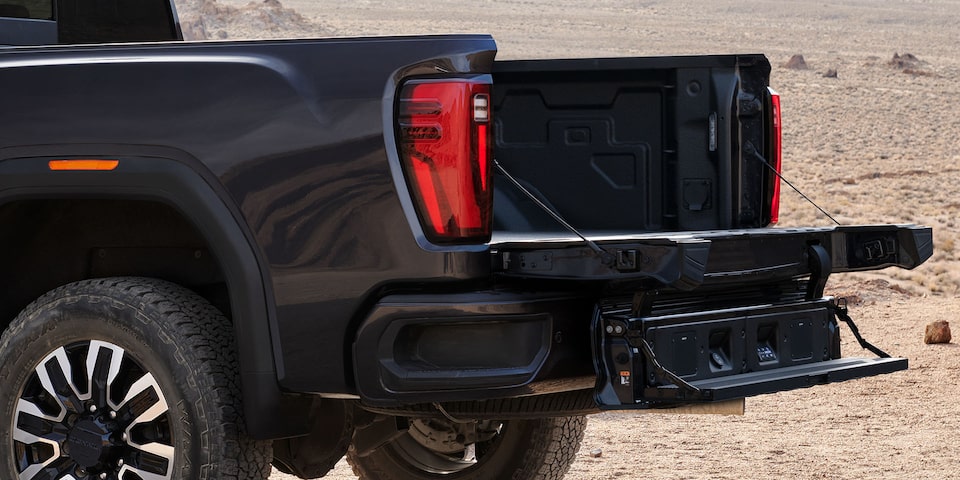

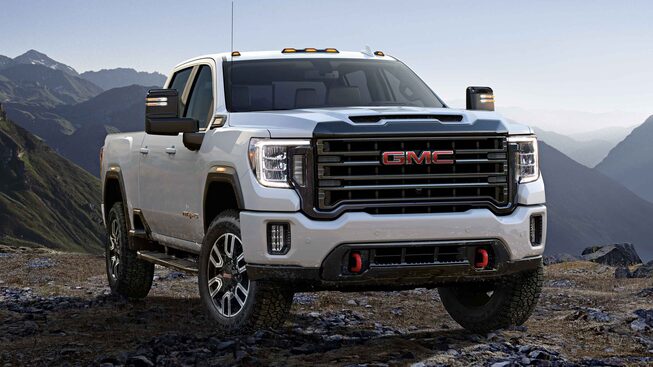

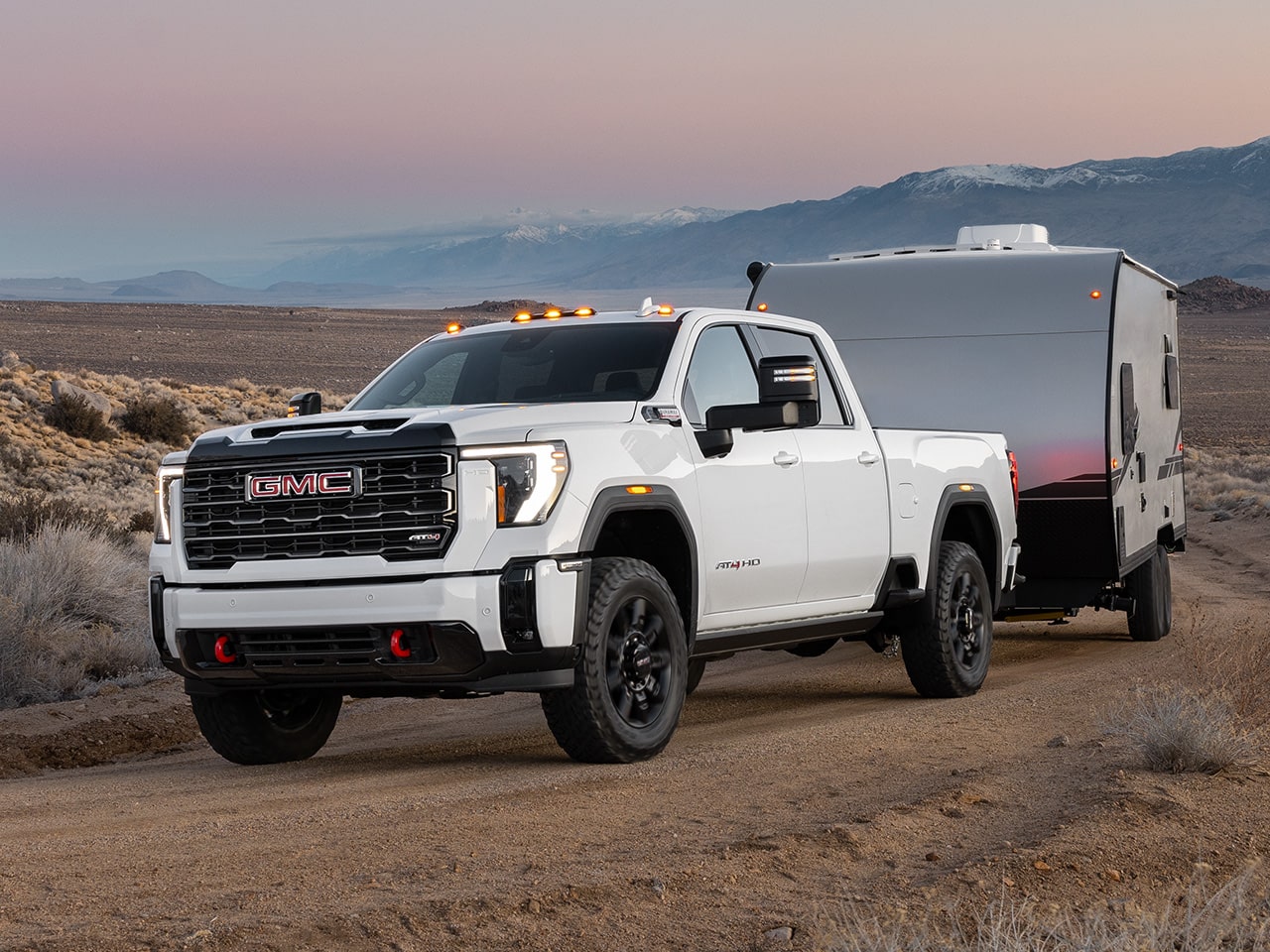

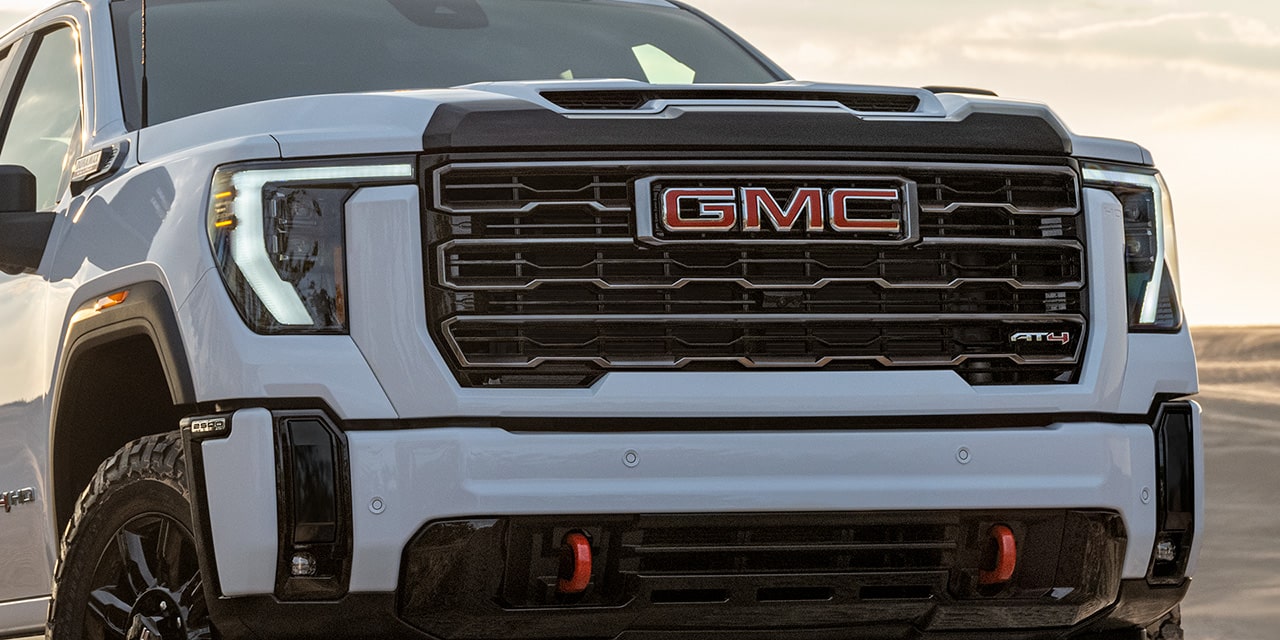

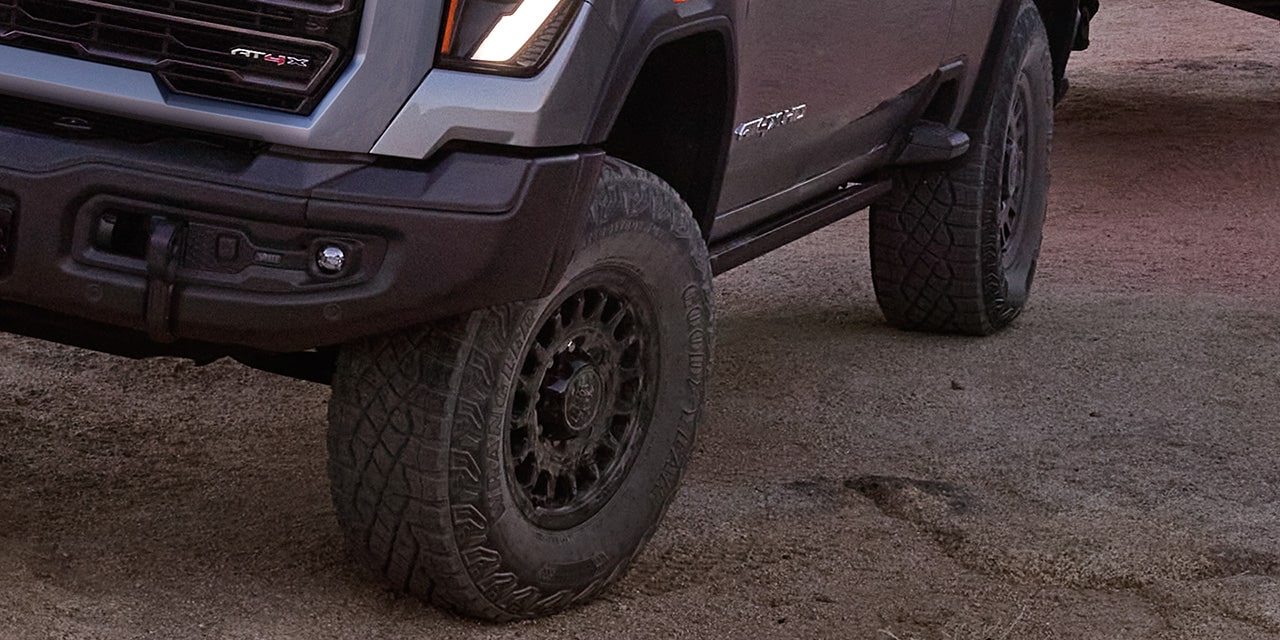

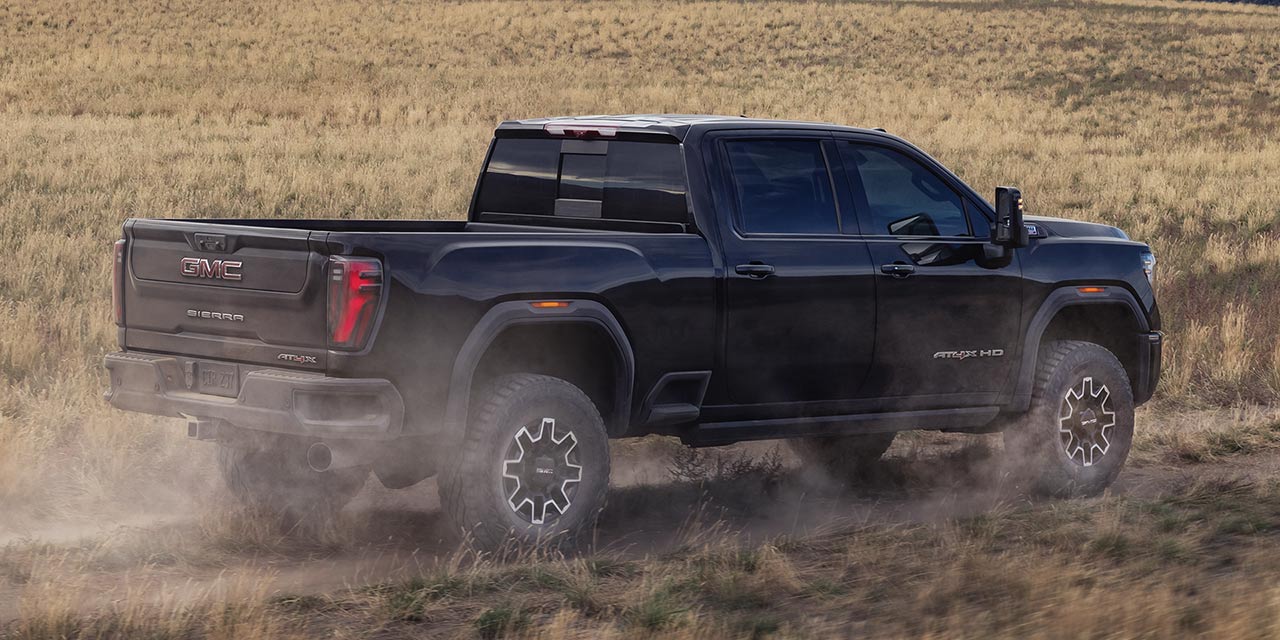

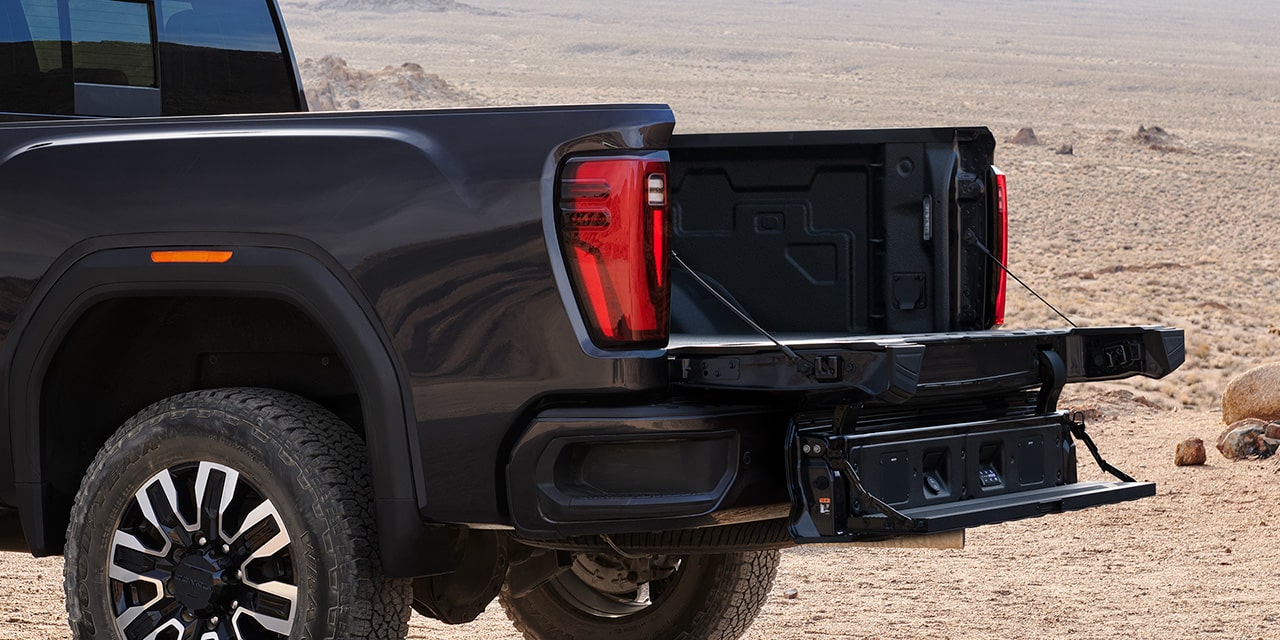

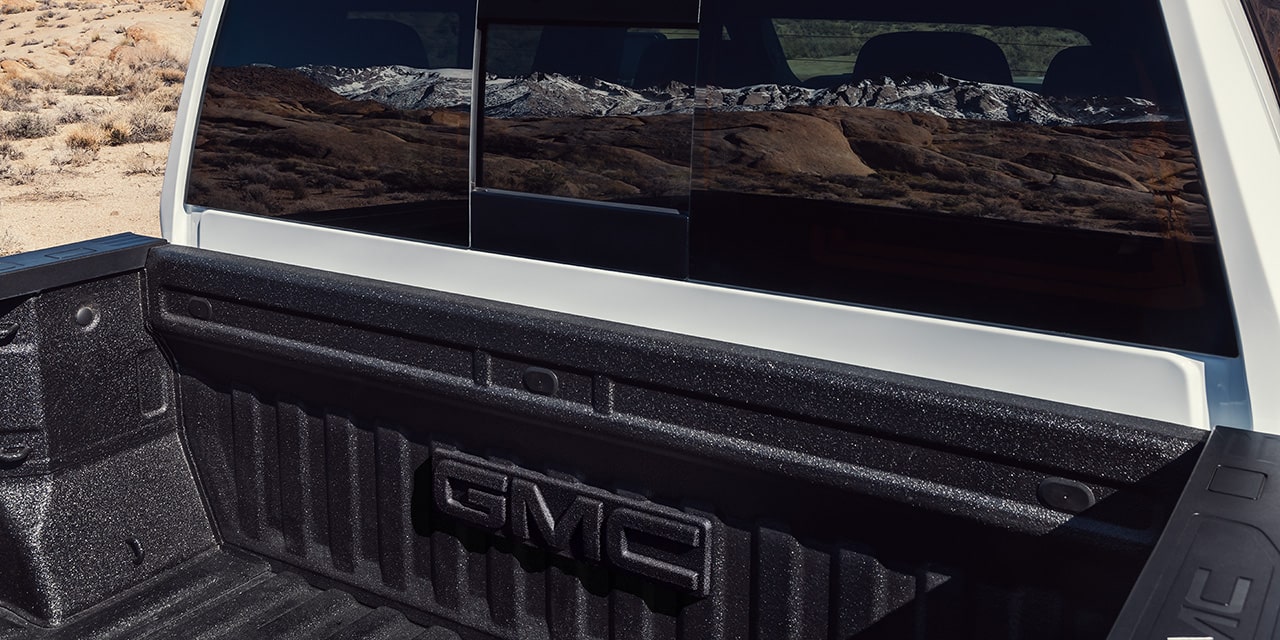

DISTINCTIVE BOLD EXTERIOR

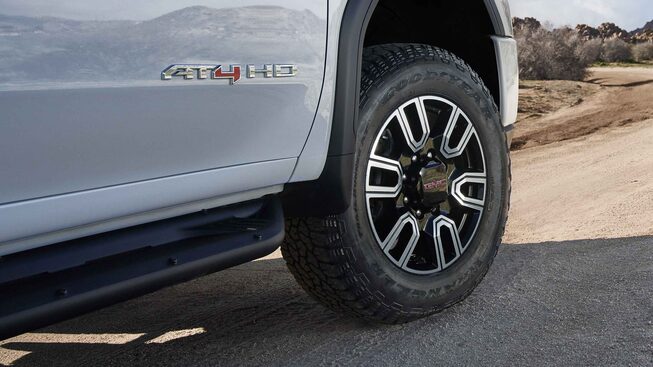

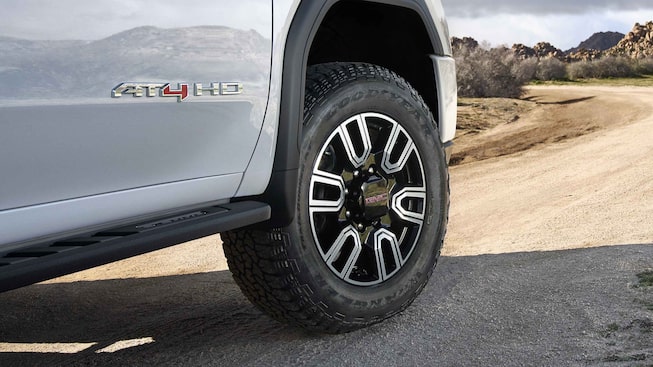

Exclusive finishes and modern details highlight the rugged exterior that features best-in-class heavy-duty Cargo Bed Volume.

MORE EXTERIOR FEATURES

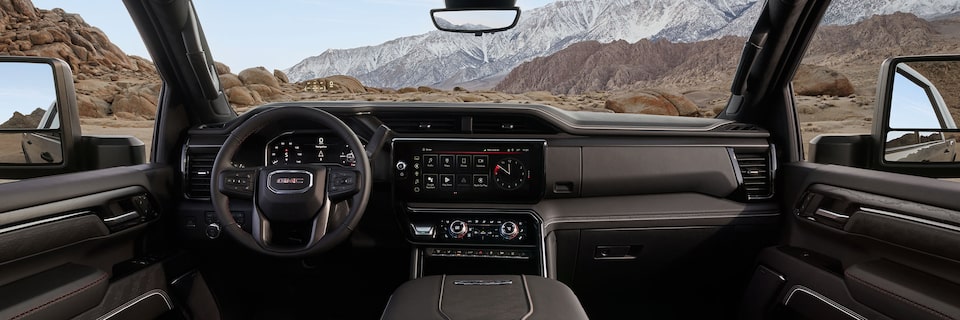

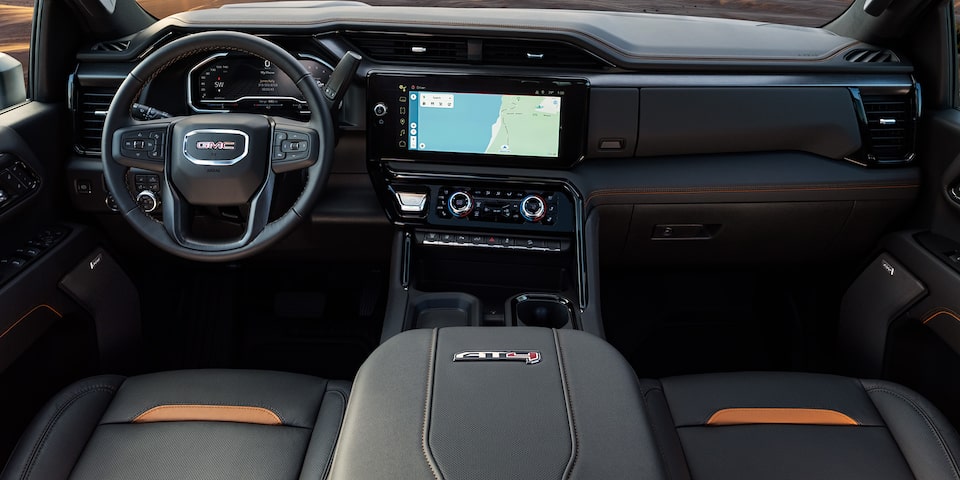

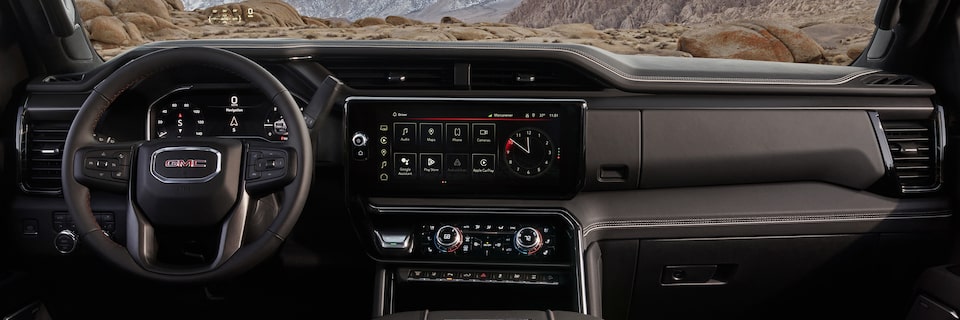

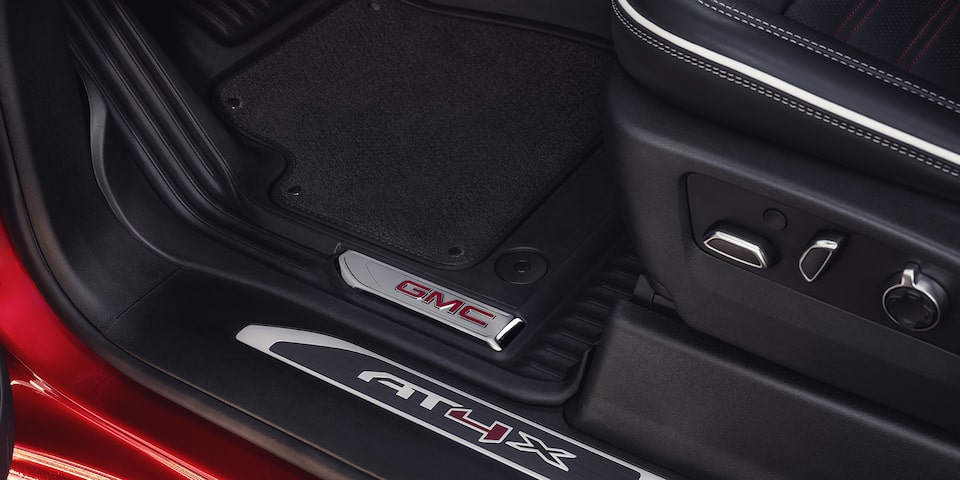

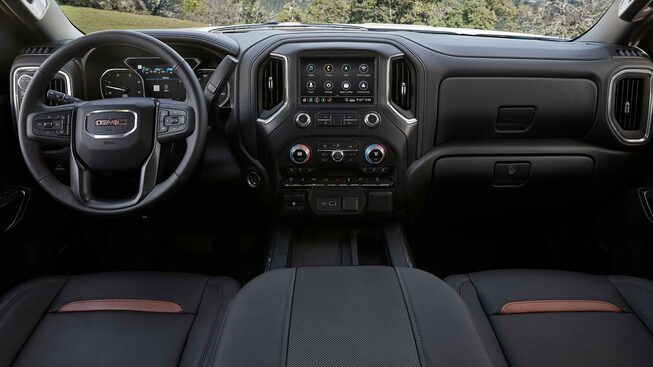

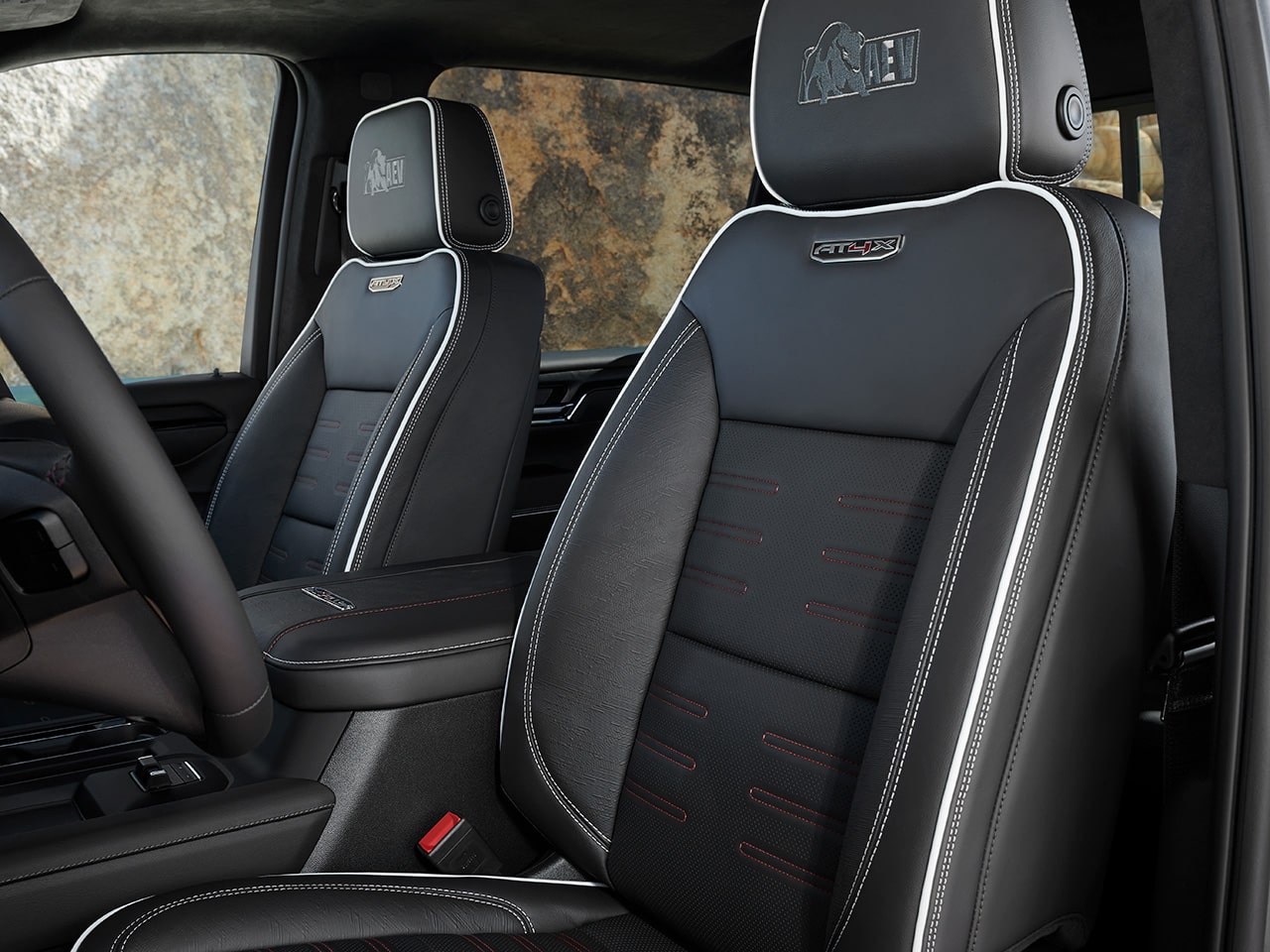

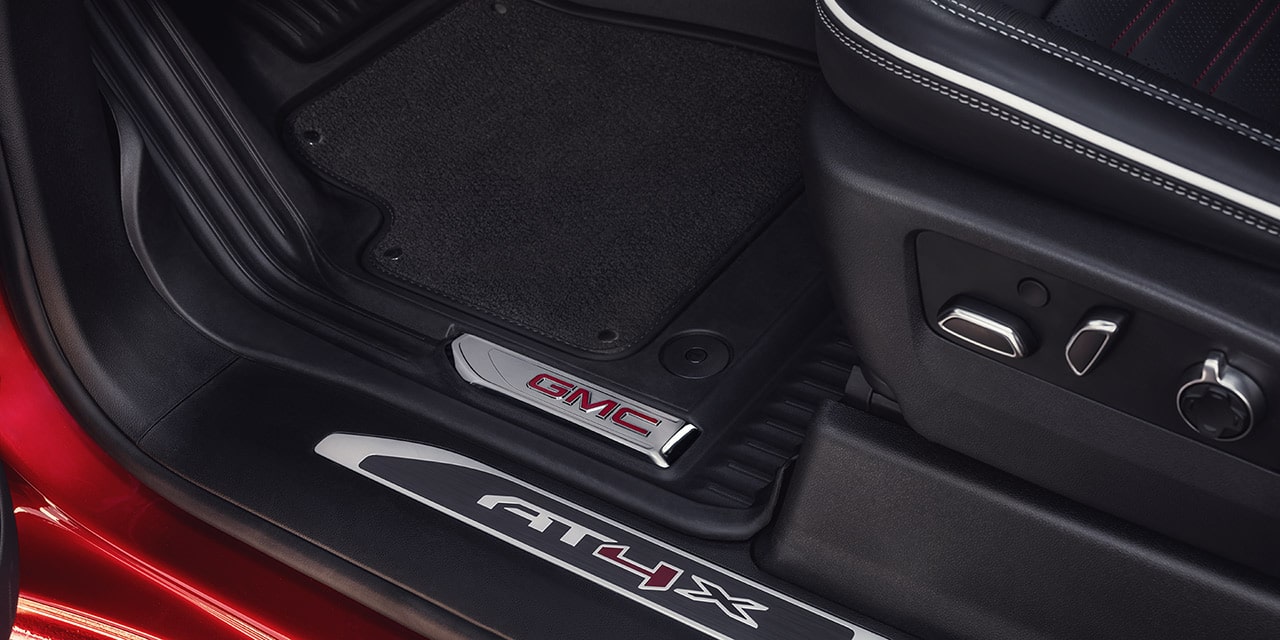

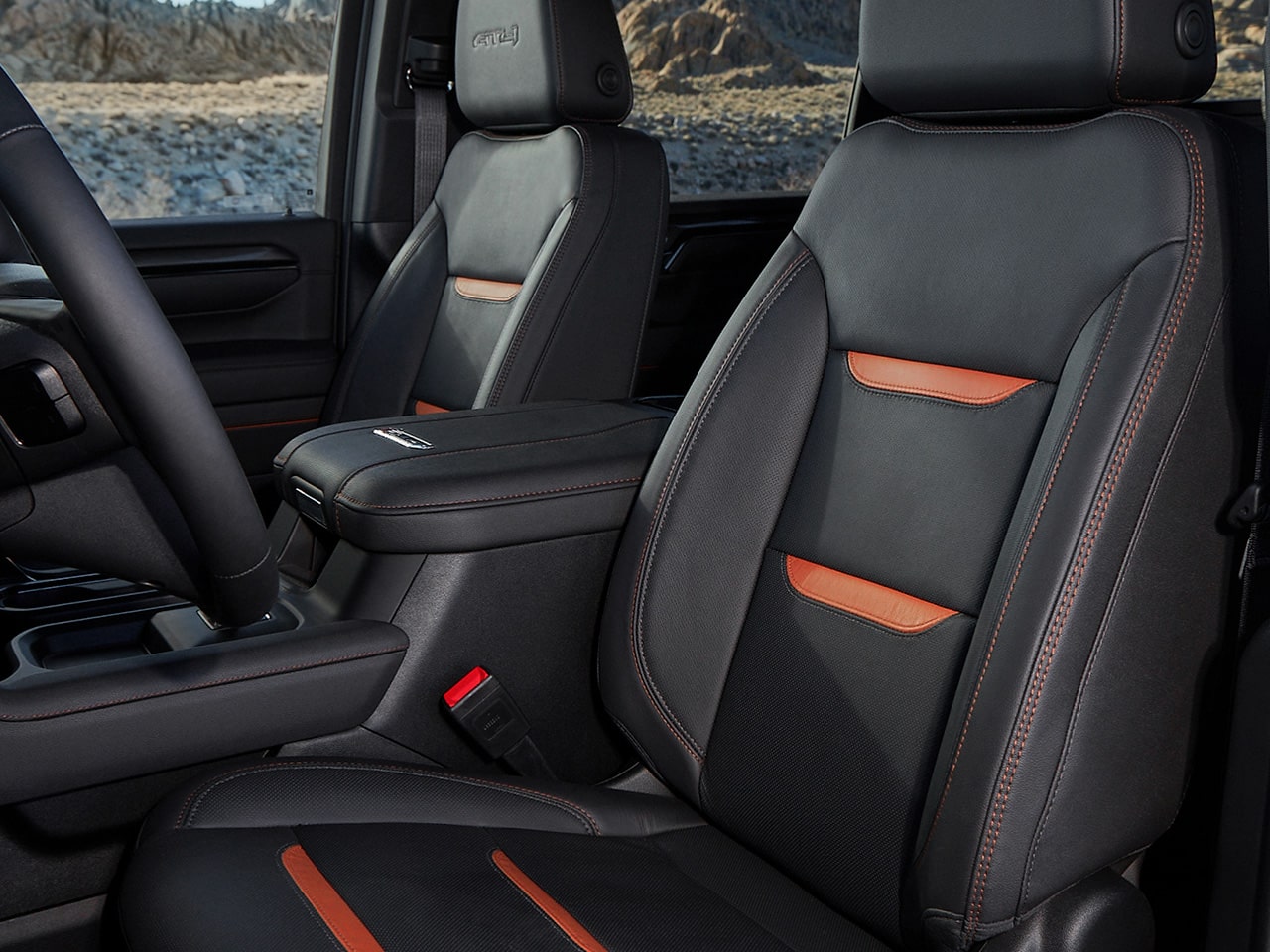

EXCLUSIVE ADVANCED INTERIOR

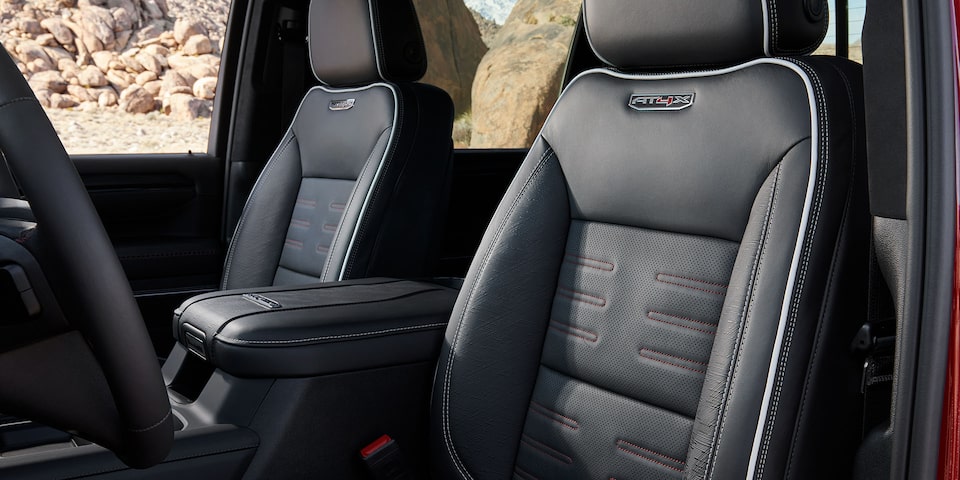

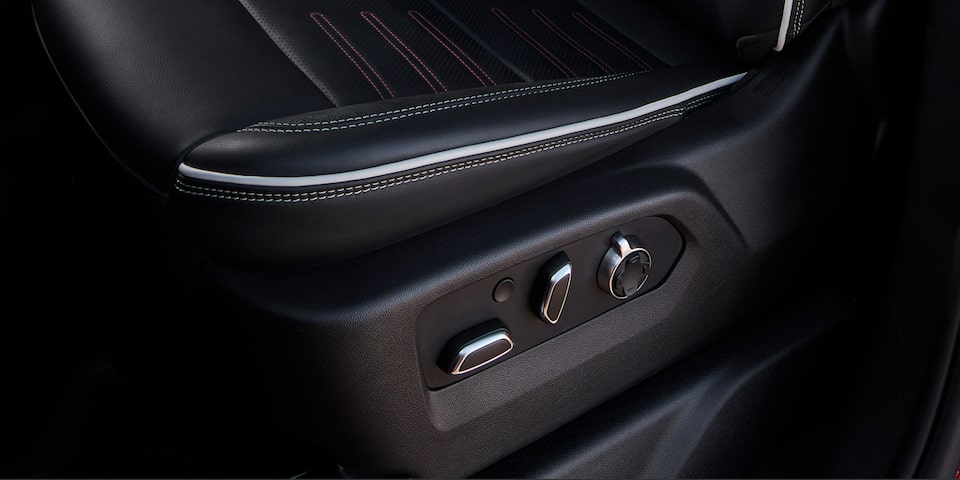

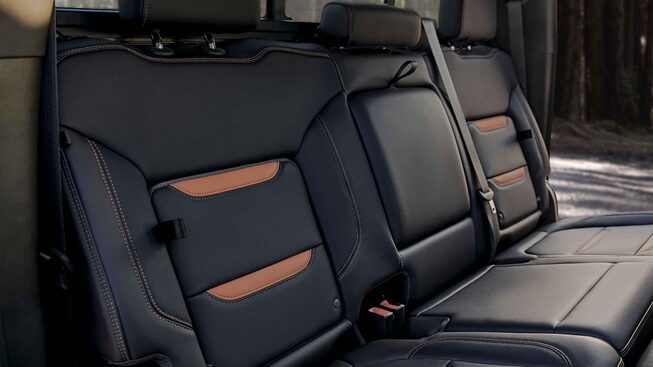

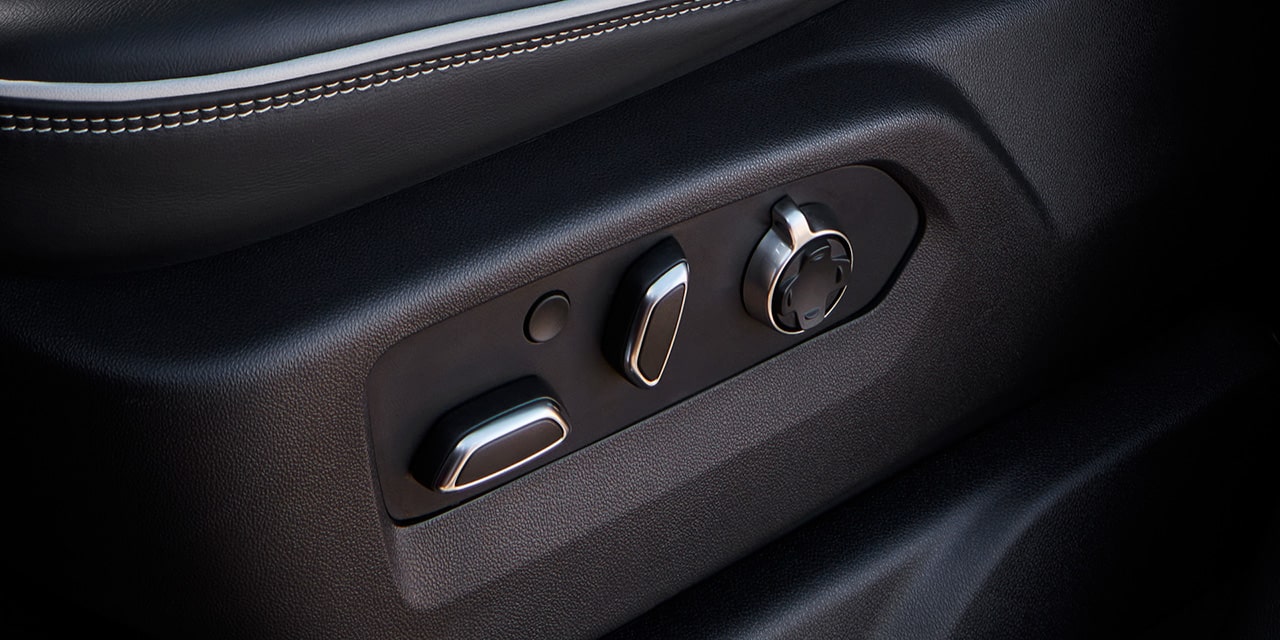

The comfortable cabin features durable seating in Jet Black with Kalahari accents and advanced technology to help with off-roading.

MORE INTERIOR FEATURES
