model details

TOW UP TO

TOW UP TO

31,180 LBS

31,180 LBS


MAX PAYLOAD UP TO

MAX PAYLOAD UP TO

6,610 LBS

6,610 LBS


MAX TORQUE UP TO

MAX TORQUE UP TO

910 LB-FT

910 LB-FT


STARTING AT

STARTING AT

$63,700

$63,700

2500 VS 3500

2500 DENALI

  • Maximum conventional trailering capacity of 18,500 lbs
  • Maximum fifth-wheel/gooseneck rating of 18,500 lbs
  • Maximum payload of 3,862 lbs

3500 DENALI

  • Maximum conventional trailering capacity of 20,000 lbs

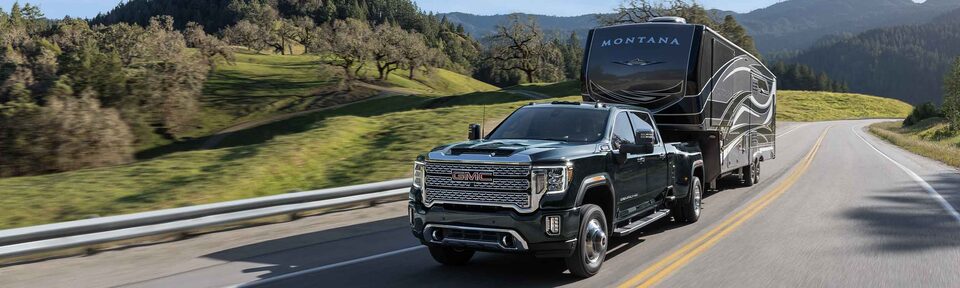

  • Maximum fifth-wheel/gooseneck rating of 31,180 lbs
  • Maximum payload of 6,610 lbs

SPEC HIGHLIGHTS

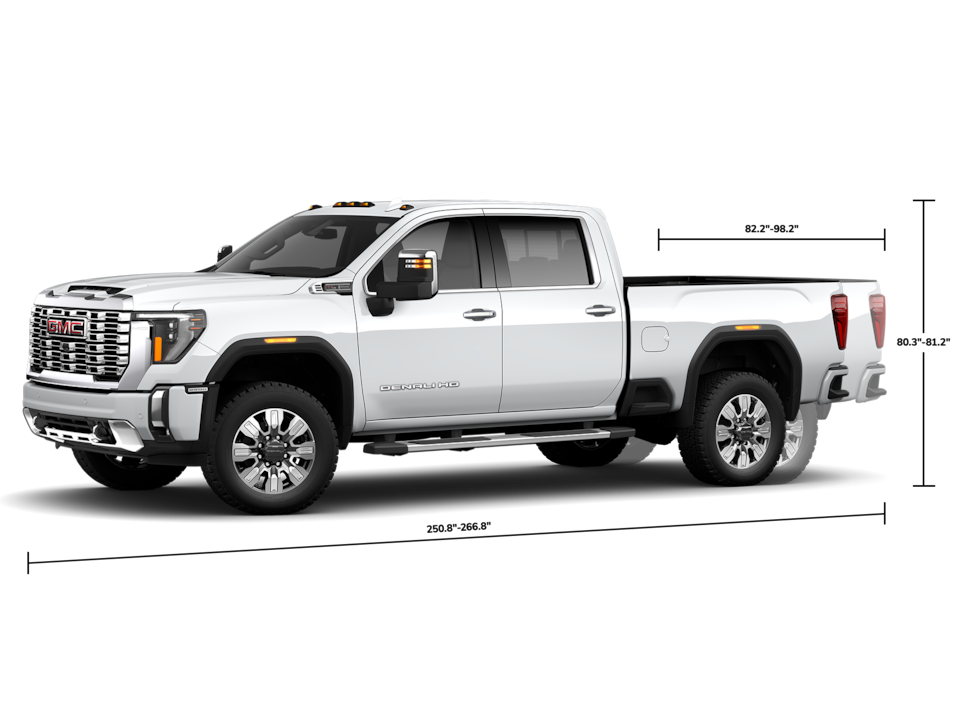

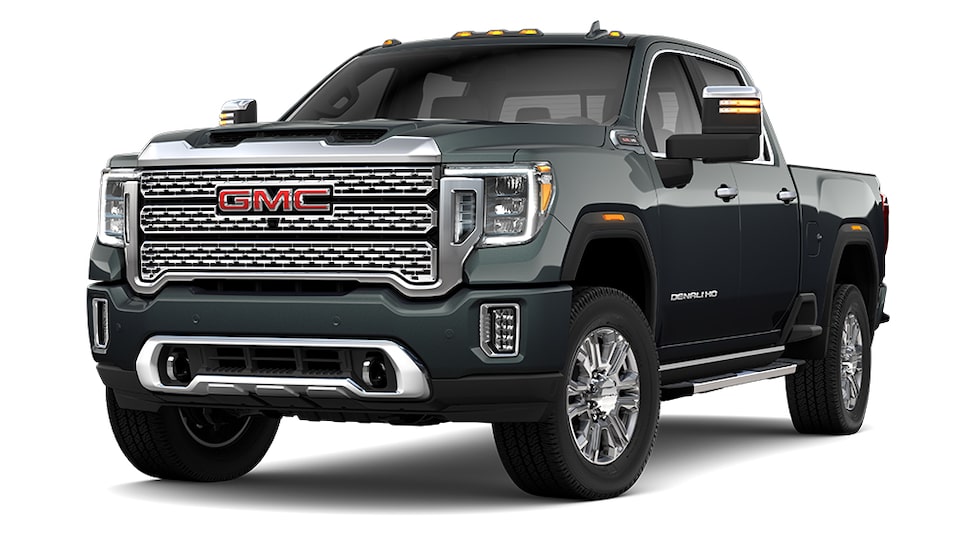

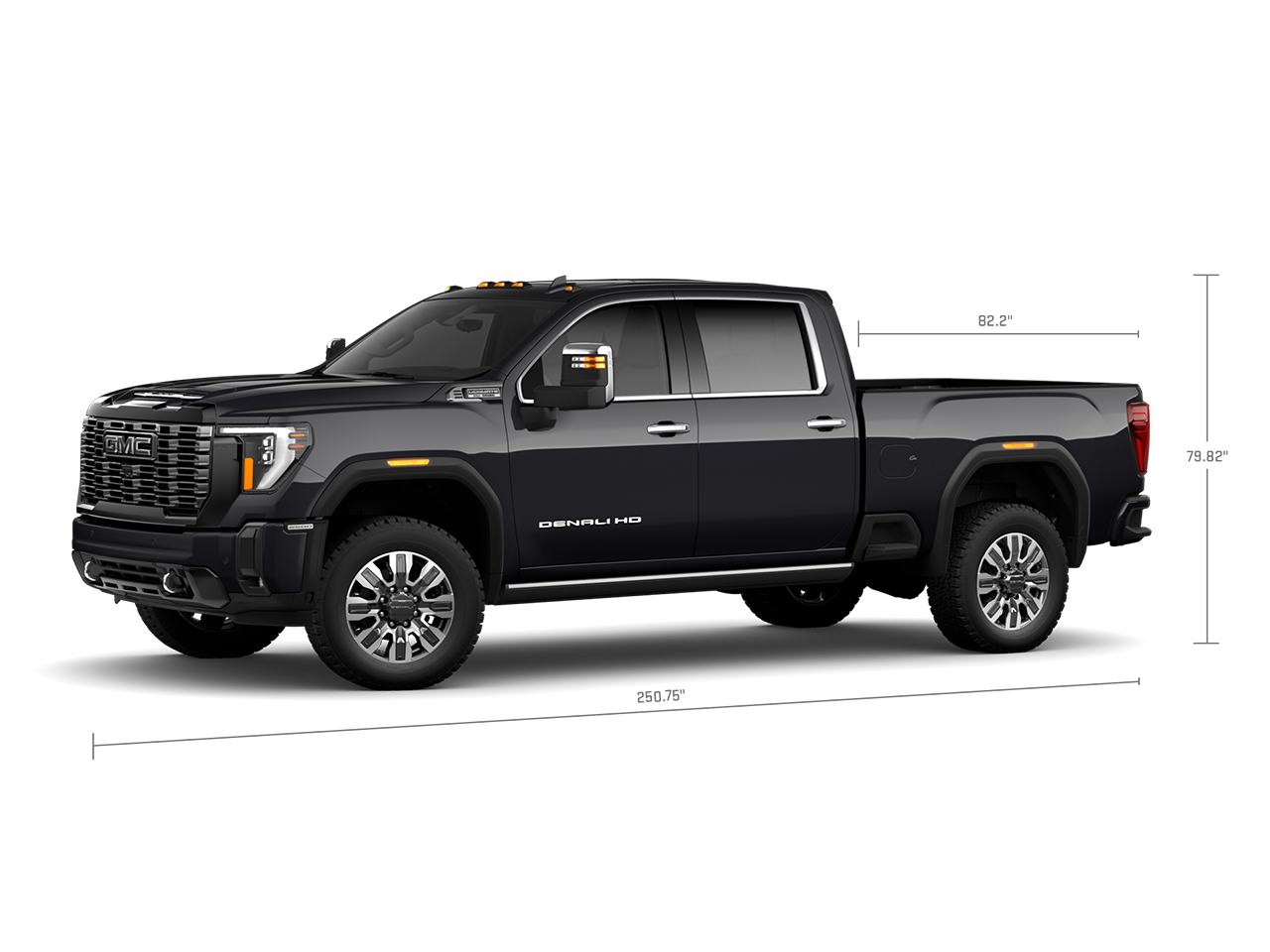

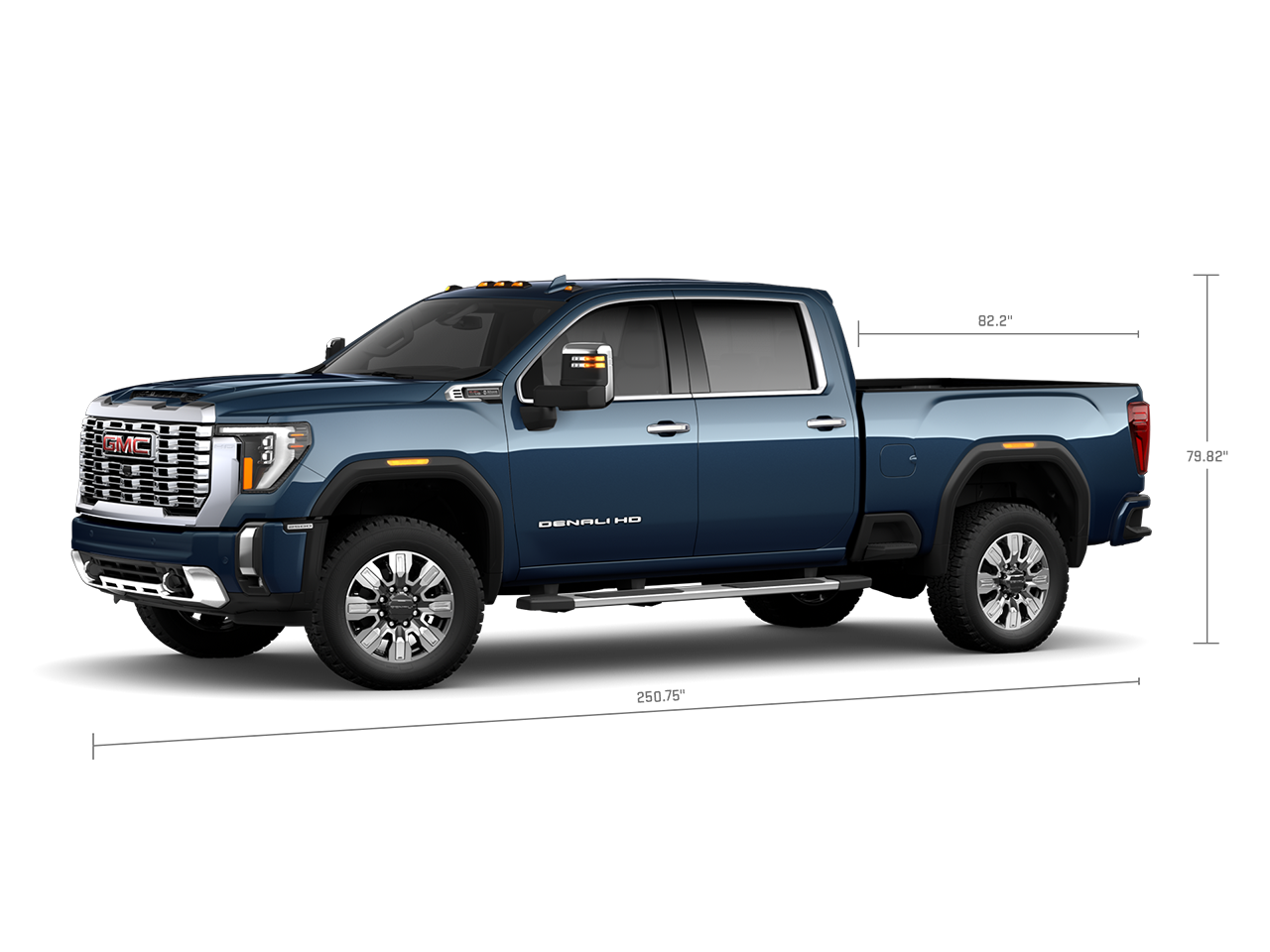

2500 DENALI

Next Generation Sierra 2500 Denali truck comes in 4WD Crew Cab with 6' 9" standard box or available 8' long box.

MAX GCWR

27,500 LBS

WHEELBASE

158.9-172 IN.

FRONT/REAR TREAD WIDTH

68.1/68.3 IN.

MAX GVWR

11,550 LBS

GROUND CLEARANCE

10.1 IN.

CARGO VOLUME

69.6-83.5 CU.FT.

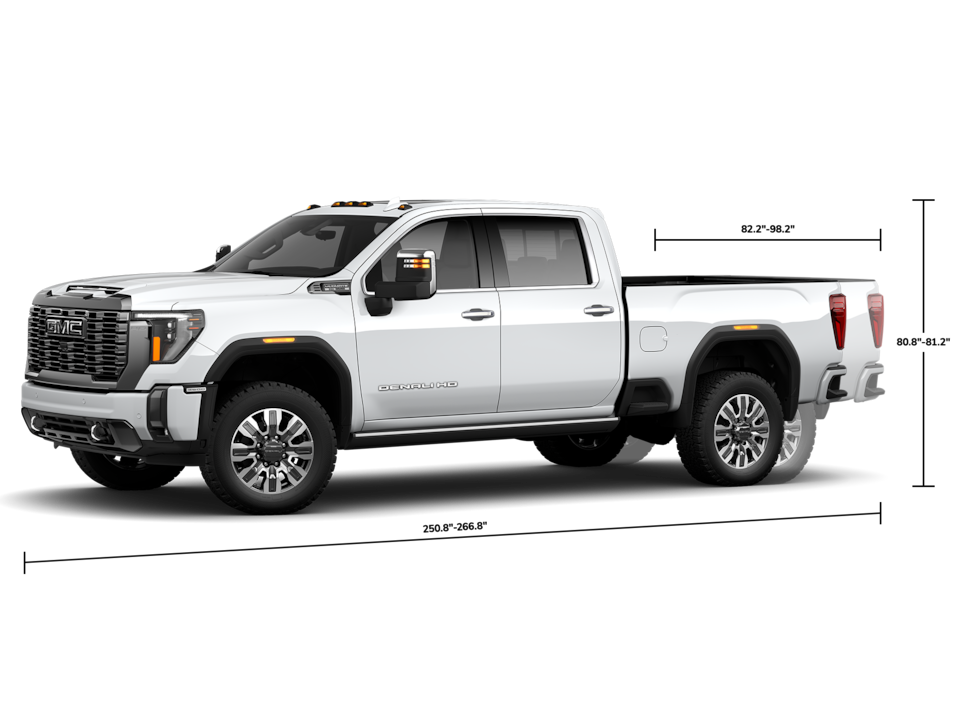

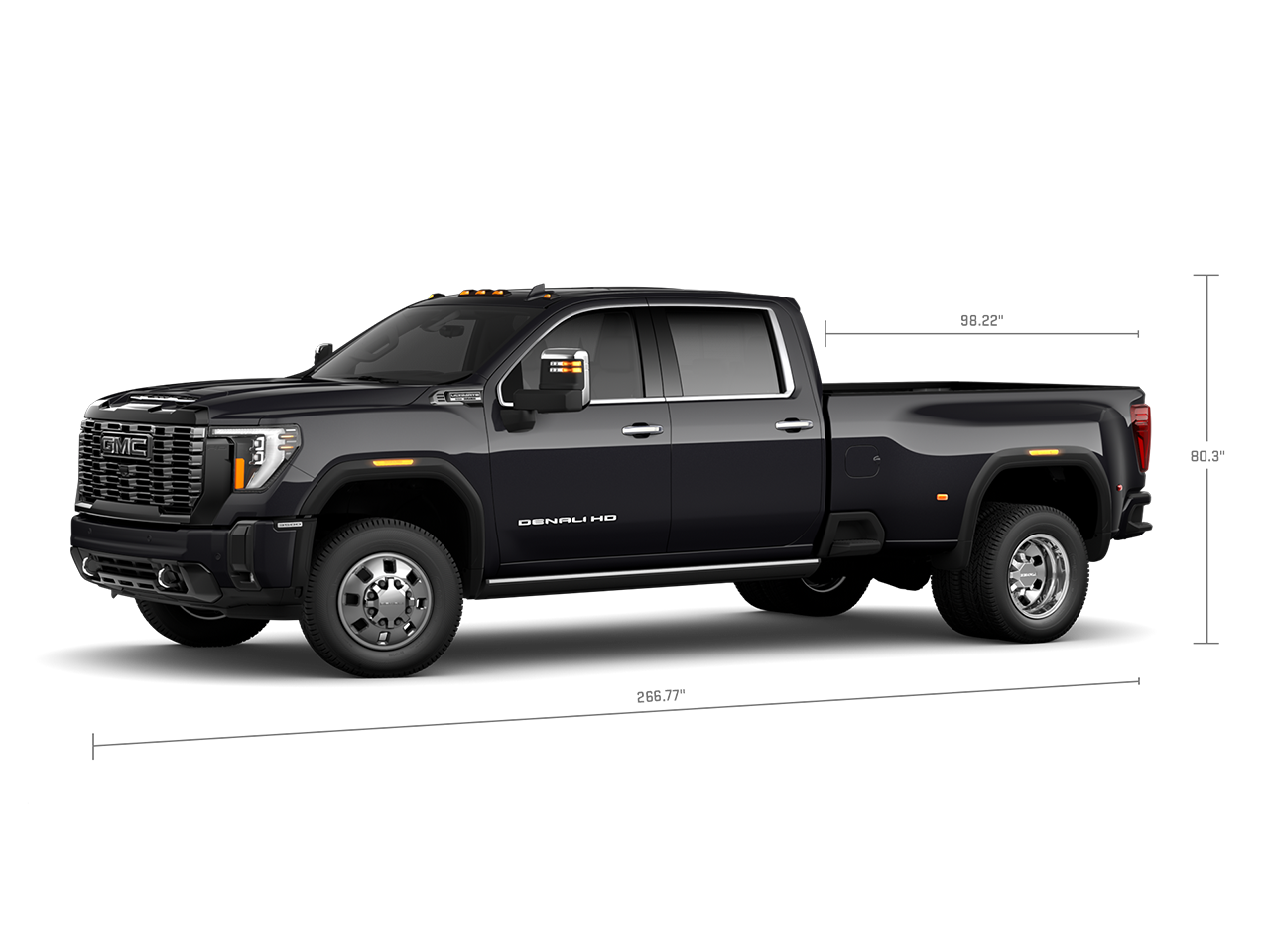

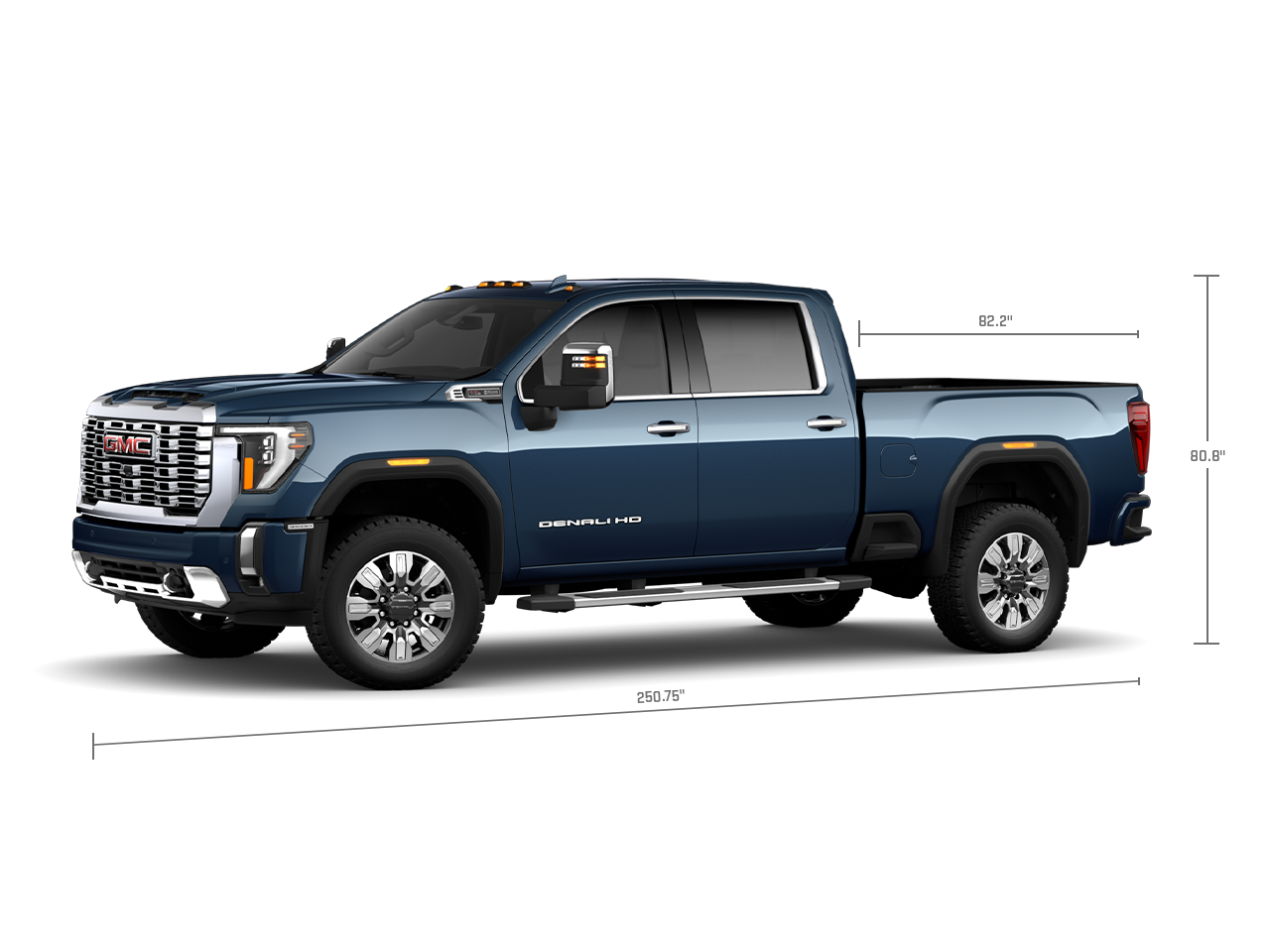

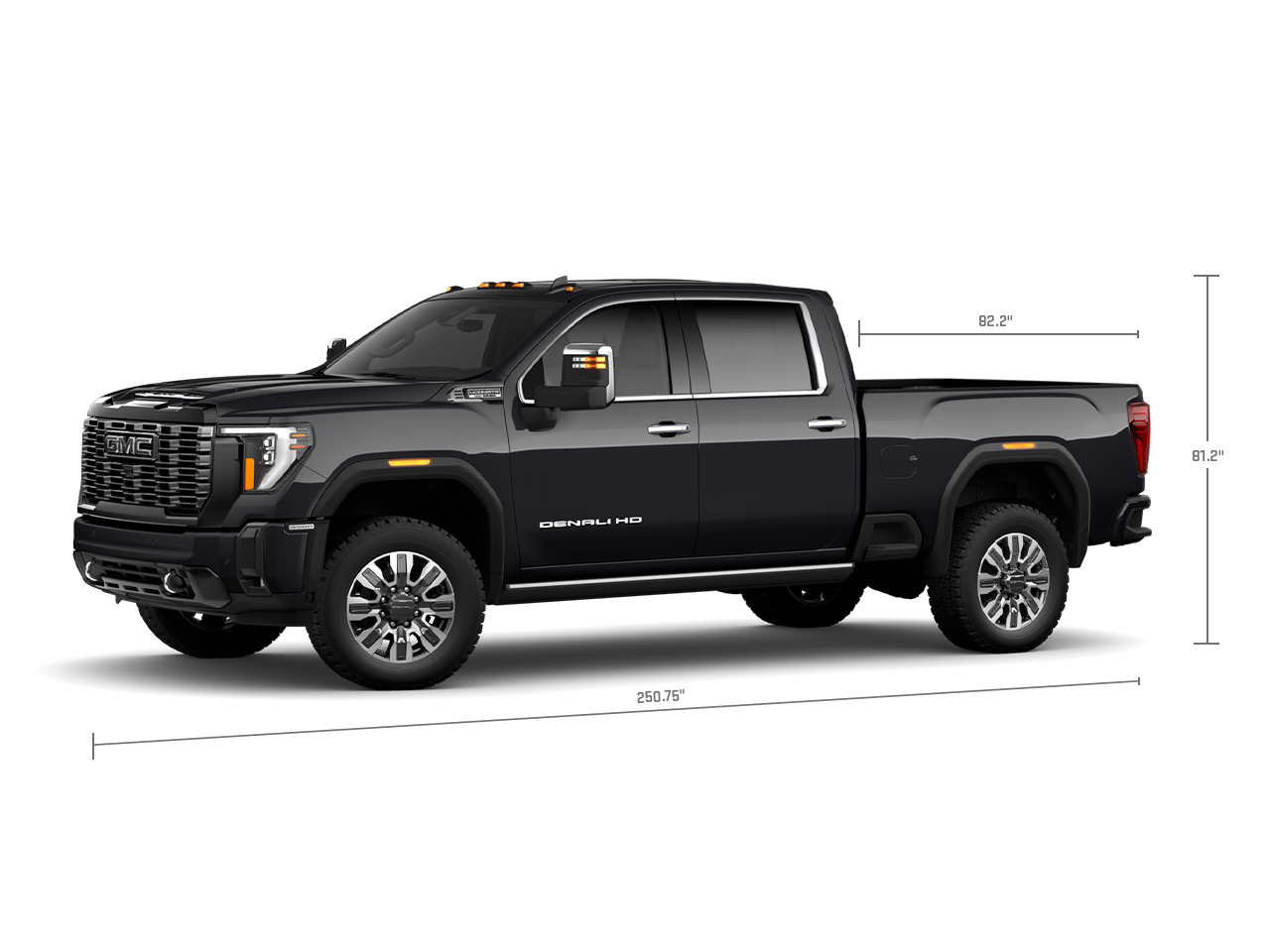

3500 DENALI

Next Generation Sierra 3500 Denali truck comes in 4WD Crew Cab with either a 6' 9" standard box or available 8' long box. Long box is available with a SRW or DRW configuration.

MAX GCWR

40,000 LBS

WHEELBASE

158.9-172 IN.

FRONT/REAR TREAD WIDTH

SRW: 68.1/68.3 IN.
DRW: 68.5/75 IN.

MAX GVWR

14,000 LBS

GROUND CLEARANCE

10.4-11.2 IN.

CARGO VOLUME

69.6-83.5 CU.FT.

2500 DENALI DETAILED SPECS

2500 DIESEL TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

MAX GCWR

27,500 LBS

27,500 LBS

MAX CONVENTIONAL HITCH

18,500 LBS

18,500 LBS

MAX FIFTH WHEEL HITCH

18,500 LBS

18,500 LBS

MAX GOOSENECK  HITCH

18,500 LBS

18,500 LBS

MAX PAYLOAD

3,563 LBS

3,597 LBS

2500 GAS TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

MAX GCWR

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

MAX FIFTH WHEEL HITCH

16,620 LBS

16,520 LBS

MAX GOOSENECK HITCH

16,620 LBS

16,520 LBS

MAX PAYLOAD

3,760 LBS

3,862 LBS

2500 ENGINES

6.6 L V8 Gasoline

6.6 L V8 Turbo Diesel

CYLINDER HEAD MATERIAL

Cast Aluminum

Cast Aluminum

COMPRESSION RATIO

10.75 : 1

16 : 1

VALVETRAIN

Overhead-valve, two valves per cylinder, variable valve trimming

Overhead-valve, four valves per cylinder

FUEL DELIVERY

Direct Fuel Injection

Common-Rail Direct Fuel Injection

HORSEPOWER (hp @rpm)

401 @5200

445 @2800

TORQUE (lb.-ft @rpm)

464 @4000

910 @1600

2500 TRANSMISSIONS & AXLES

HYDRA-MATIC 6L90 SIX-SPEED AUTOMATIC TRANSMISSION (6.6L GAS)

ALLISON 10-SPEED AUTOMATIC TRANSMISSION (6.6L DIESEL)

GEAR RATIOS (:1)

6L90

10L1000

FIRST GEAR

4.03

4.54

SECOND GEAR

2.36

2.87

THIRD GEAR

1.53

2.06

FOURTH GEAR

1.15

1.72

FIFTH GEAR

0.85

1.48

SIXTH GEAR

0.67

1.26

SEVENTH GEAR

1.00

EIGHTH GEAR

0.85

NINTH GEAR

0.69

TENTH GEAR

0.63

REVERSE

3.06

4.54

AXLE RATIO

3.73

3.42

REAR AXLE RING GEAR SIZE

11.5 in.

11.5 in.

2500 DIMENSIONS

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

WHEELBASE

158.9"

172"

OVERALL LENGTH

250.1"

266.1"

OVERALL WIDTH

81.9"

81.9"

OVERALL HEIGHT

79.8"

79.7"

CARGO BED INSIDE LENGTH (AT FLOOR)

82.2"

98.2"

INSIDE HEIGHT (BOX)

21"

21"

INSIDE WIDTH (BETWEEN WHEELHOUSING)

51.9"

50.6"

WALL TO WALL

71.4"

71.4"

CARGO BOX VOLUME

69.6 cu.ft

83.5 cu.ft

3500 DENALI DETAILED SPECS

3500 DIESEL TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX SRW

4WD CREW CAB LONG BOX DRW

MAX GCWR

29,700 LBS

29,700 LBS

40,000 LBS

MAX CONVENTIONAL HITCH

20,000 LBS

20,000 LBS

20,000 LBS

MAX FIFTH WHEEL HITCH

21,300 LBS

21,040 LBS

31,180 LBS

MAX GOOSENECK HITCH

21,300 LBS

21,040 LBS

31,180 LBS

MAX PAYLOAD

4,185 LBS

4,078 LBS

5,607 LBS

3500 GAS TOWING & PAYLOAD

4WD CREW CAB STANDARD BOX

SRW CREW CAB LONG BOX 4WD

DENALI DRW CREW CAB LONG BOX 4WD

MAX GCWR

24,000 LBS

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

16,300 LBS

MAX FIFTH WHEEL HITCH

16,530 LBS

16,410 LBS

16,180 LBS

MAX GOOSENECK HITCH

16,530 LBS

16,410 LBS

16,180 LBS

MAX PAYLOAD

4,365 LBS

4,398 LBS

6,610 LBS

3500 ENGINES

6.6 L V8 Gasoline

6.6 L V8 Turbo Diesel

CYLINDER HEAD MATERIAL

Cast Aluminum

Cast Aluminum

COMPRESSION RATIO

10.75 : 1

16 : 1

VALVETRAIN

Overhead-valve, two valves per cylinder, variable valve trimming

Overhead-valve, four valves per cylinder

FUEL DELIVERY

Direct Fuel Injection

Common-Rail Direct Fuel Injection

HORSEPOWER (hp @rpm)

401 @5200

445 @2800

TORQUE (lb.-ft @rpm)

464 @ 4000

910 @1600

3500 TRANSMISSIONS & AXLES

HYDRA-MATIC 6L90 SIX-SPEED AUTOMATIC TRANSMISSION (6.6L GAS)

ALLISON 10-SPEED AUTOMATIC TRANSMISSION (6.6L DIESEL)

GEAR RATIOS (:1)

6L90

10L1000

FIRST GEAR

4.03

4.54

SECOND GEAR

2.36

2.87

THIRD GEAR

1.53

2.06

FOURTH GEAR

1.15

1.72

FIFTH GEAR

0.85

1.48

SIXTH GEAR

0.67

1.26

SEVENTH GEAR

1.00

EIGHTH GEAR

0.85

NINTH GEAR

0.69

TENTH GEAR

0.63

REVERSE

3.06

4.54

AXLE RATIO

3.73

3.42

REAR AXLE RING GEAR SIZE

11.5 in.

12 in.

3500 DIMENSIONS

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX SRW

4WD CREW CAB LONG BOX DRW

WHEELBASE

158.9"

172"

172"

OVERALL LENGTH

250.1"

266.1"

266.1"

OVERALL WIDTH

81.9"

81.9"

96.8"

OVERALL HEIGHT

80.9"

80.7"

80"

CARGO BED INSIDE LENGTH (AT FLOOR)

82.2"

98.2”

98.2"

INSIDE HEIGHT (BOX)

21"

21"

21"

INSIDE WIDTH (BETWEEN WHEELHOUSING)

51.9"

50.6"

50.6"

WALL TO WALL

71.4"

71.4"

71.4"

CARGO BOX VOLUME

69.6 cu.ft

83.5 cu.ft

83.5 cu.ft

COLORS

FEATURE HIGHLIGHTS

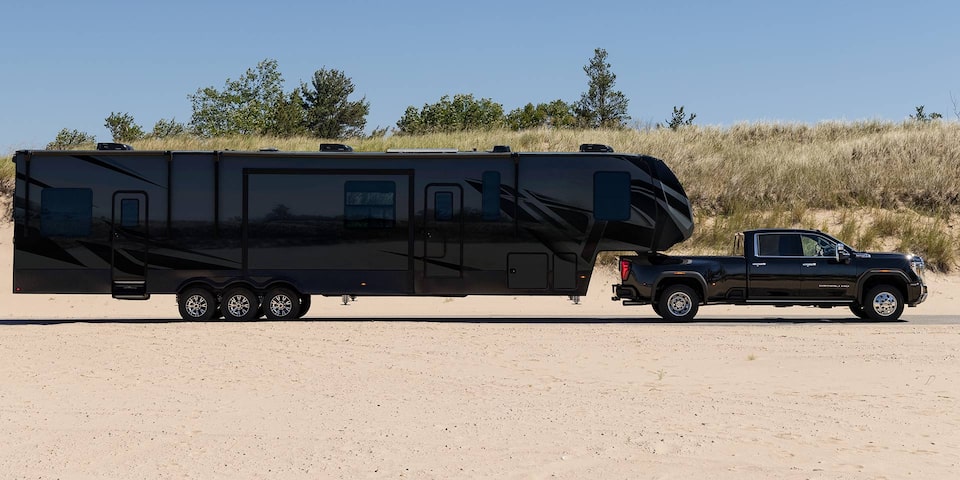

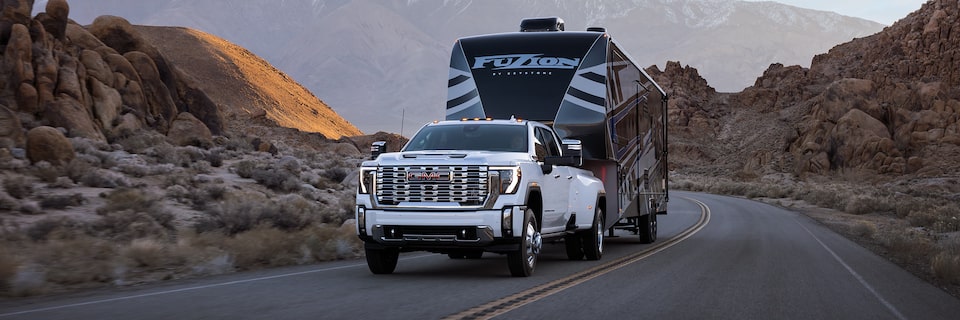

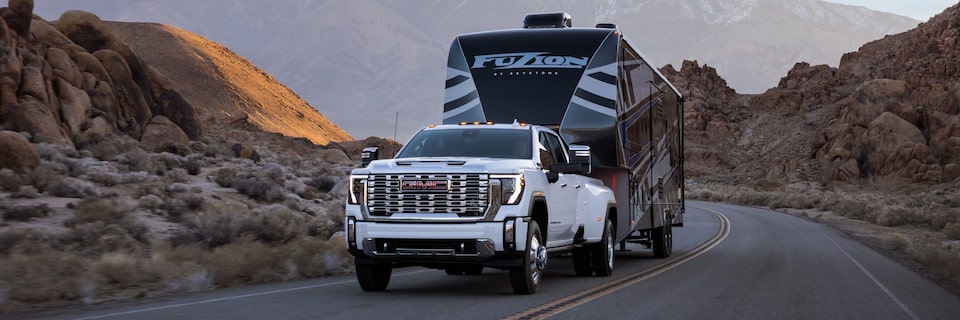

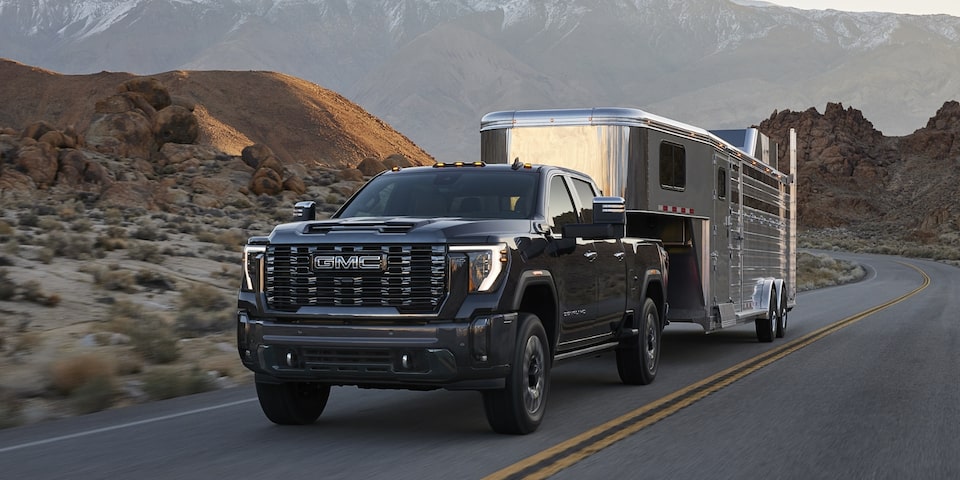

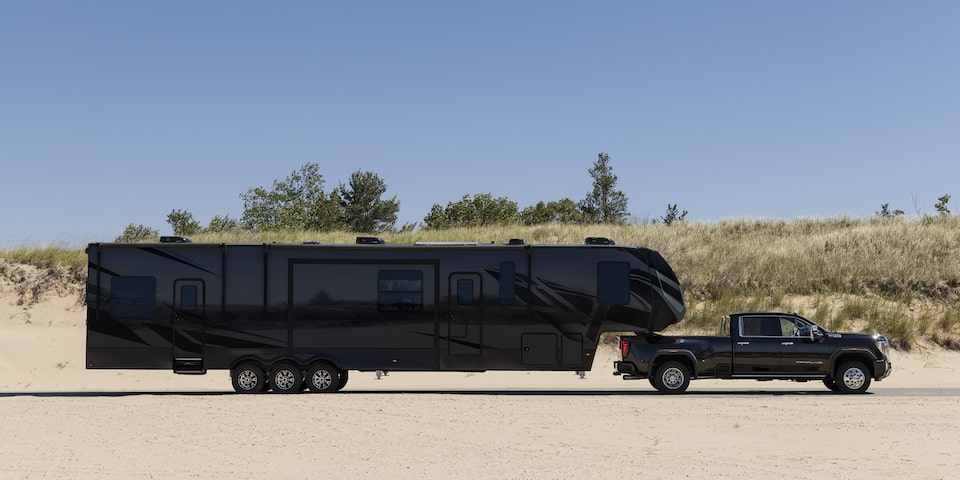

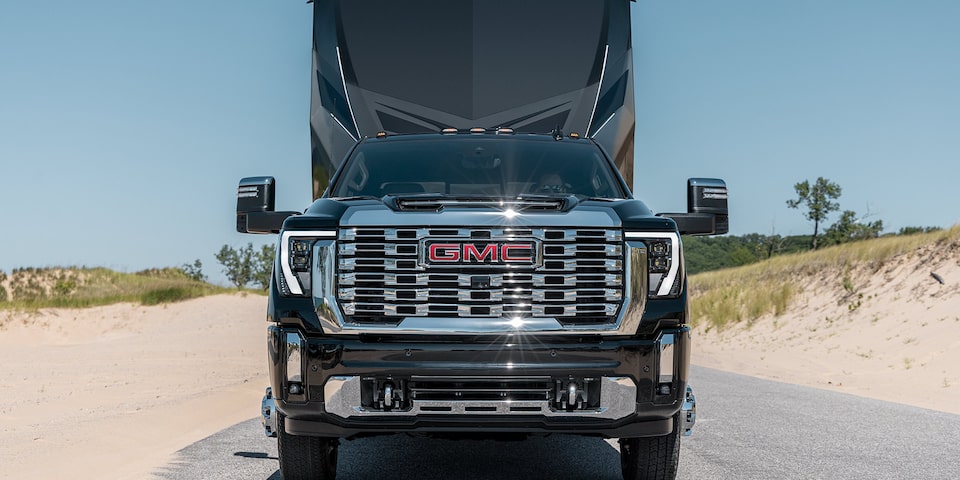

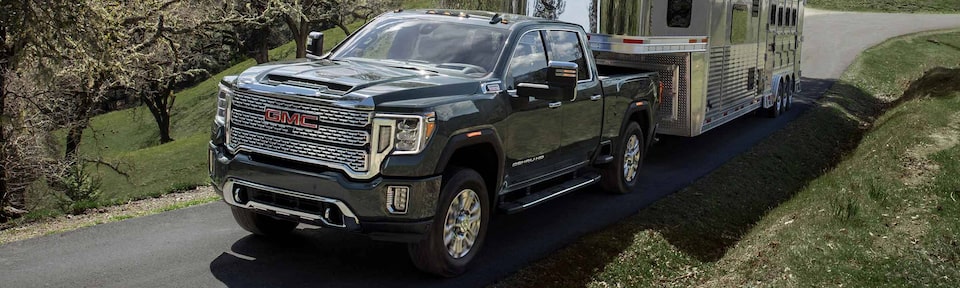

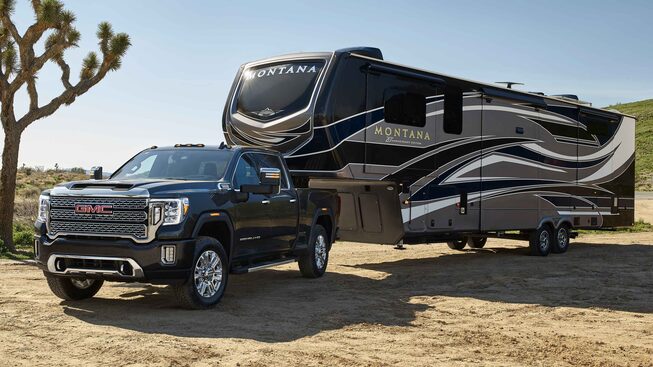

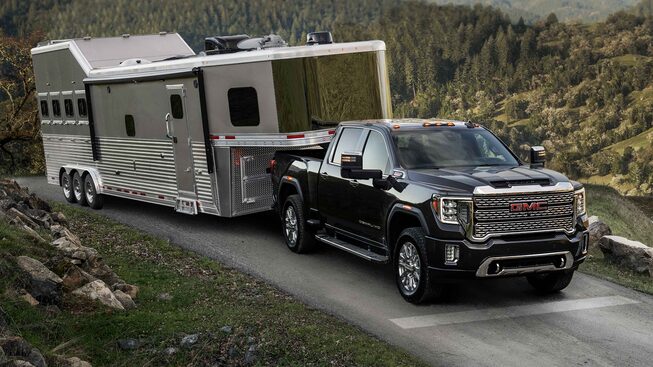

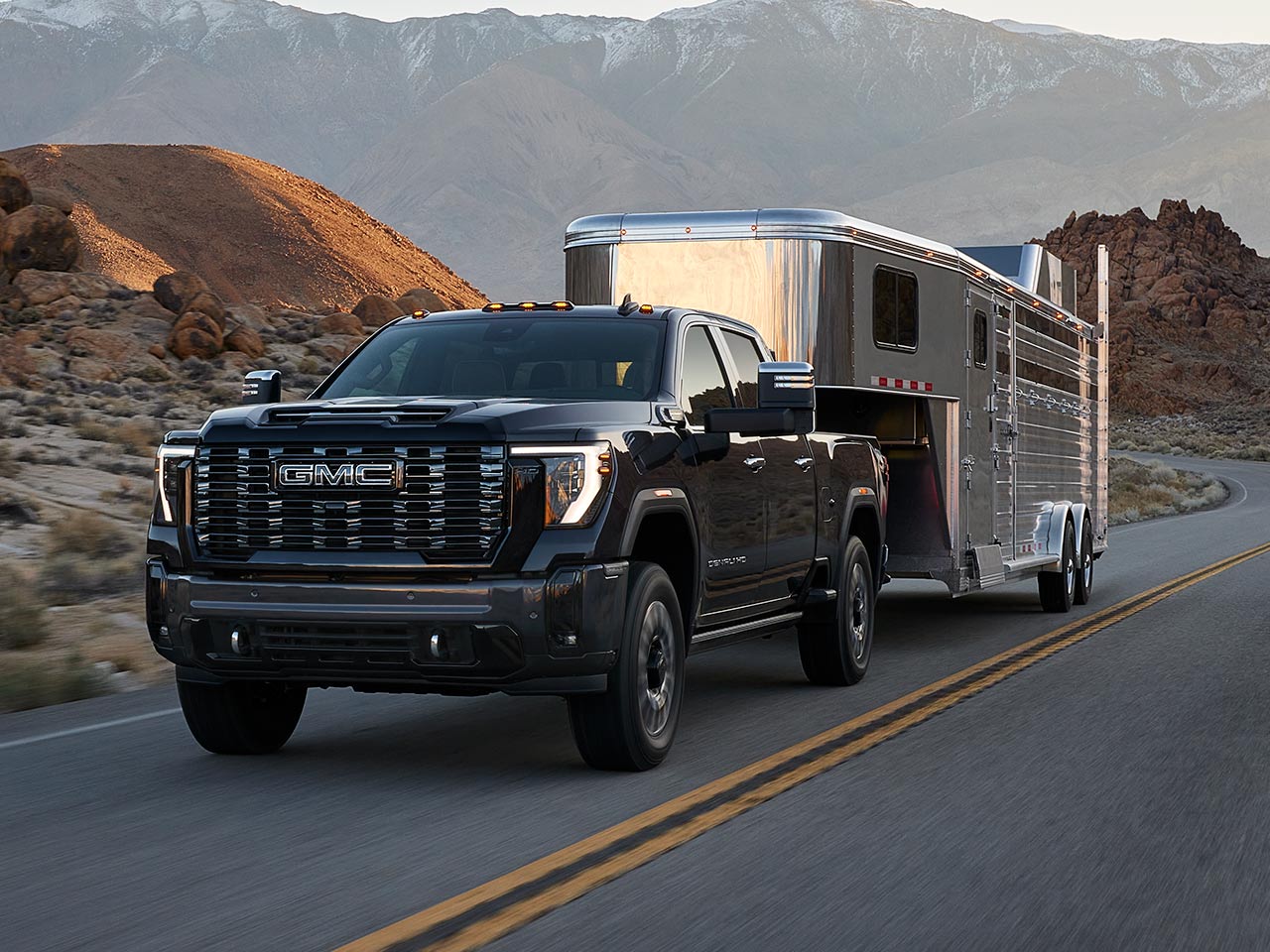

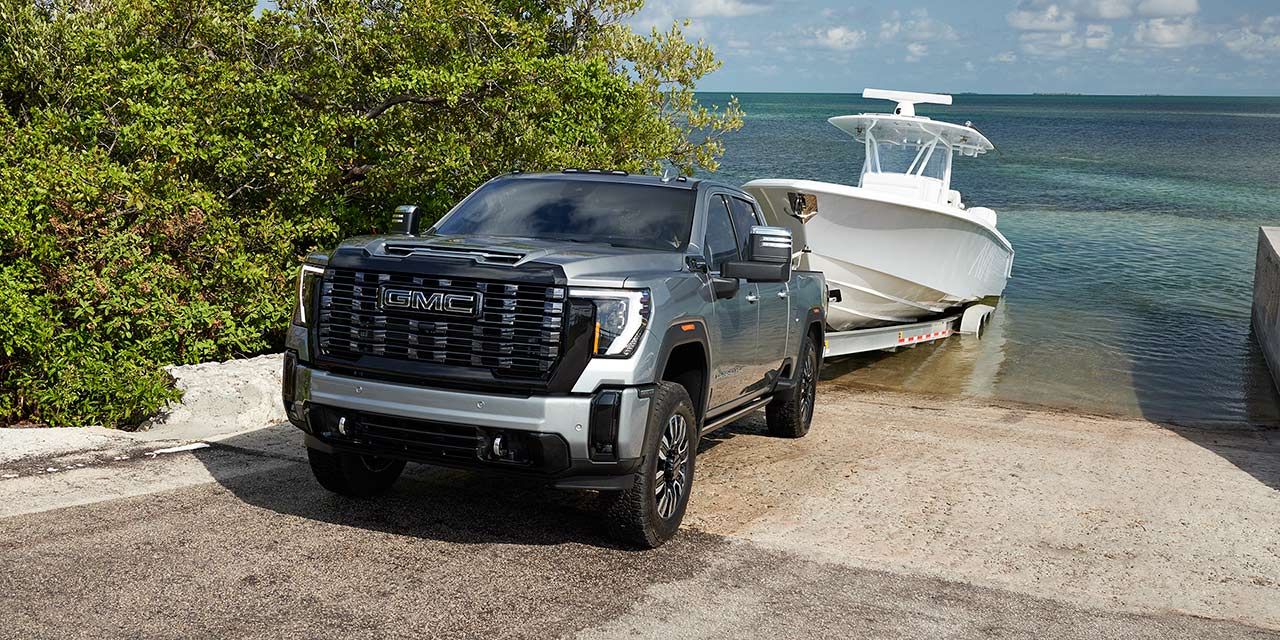

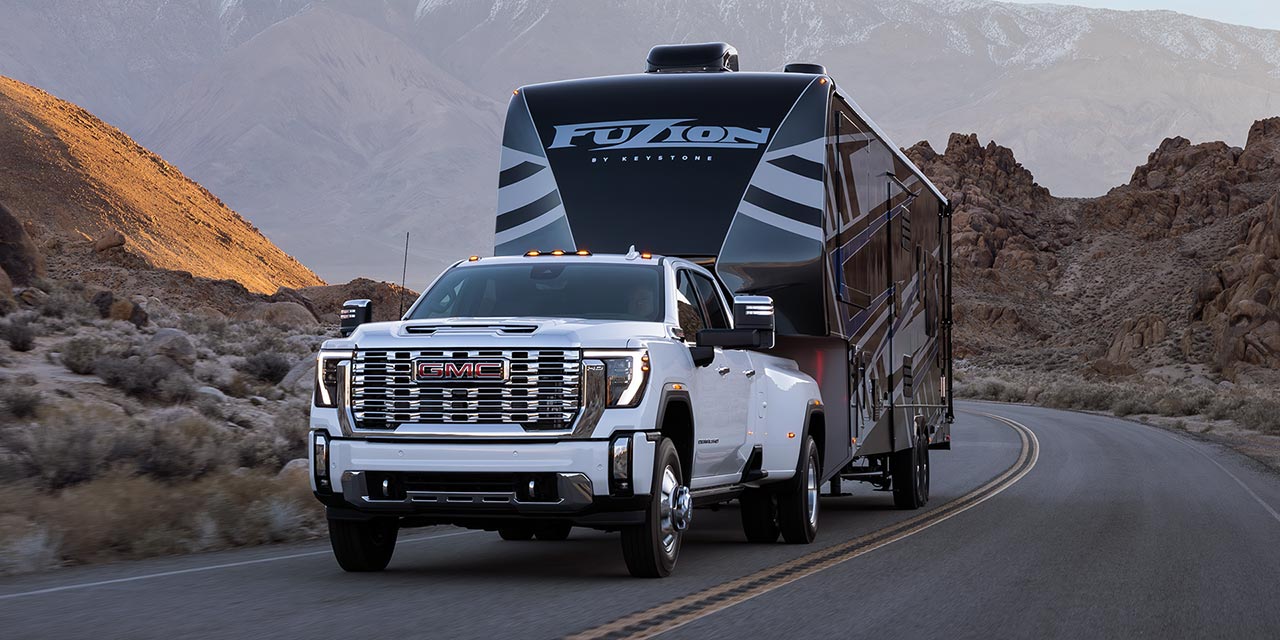

DOMINANT PULLING POWER

The available Allison® 10-speed automatic transmission, the first in a heavy-duty truck in its class, is paired with the available 6.6L Duramax Turbo Diesel so you can tow with command and control.

MORE CAPABILITY FEATURES

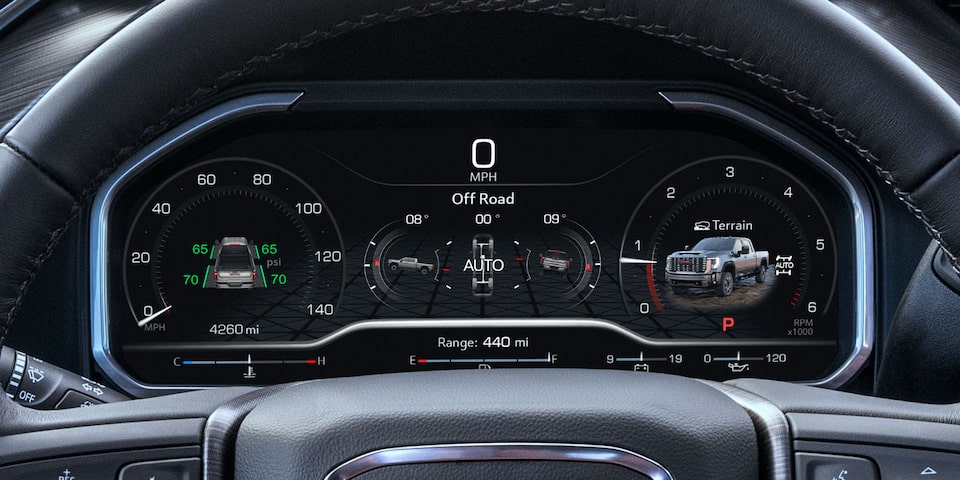

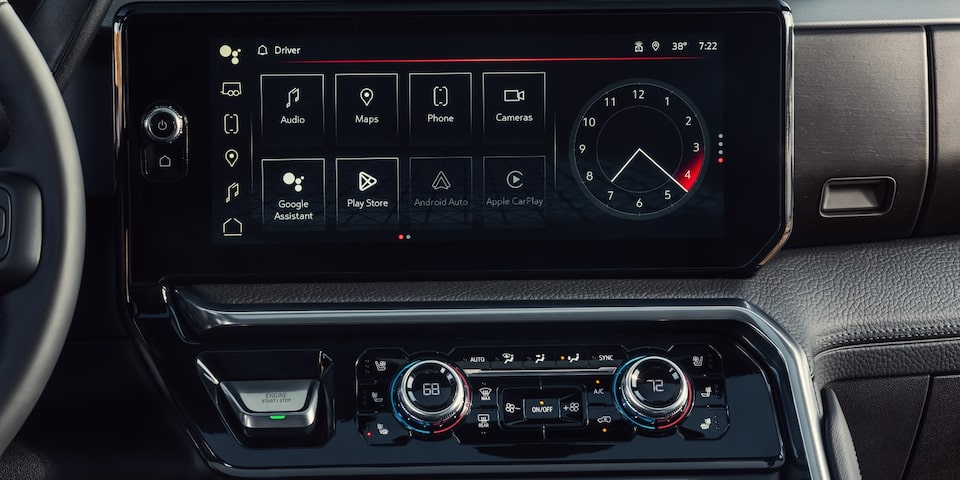

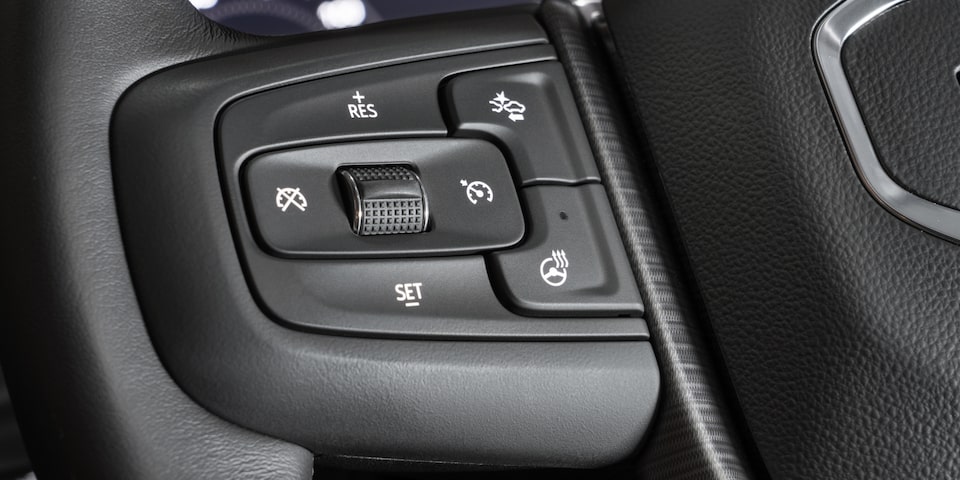

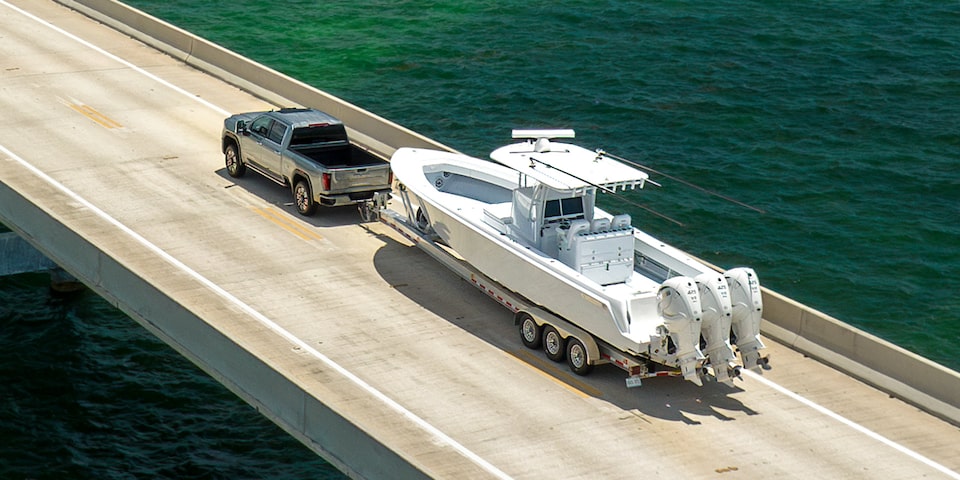

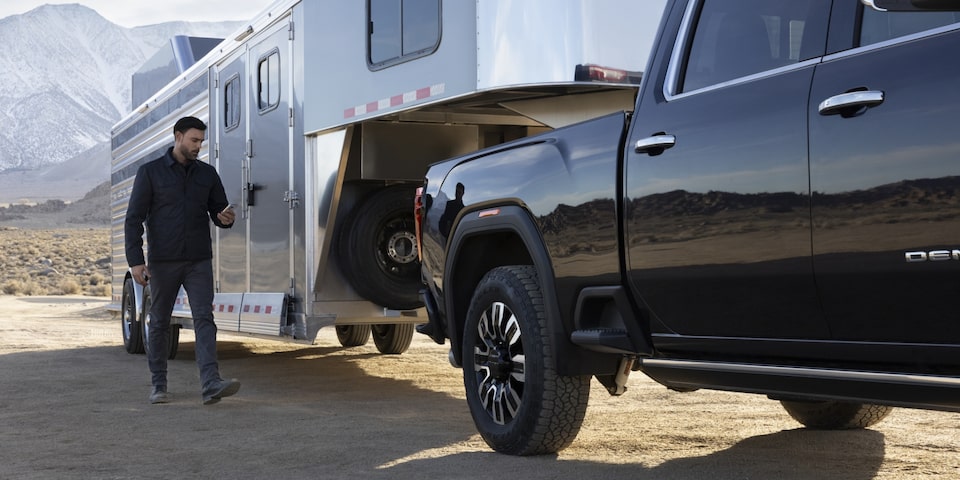

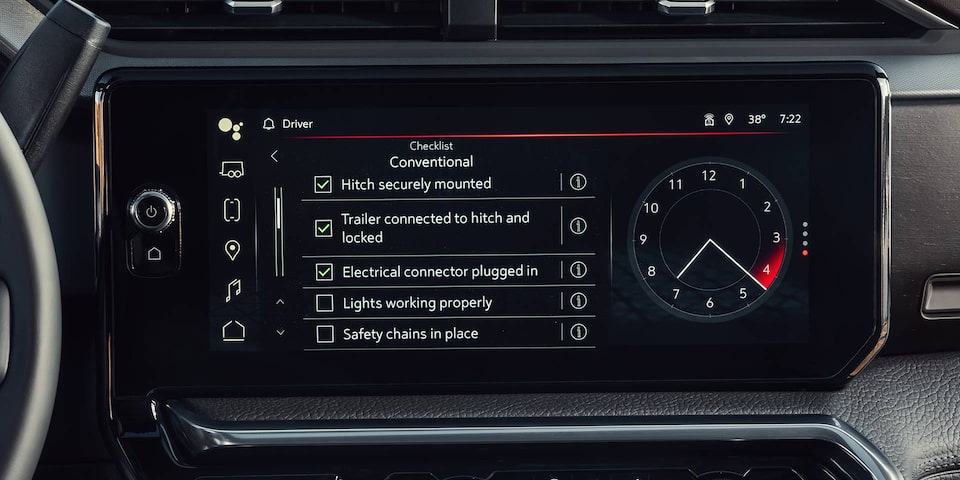

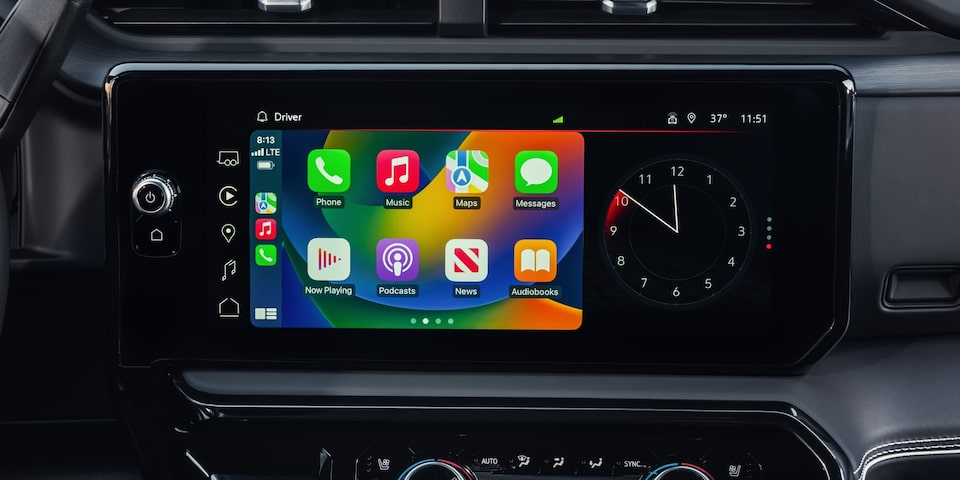

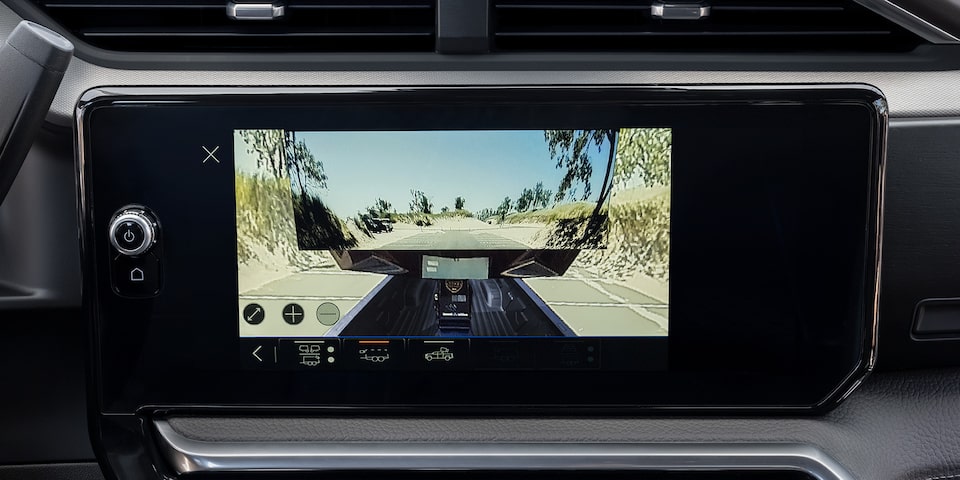

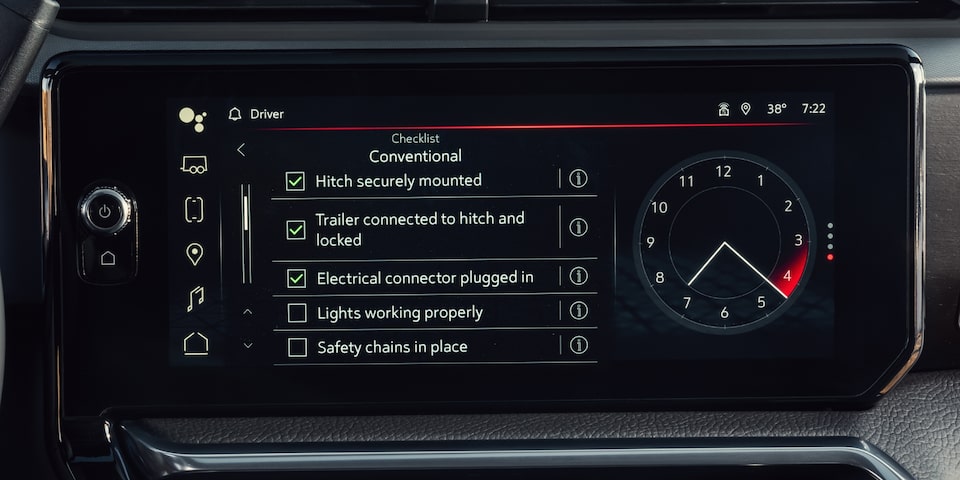

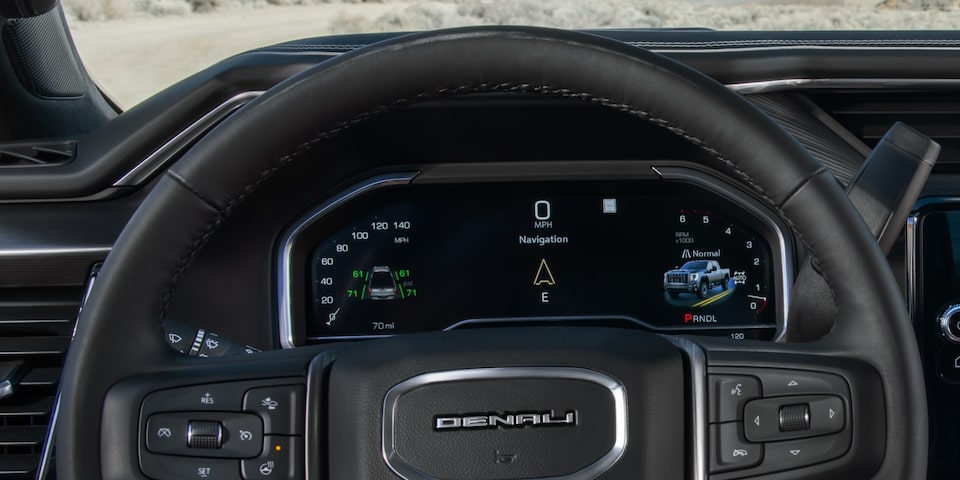

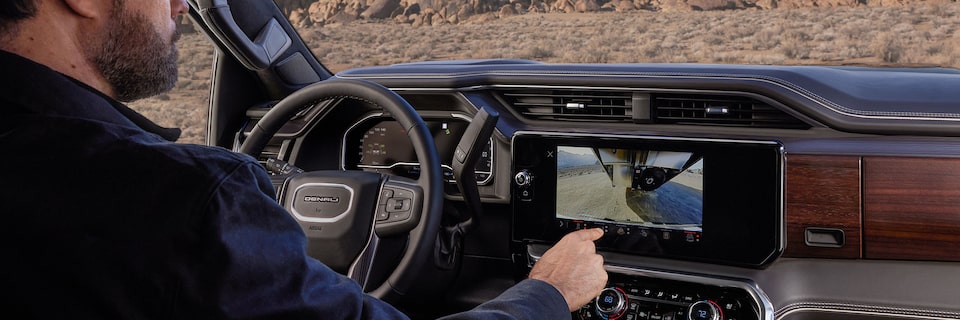

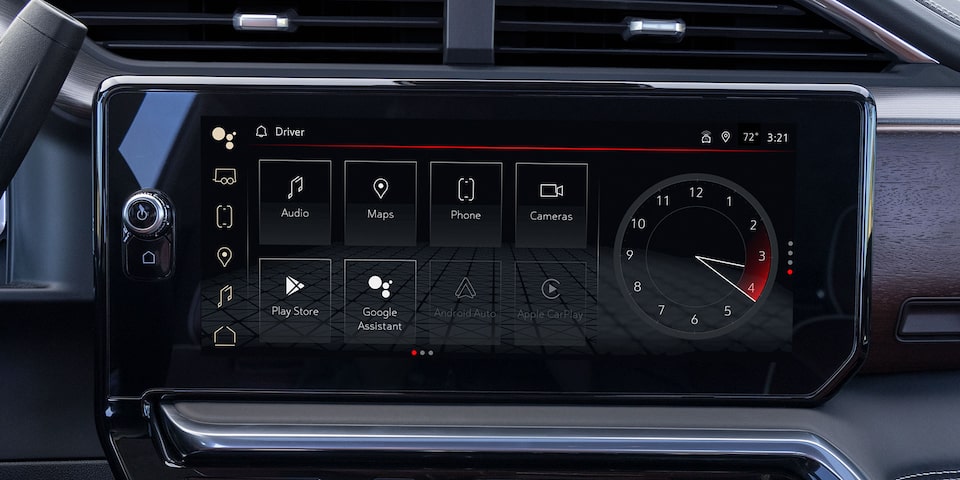

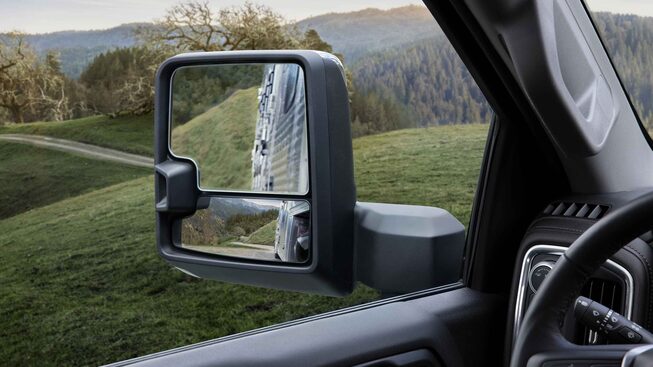

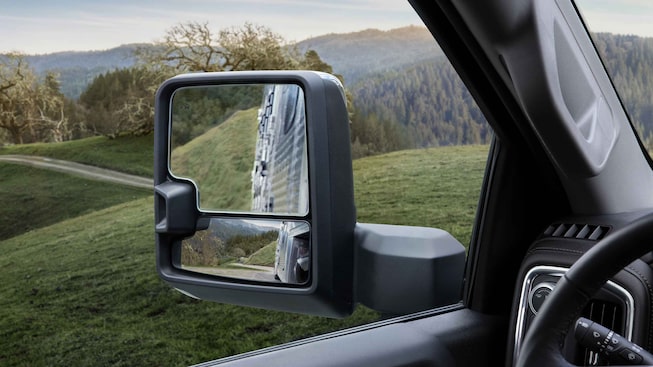

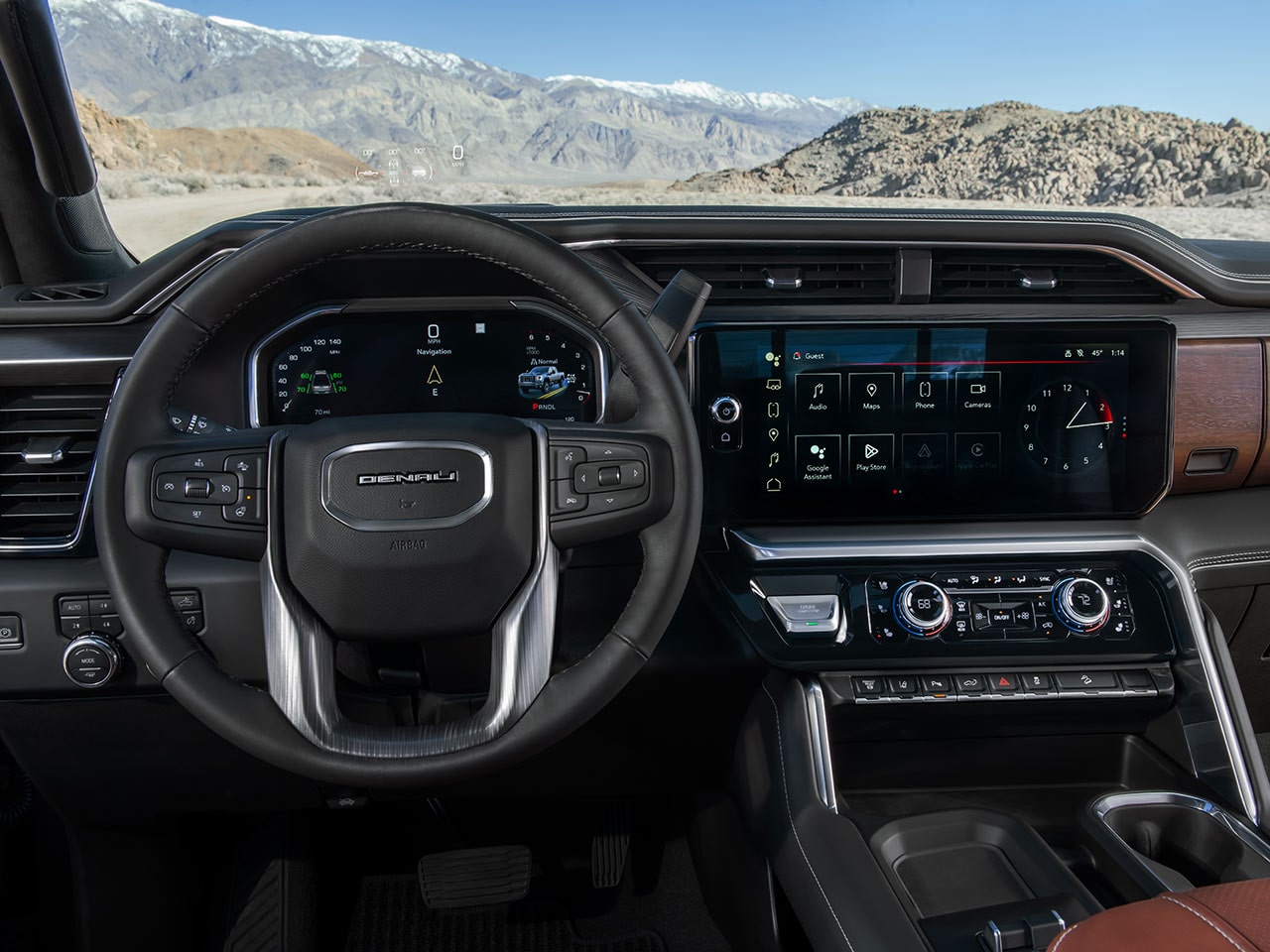

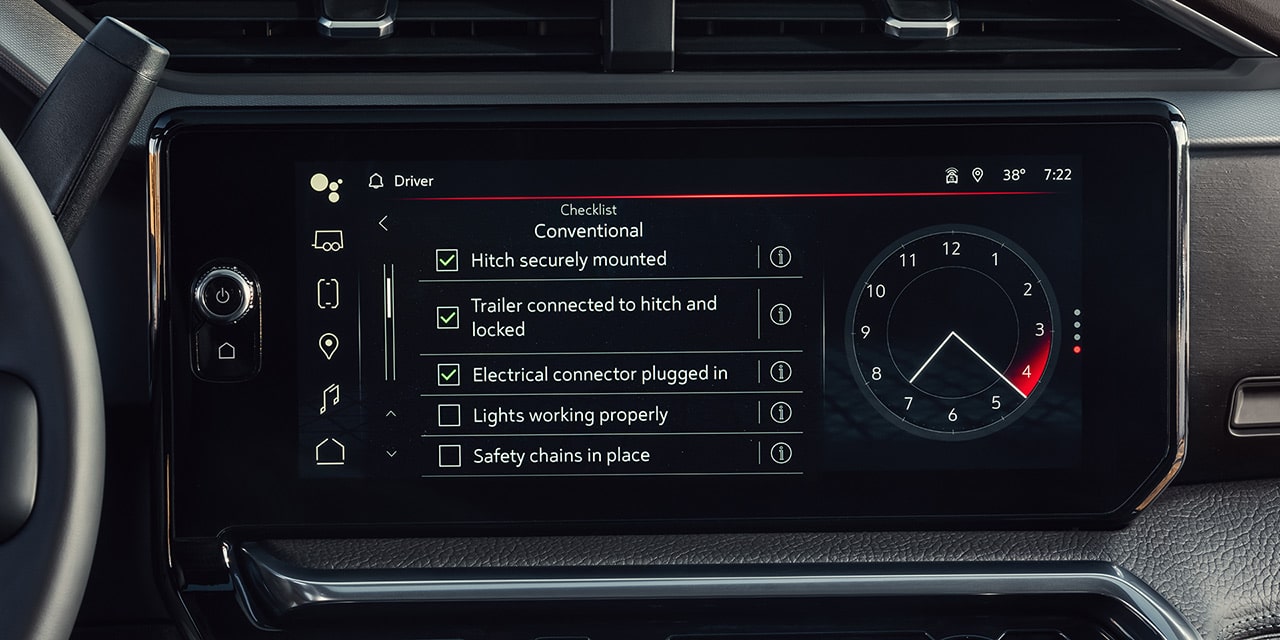

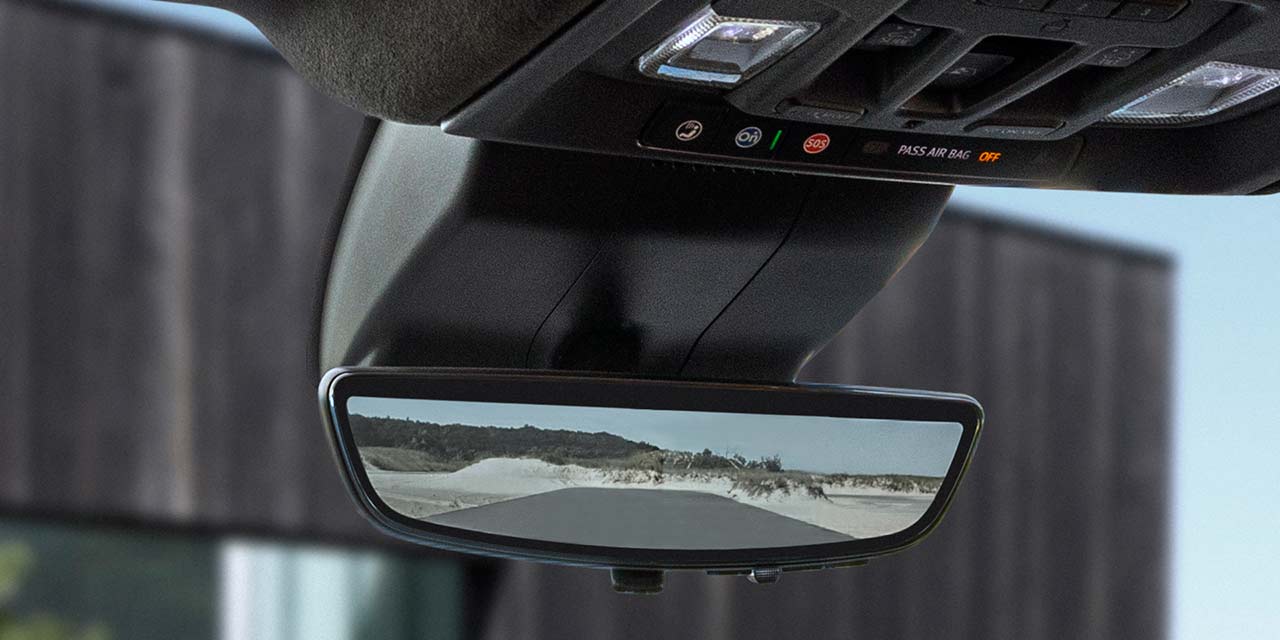

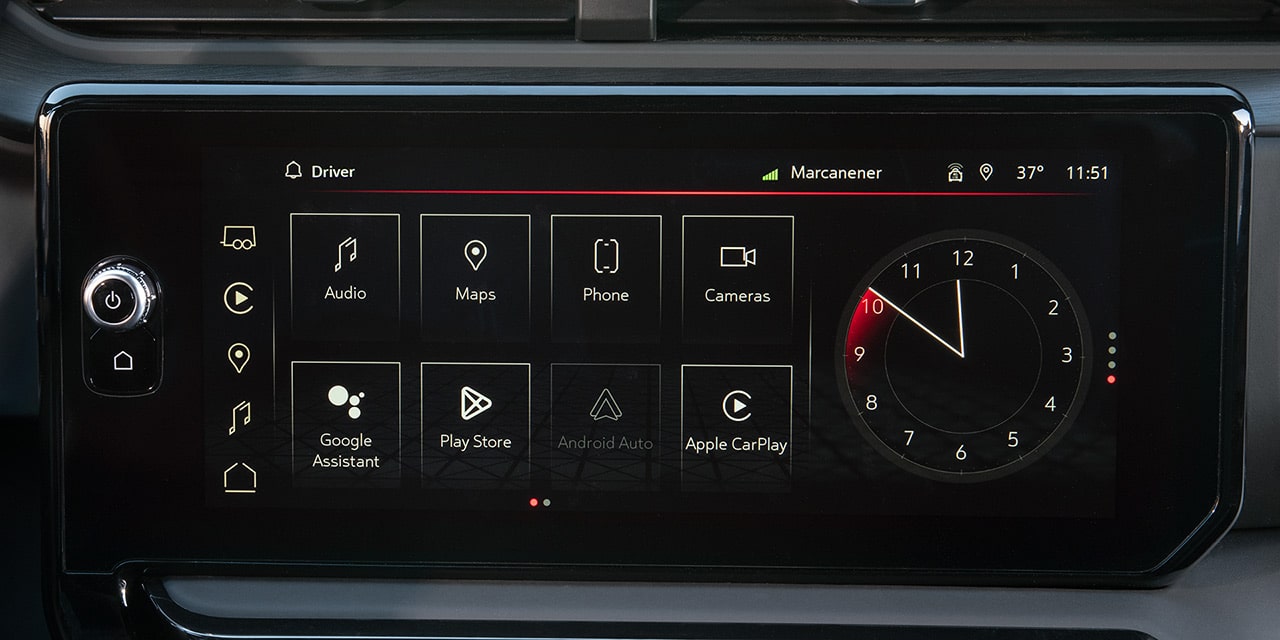

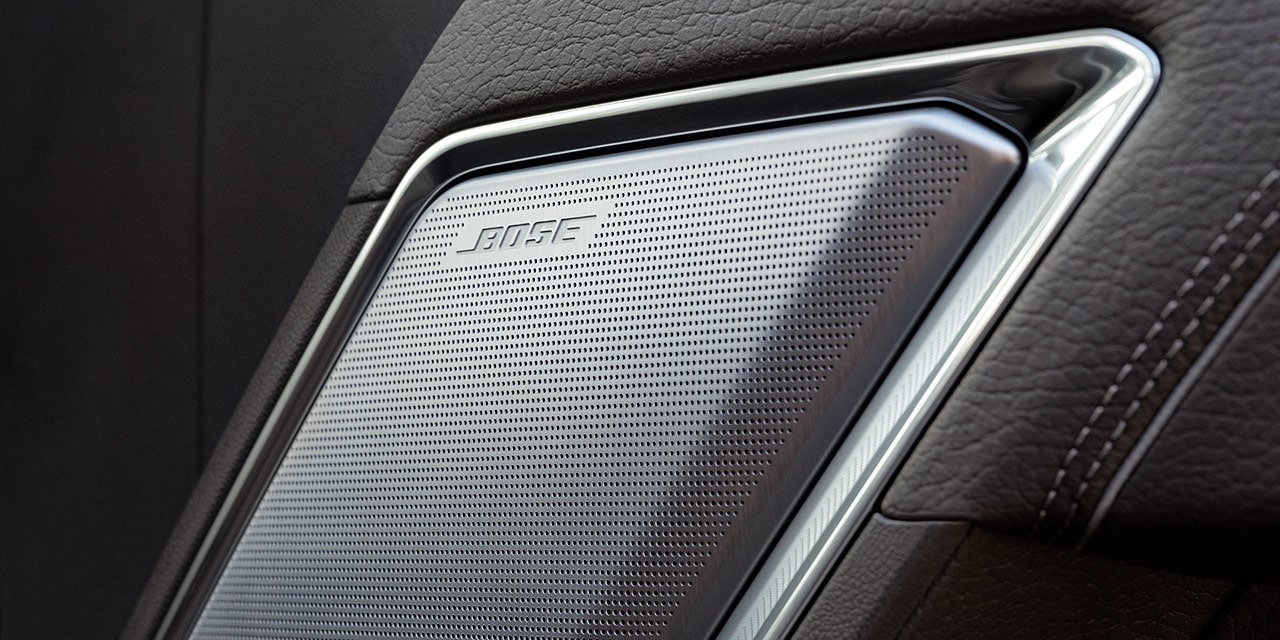

TECHNOLOGY TO TOW SMART

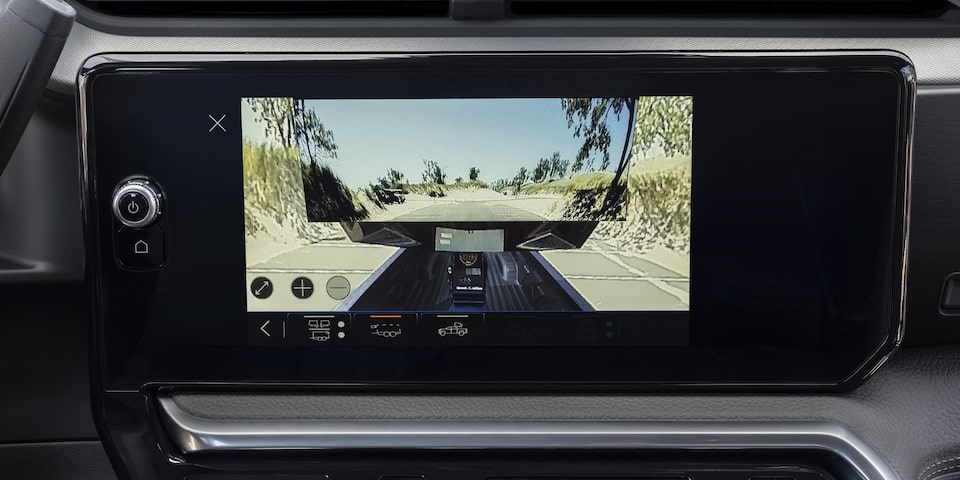

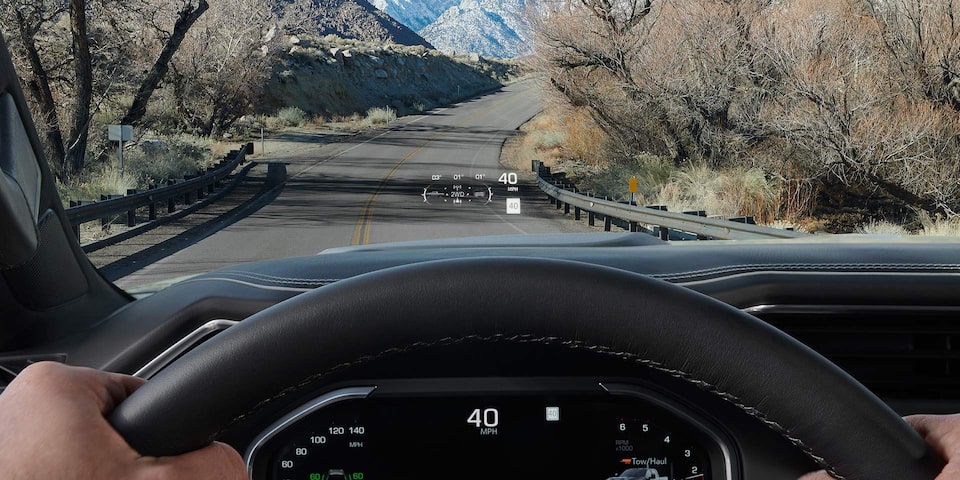

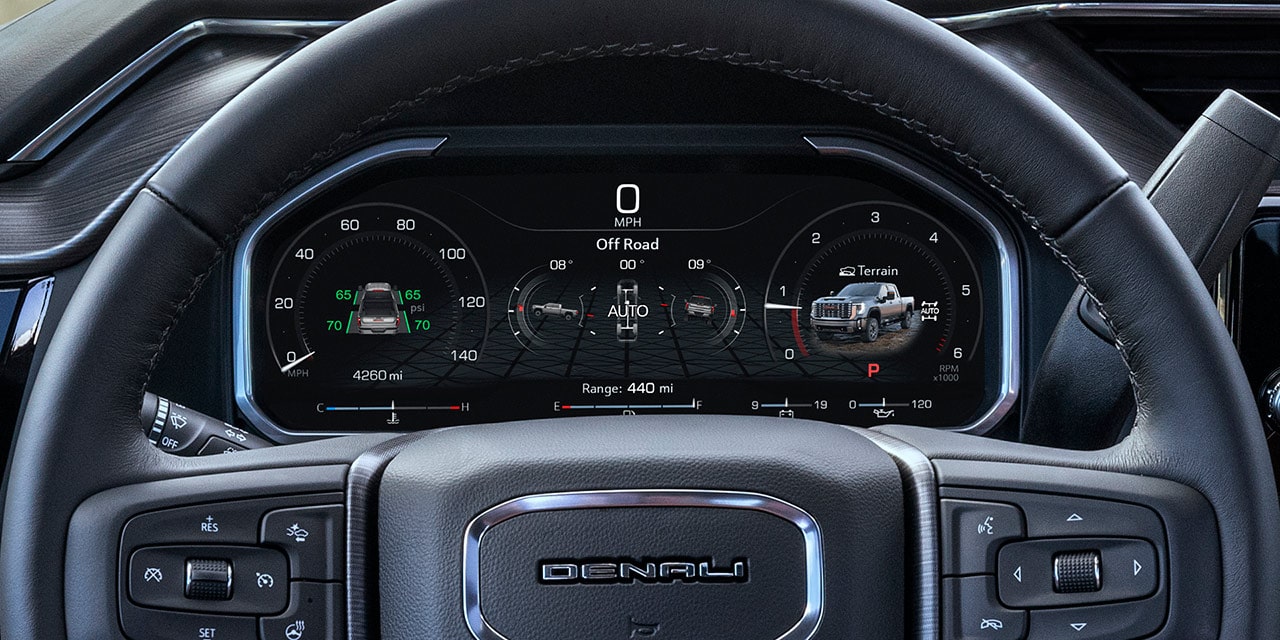

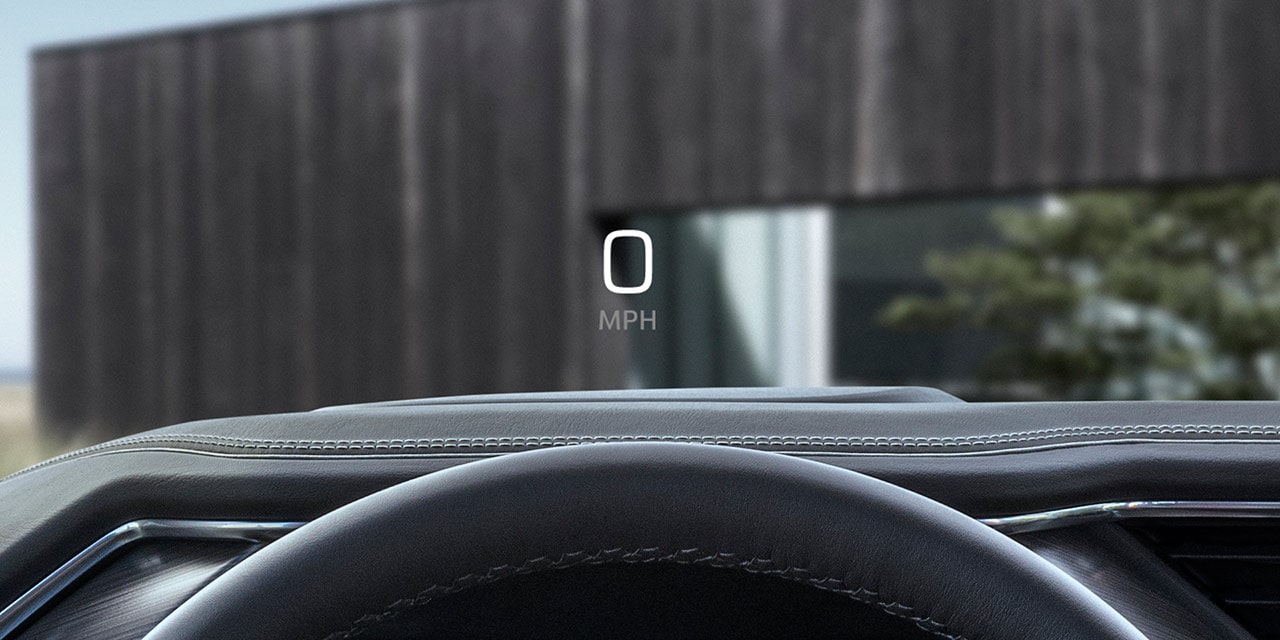

Available technologies such as the class-leading available 15 camera views and 15" diagonal Head-Up Display help you tow with command and control.

MORE TECHNOLOGY FEATURES

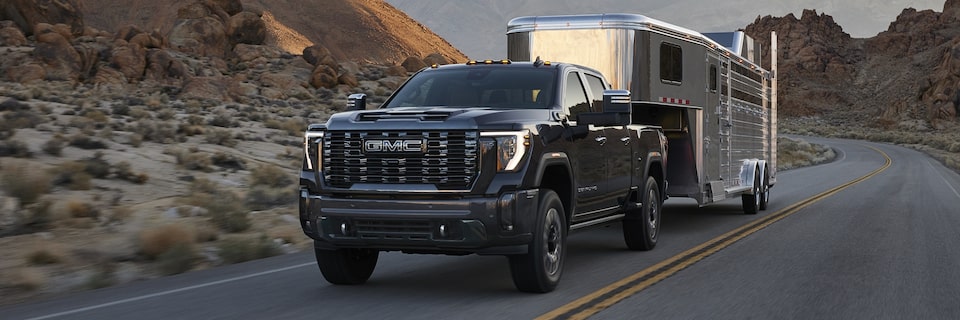

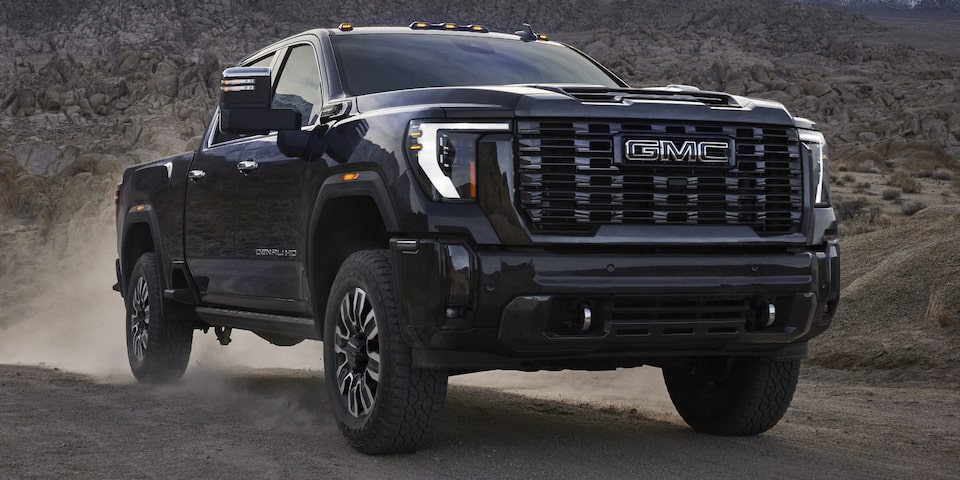

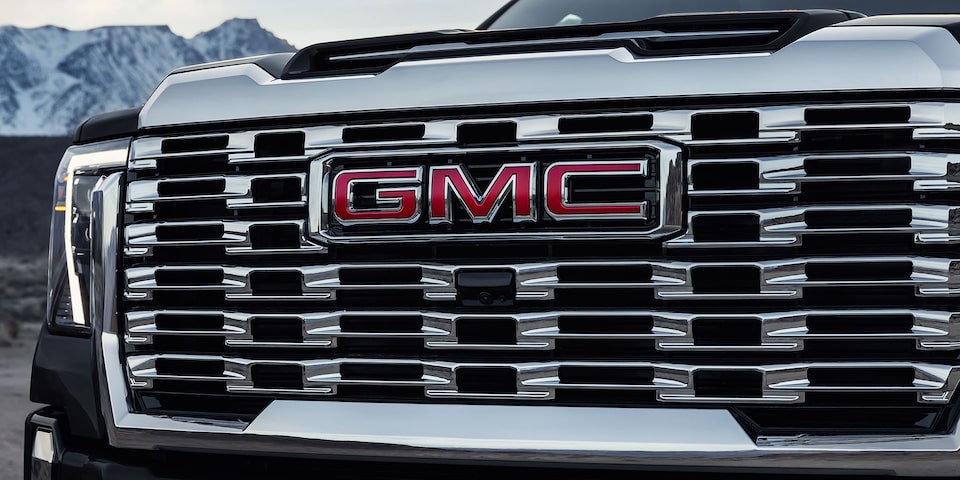

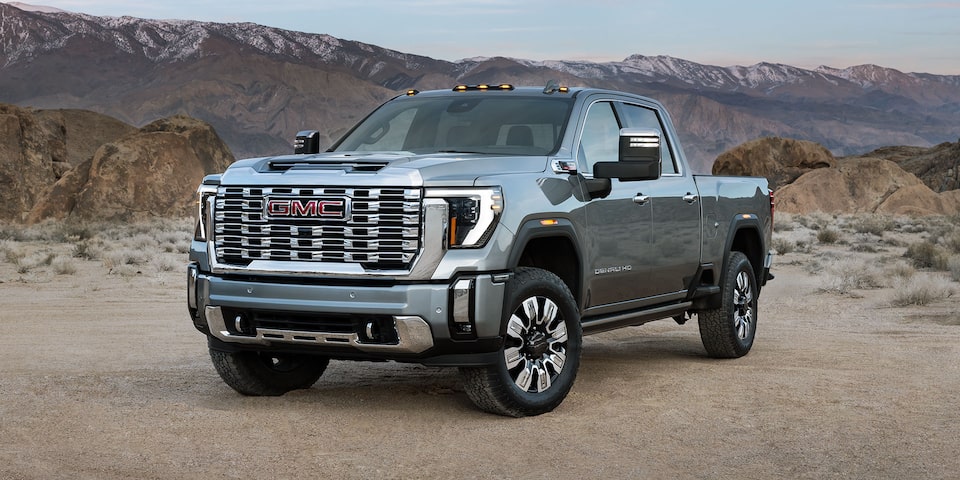

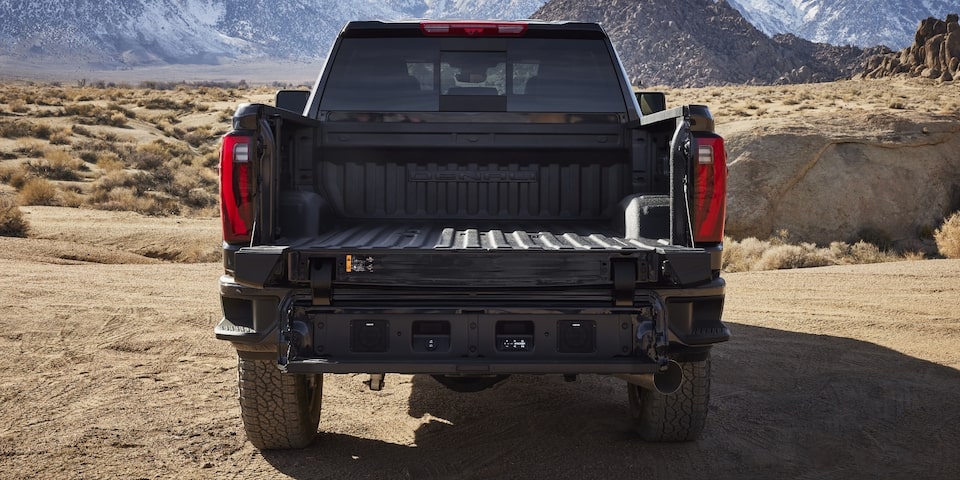

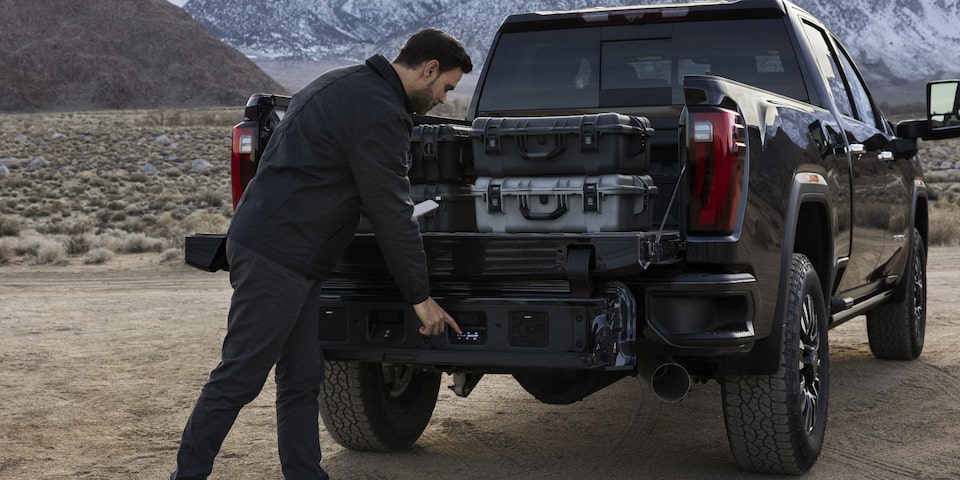

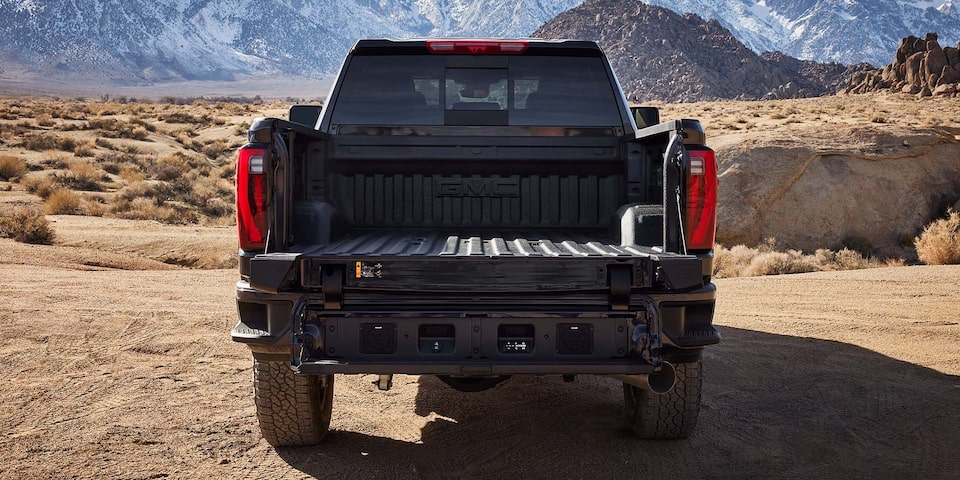

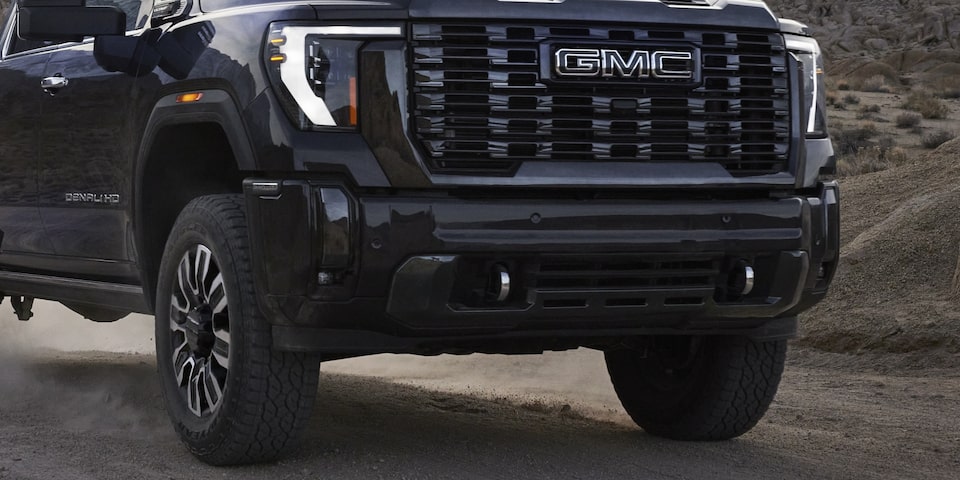

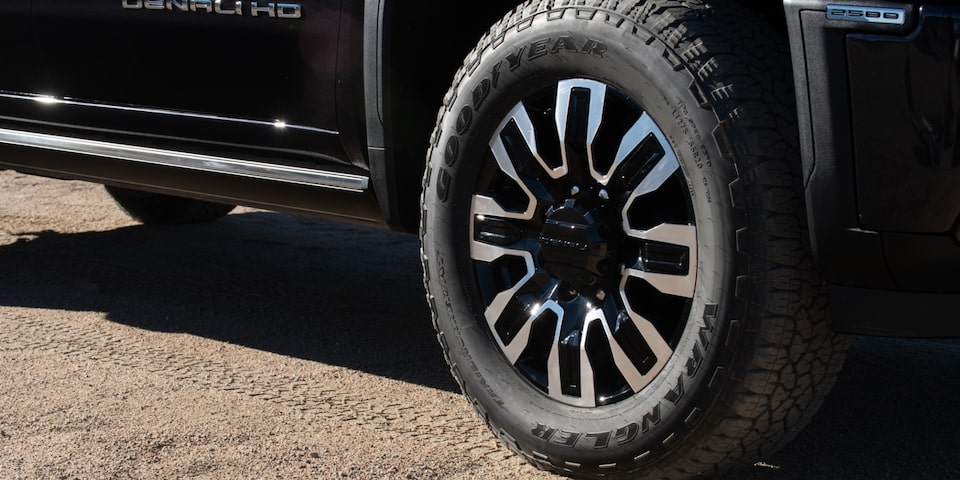

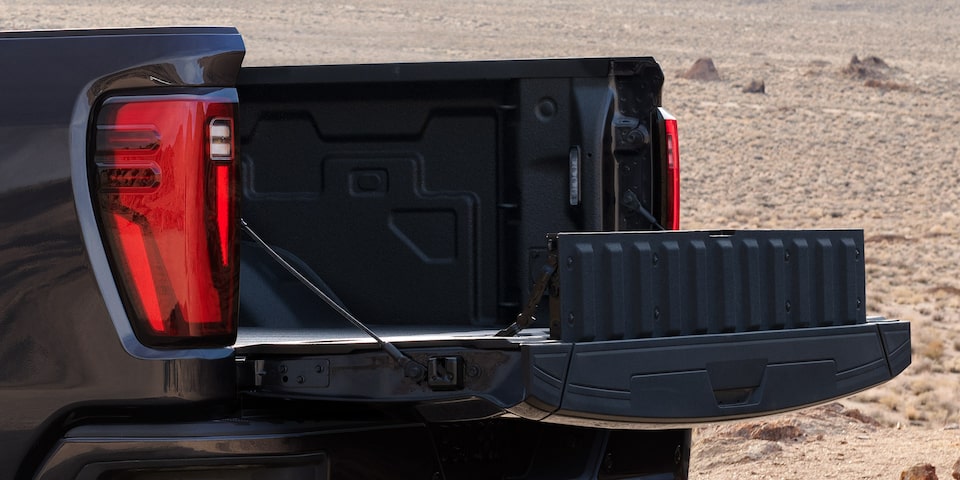

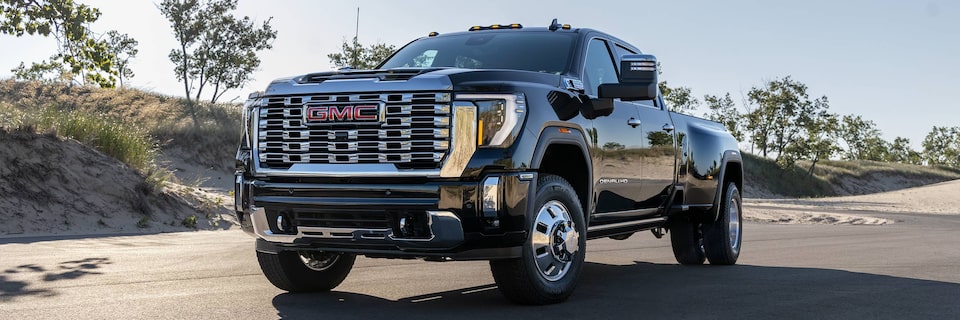

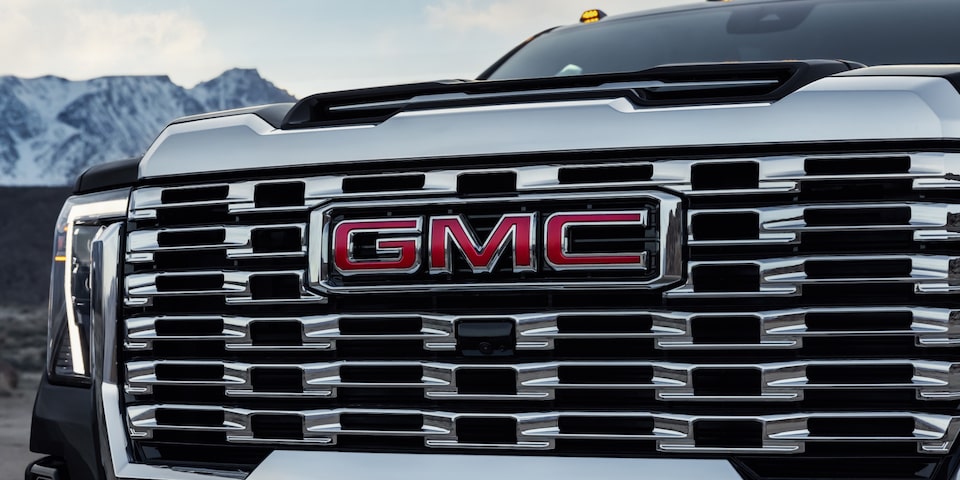

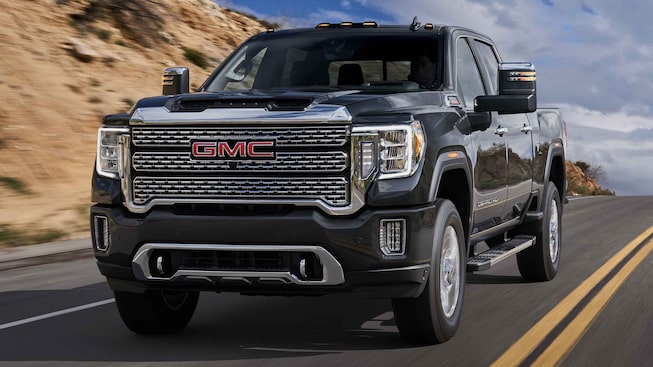

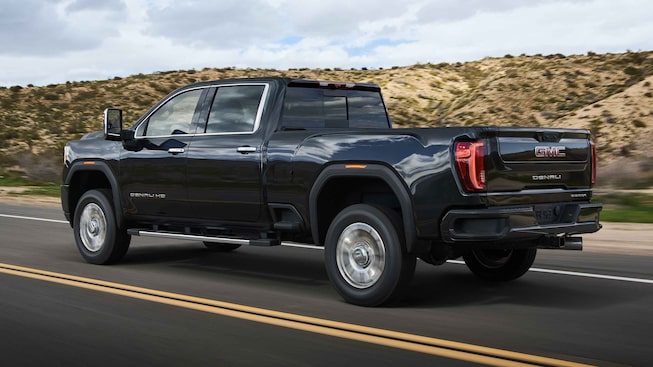

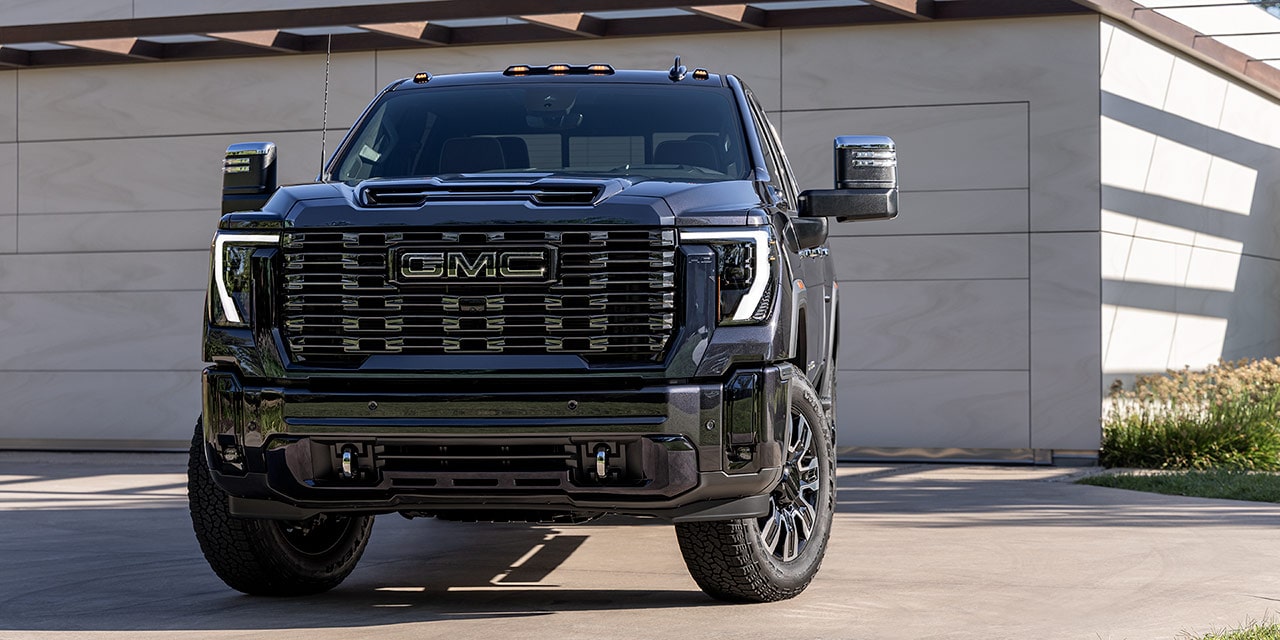

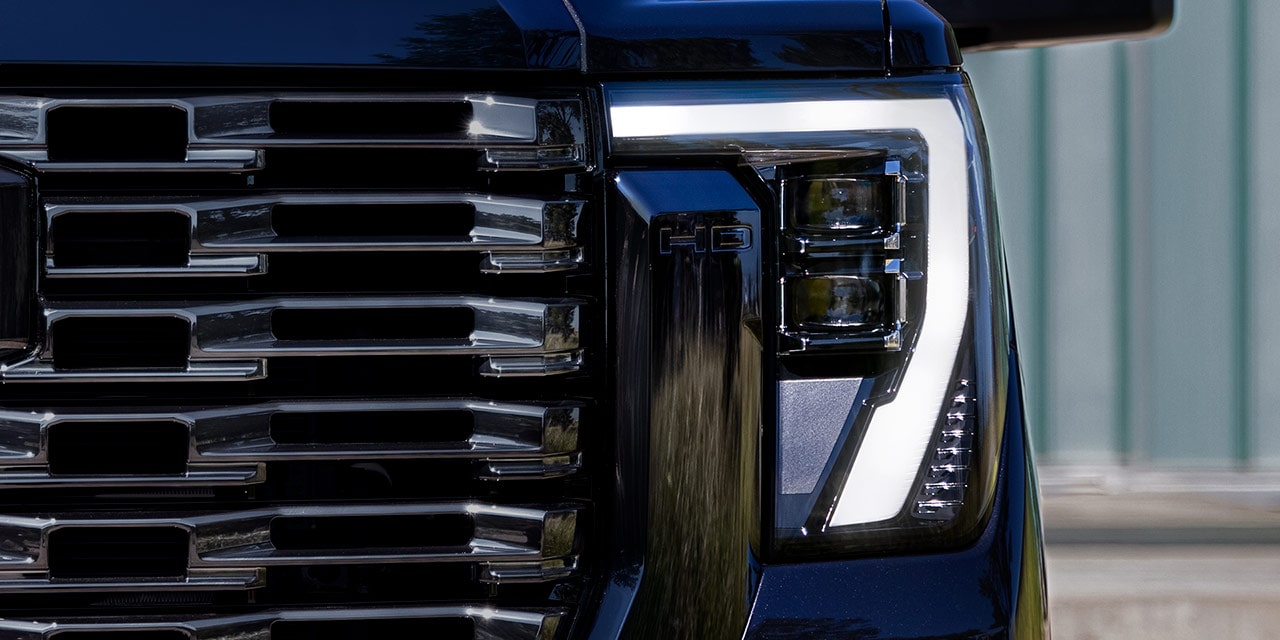

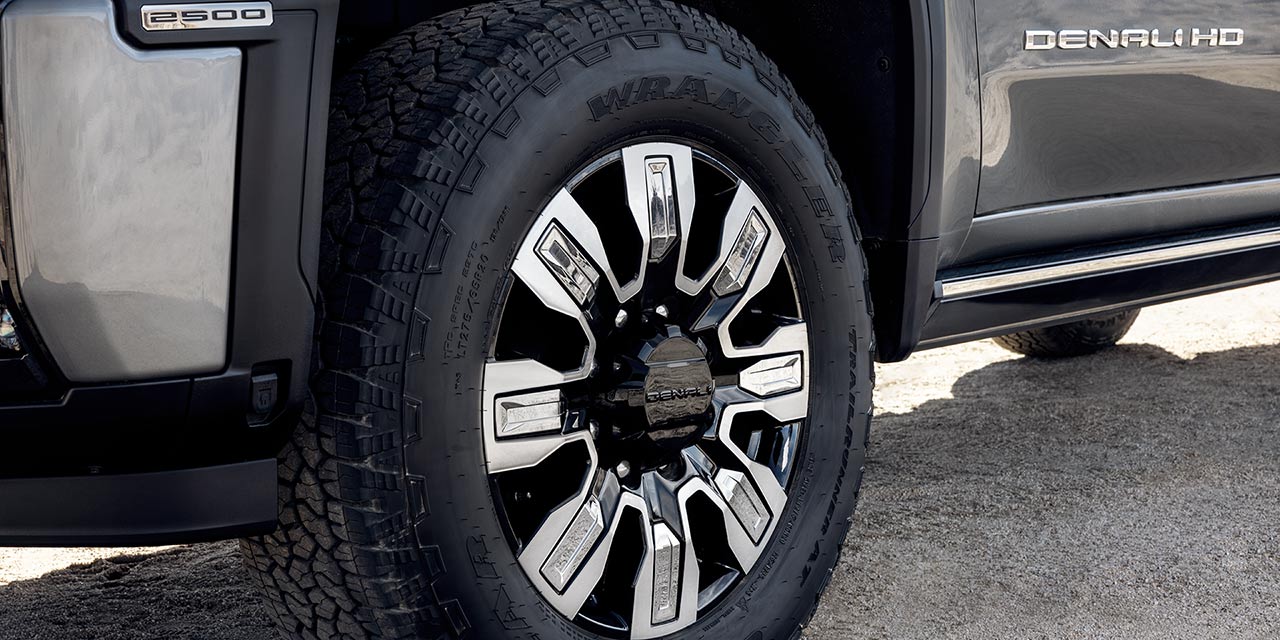

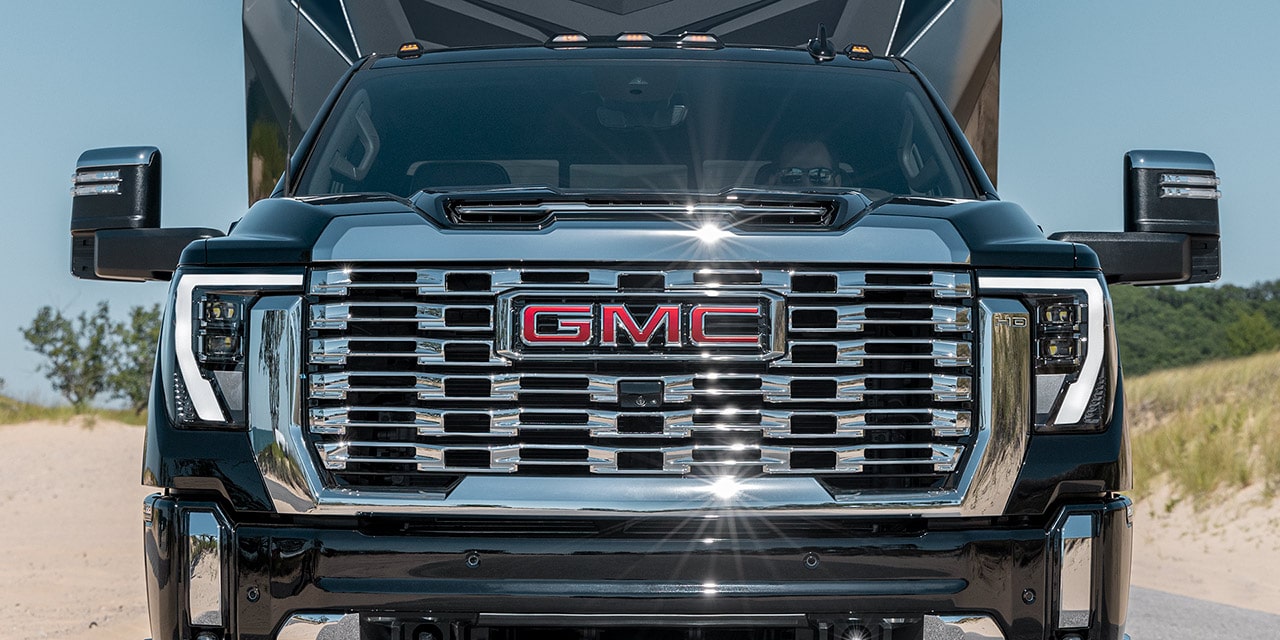

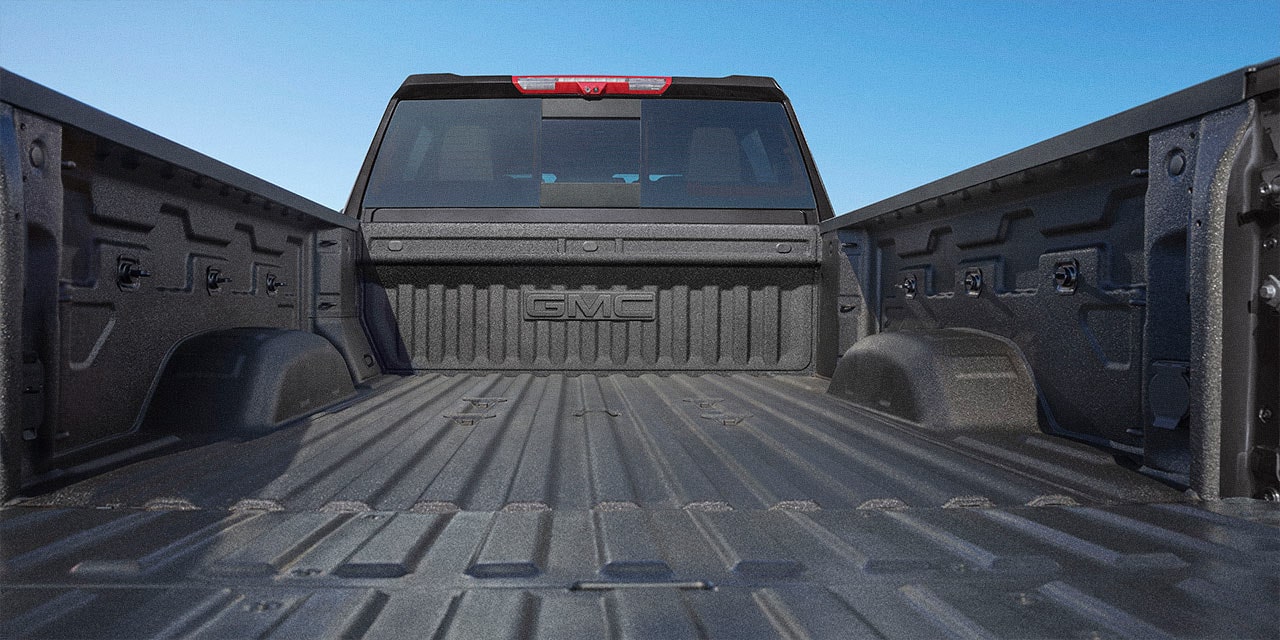

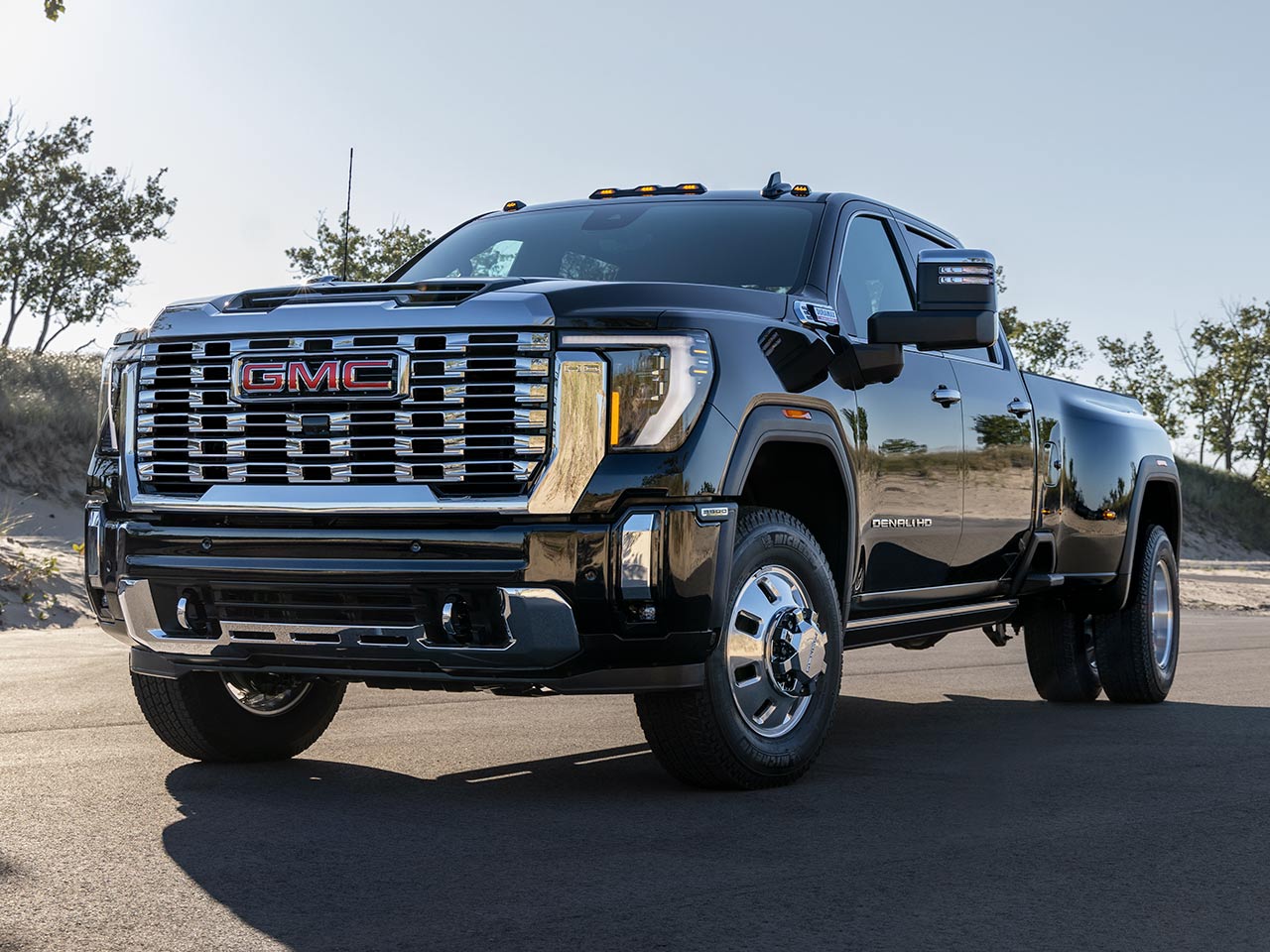

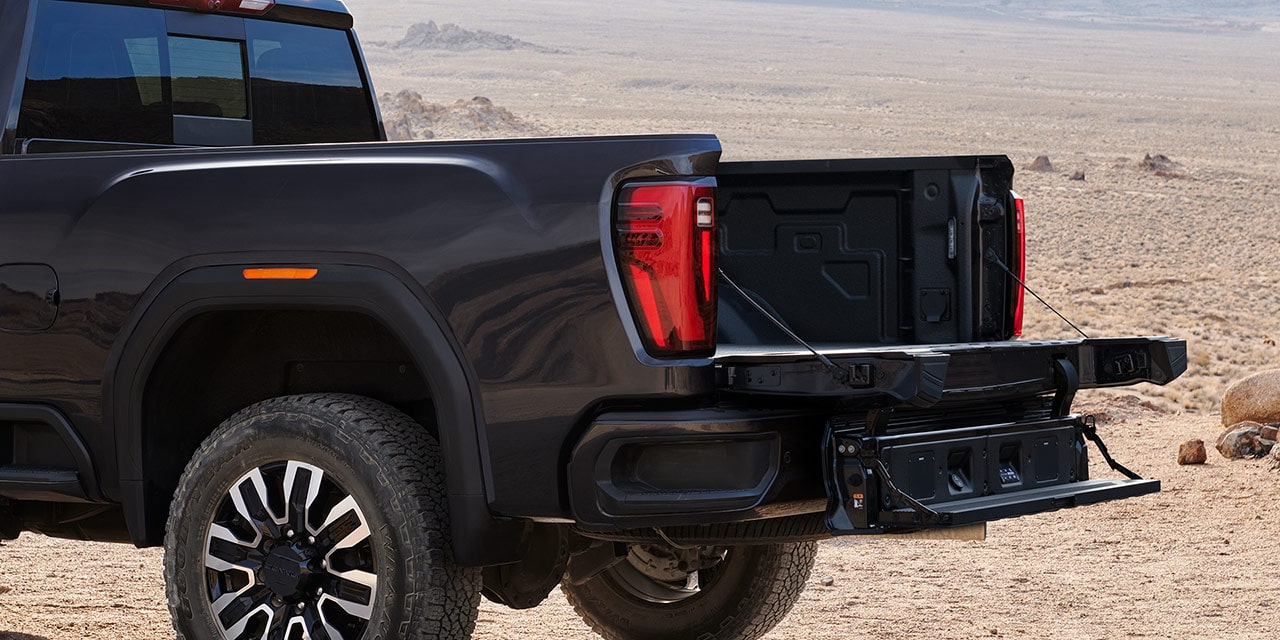

PURPOSE-BUILT EXTERIOR

With larger proportions than the previous generation, the bold exterior also features segment-exclusive standard Side Bed Step and best-in-class heavy-duty cargo volume.

MORE EXTERIOR FEATURES

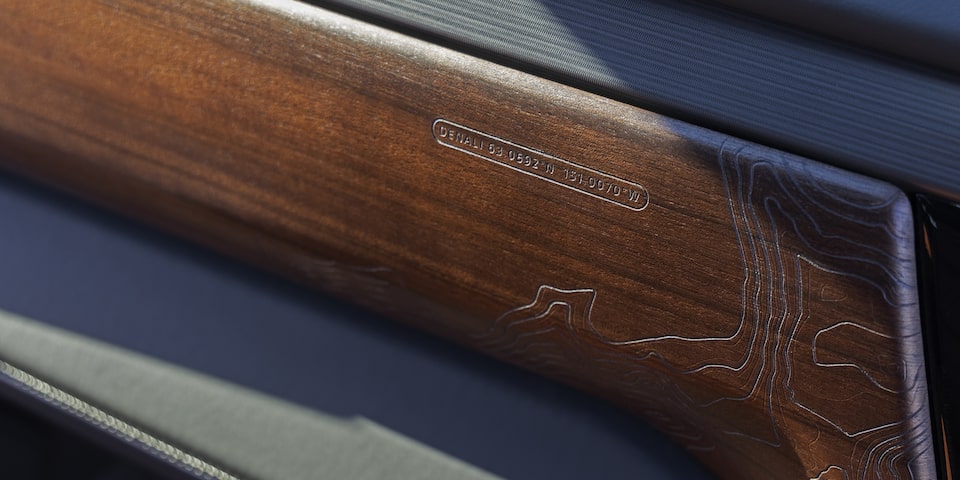

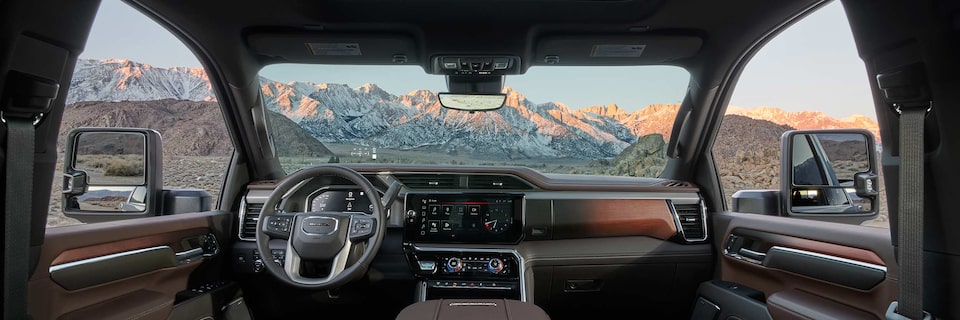

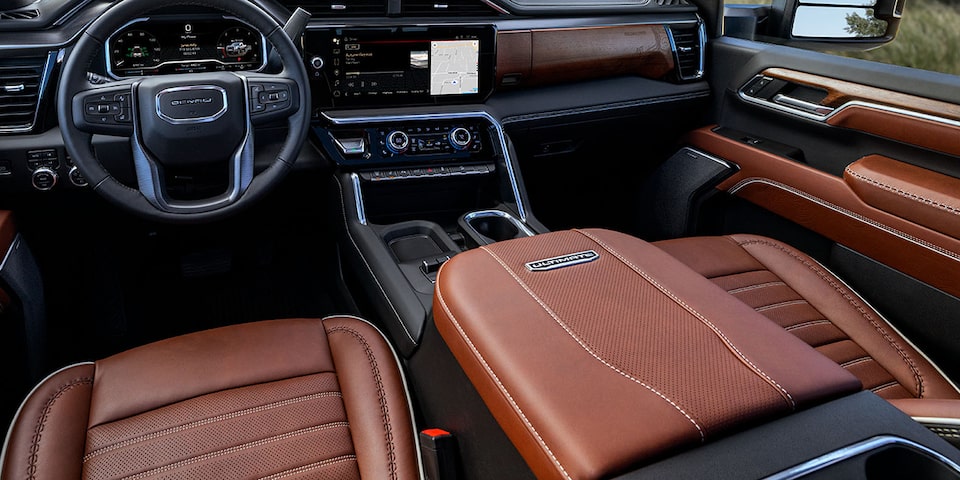

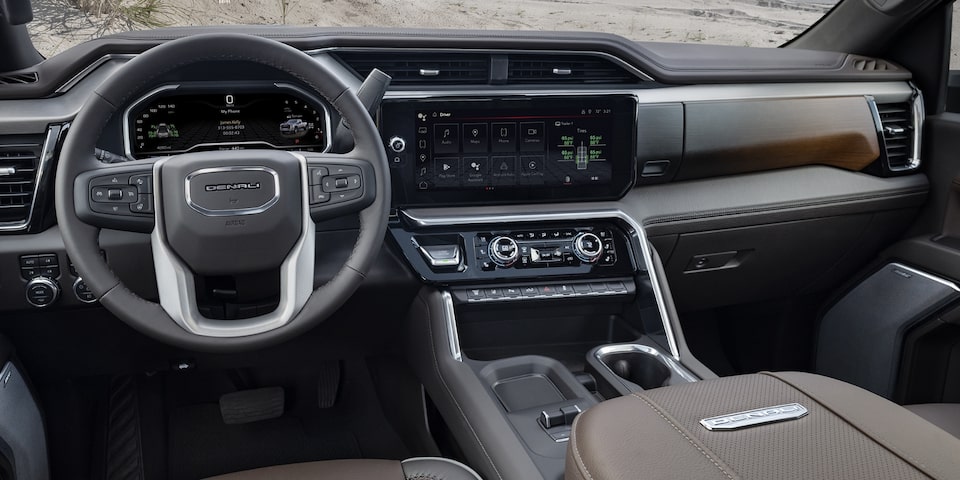

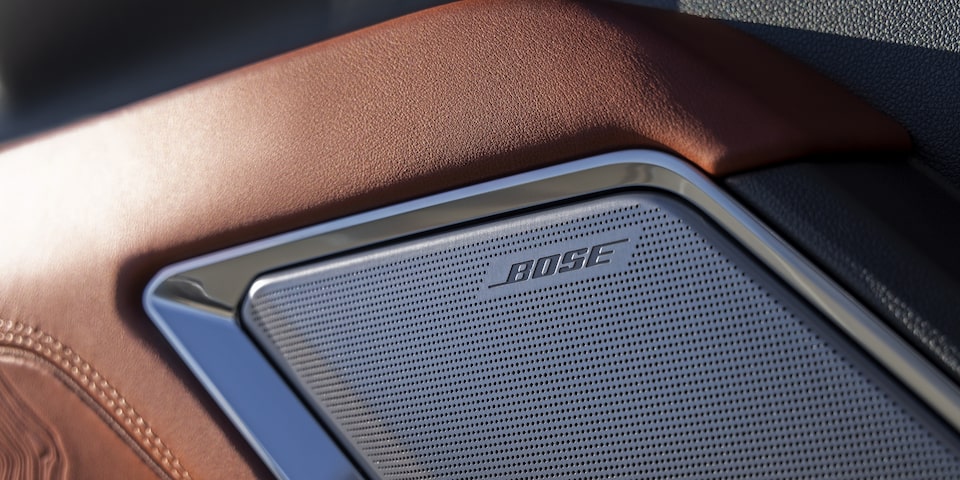

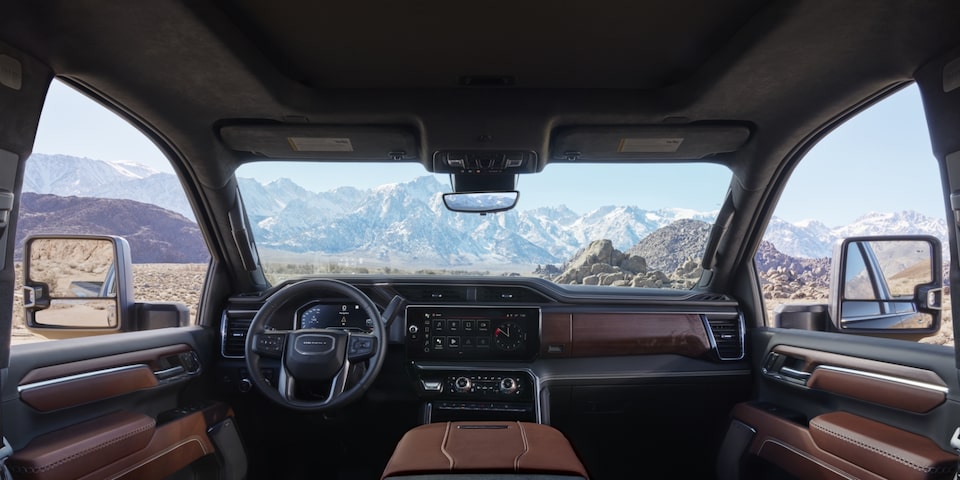

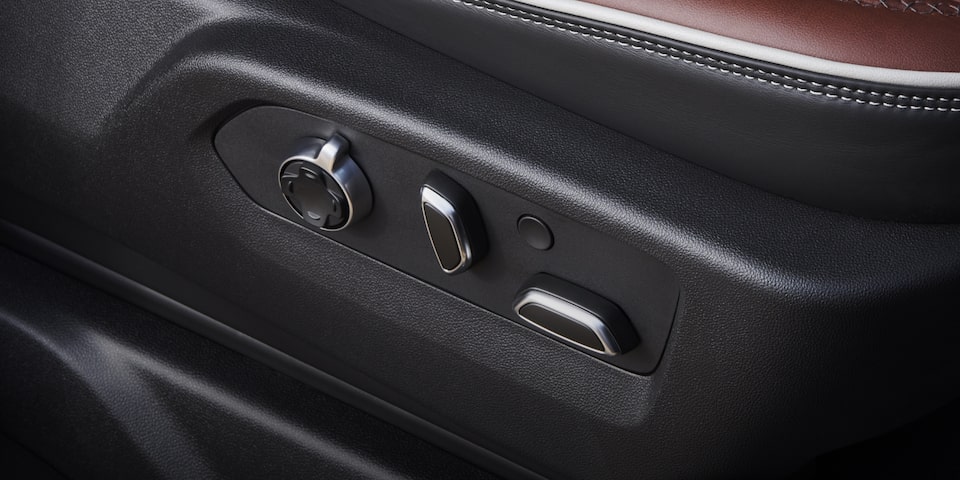

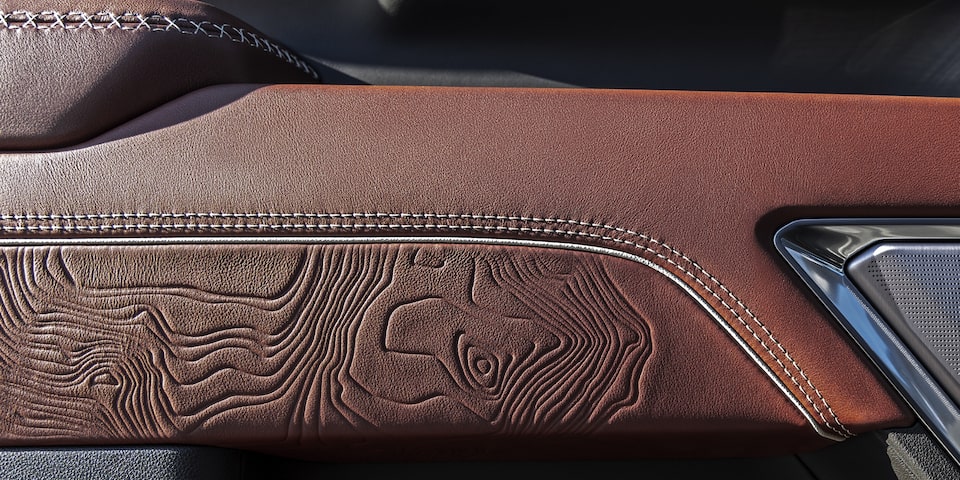

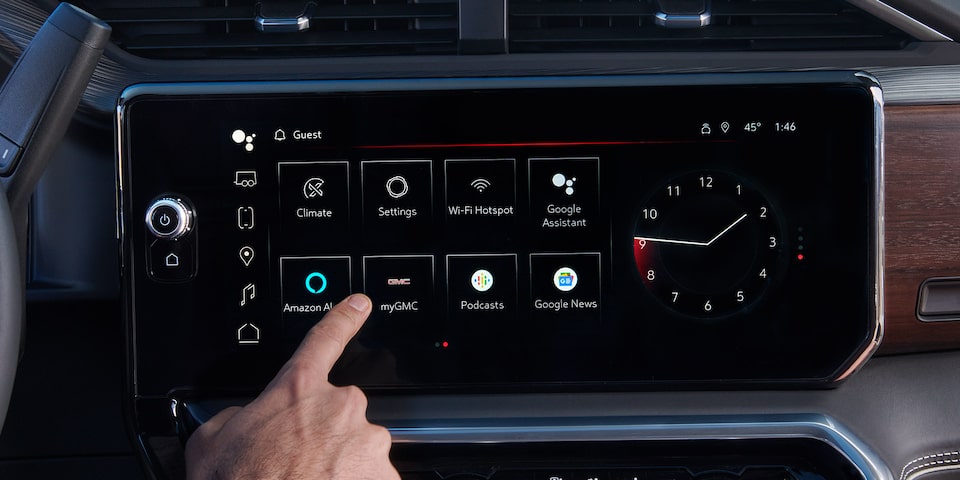

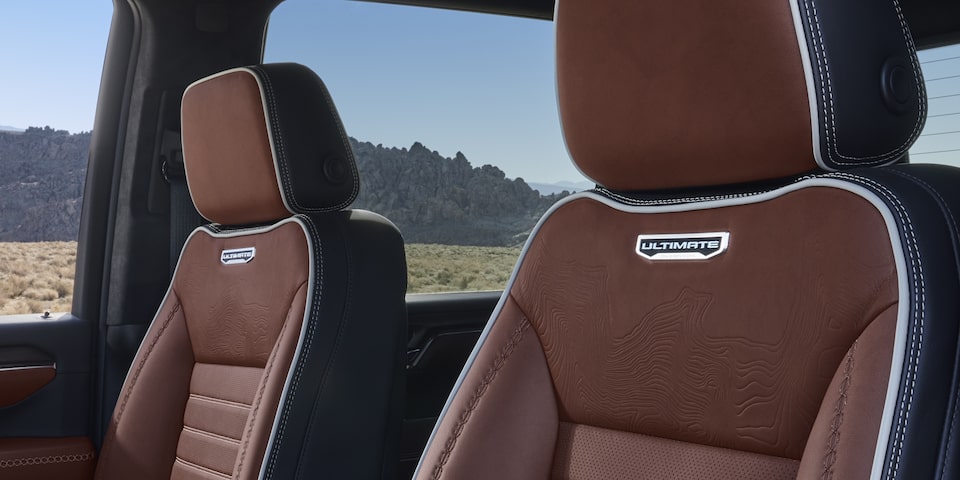

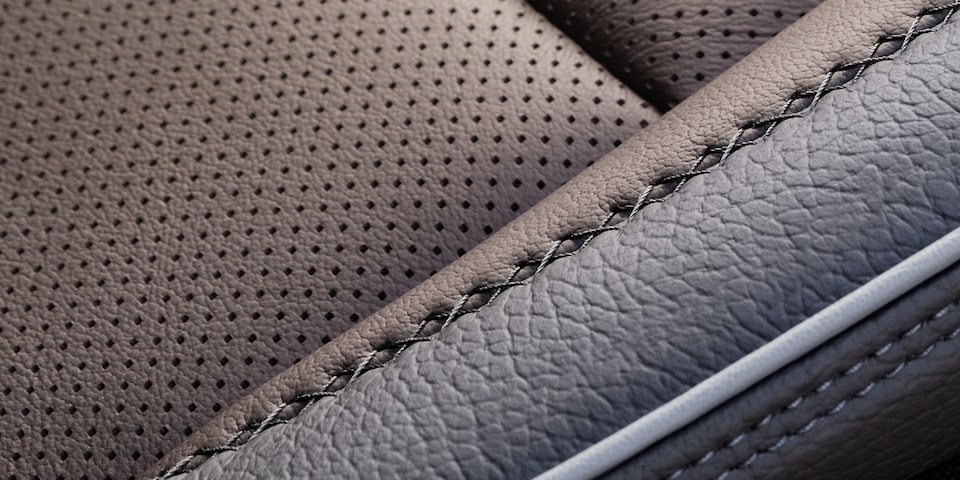

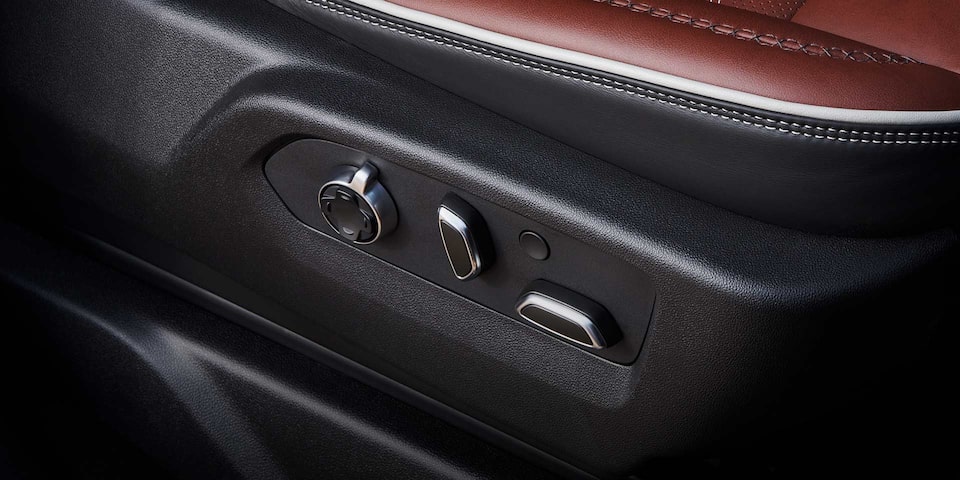

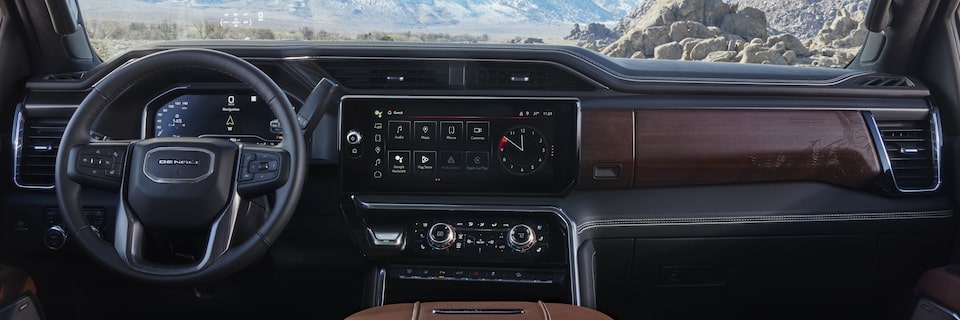

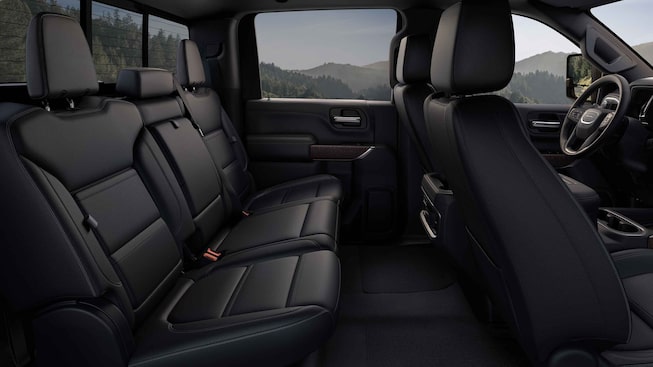

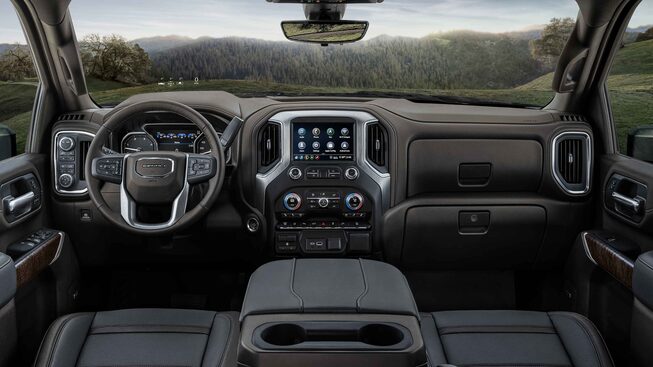

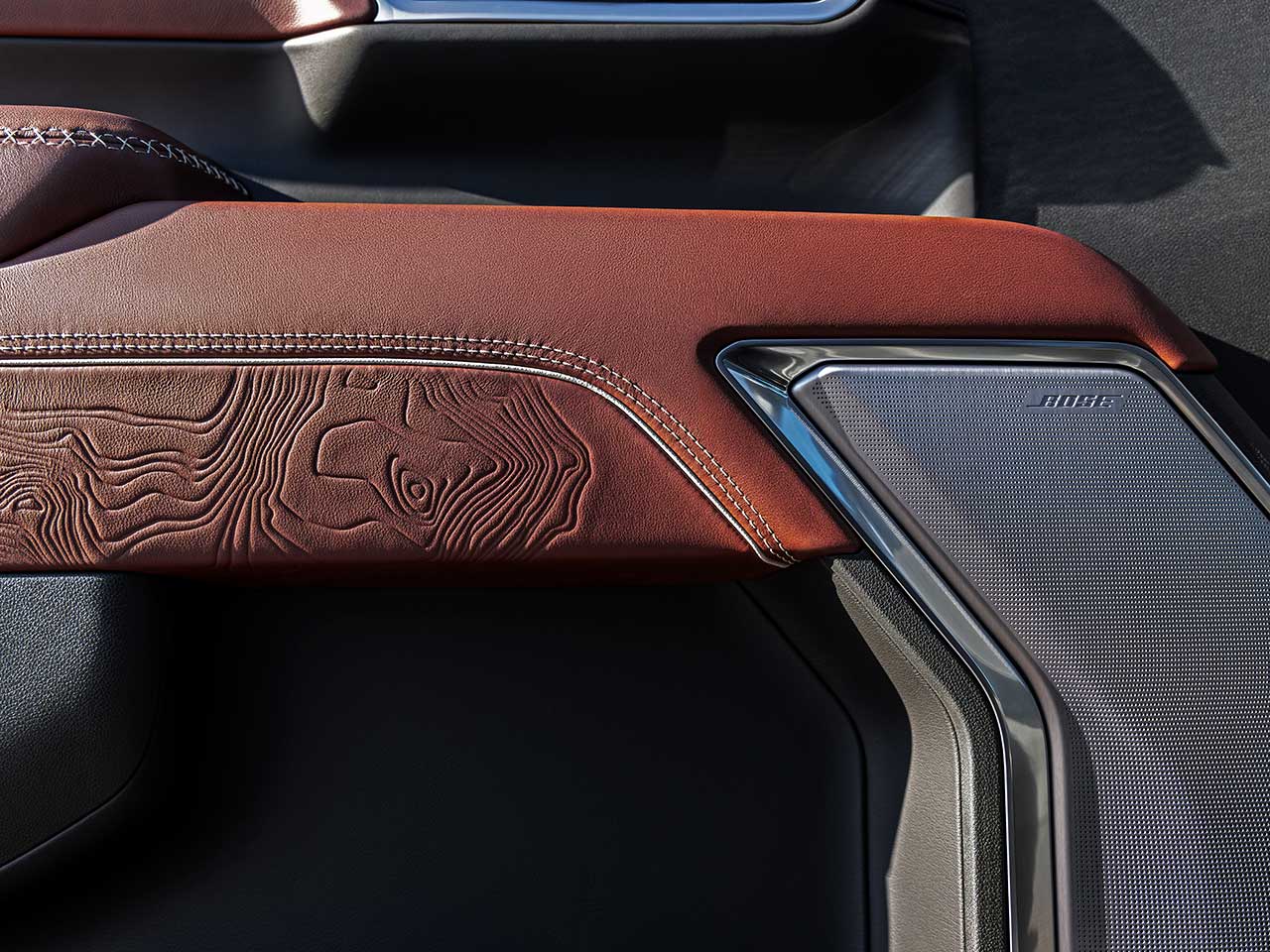

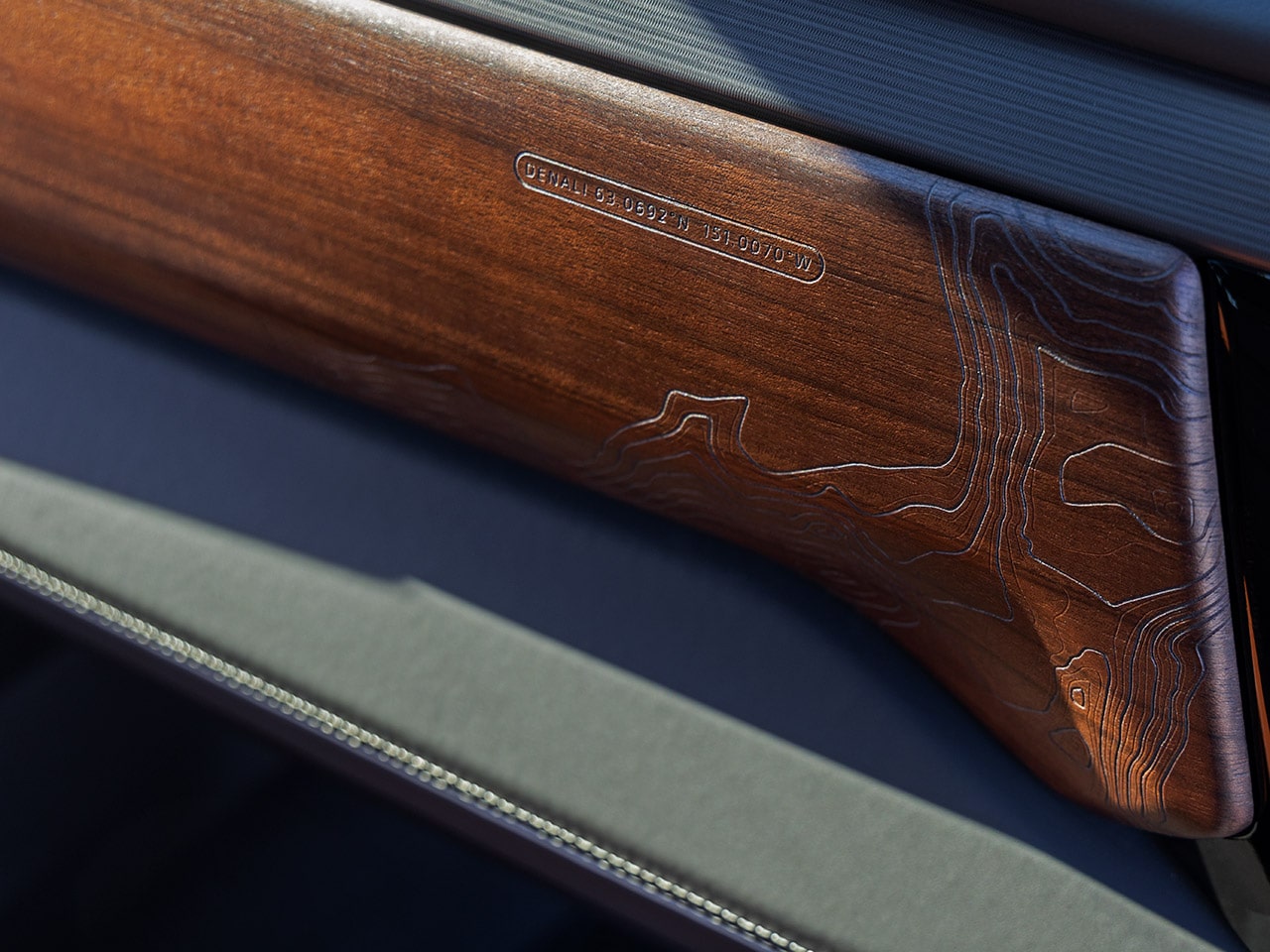

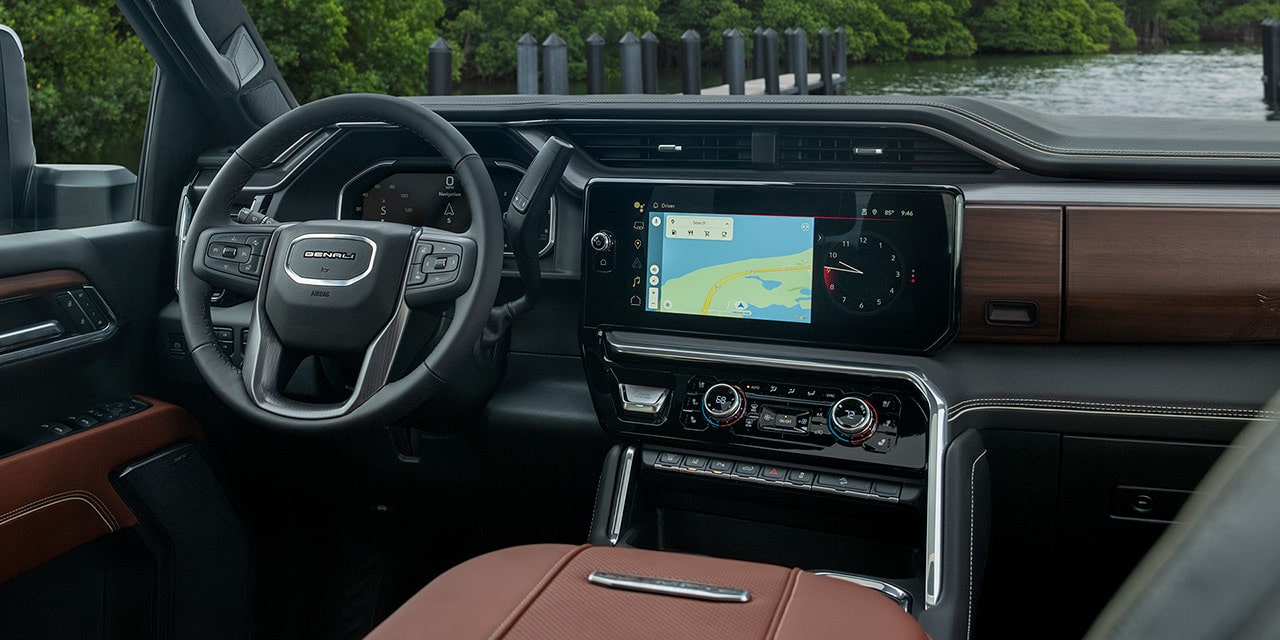

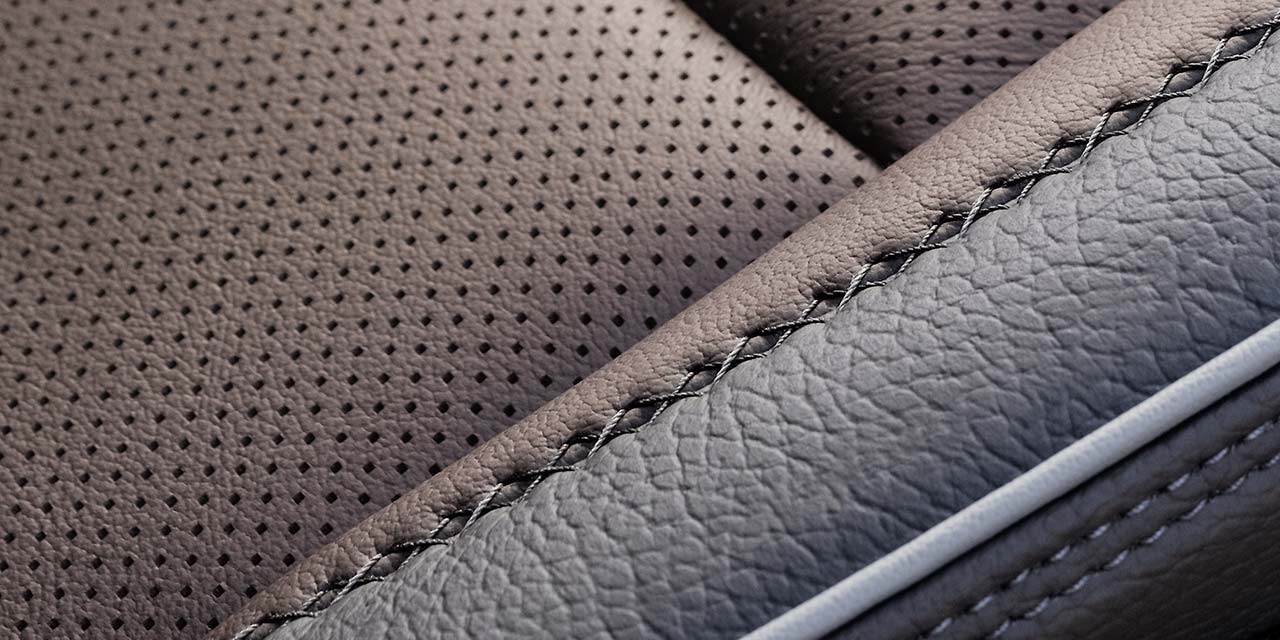

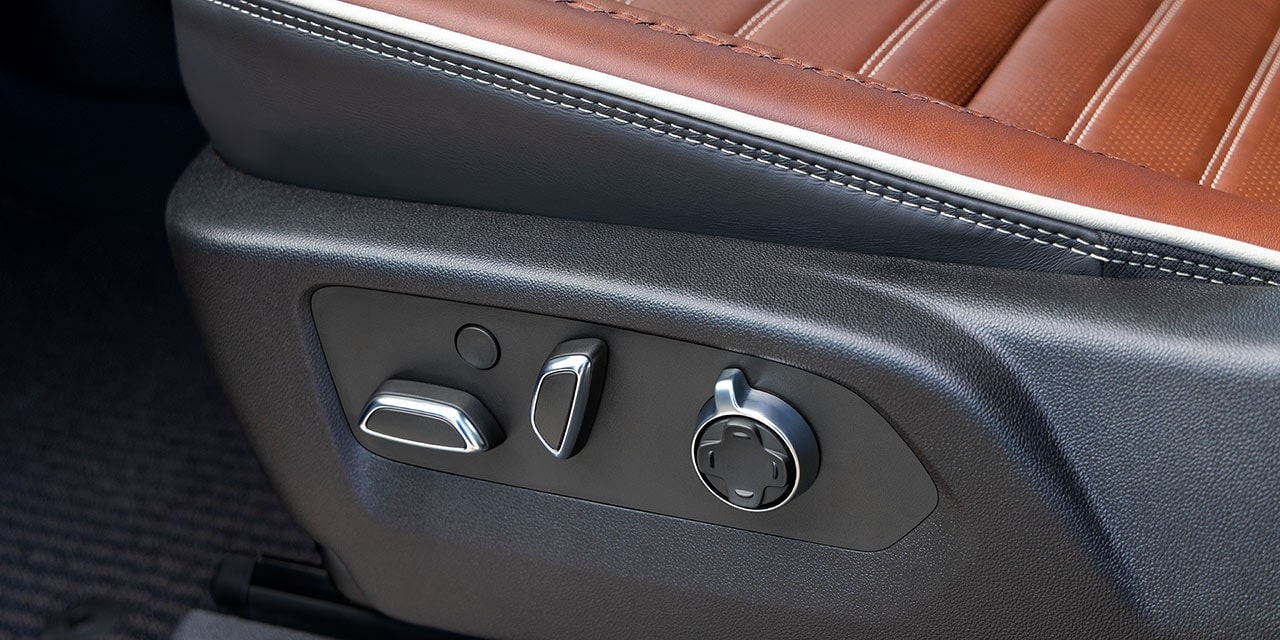

EXCLUSIVE PREMIUM INTERIOR

The comfortable cabin features driver-centric technolgies and exclusive premium materials and accents such as perforated Forge leather-appointed seating.

MORE INTERIOR FEATURES
