AVAILABLE BEST-IN-CLASS

MAX TOWING AT 36,000 LBS.

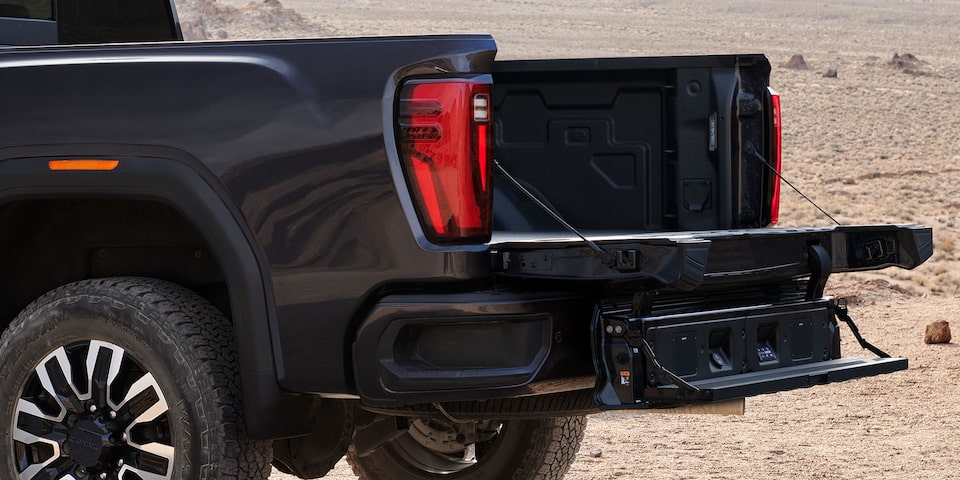

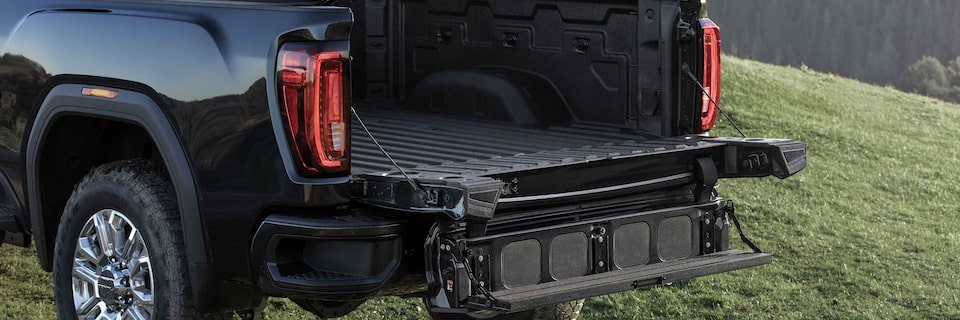

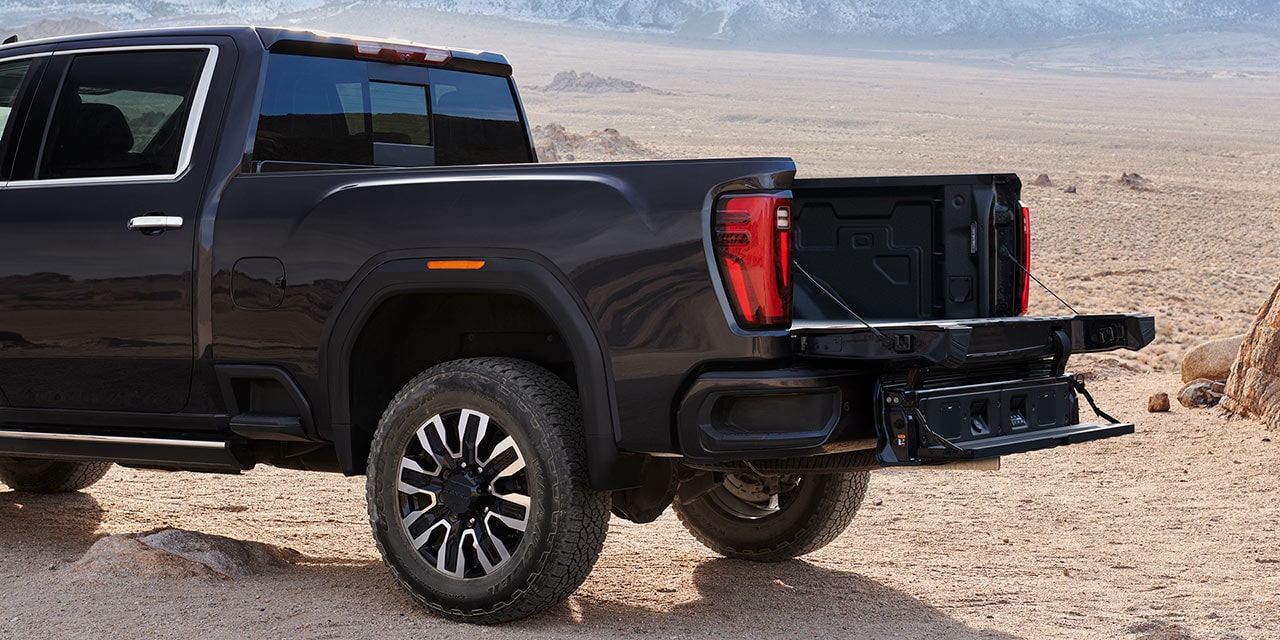

WORLD'S FIRST SIX-FUNCTION

MULTIPRO TAILGATE


FIRST HD IN ITS CLASS WITH AVAILABLE

ALLISON® 10-SPEED TRANSMISSION


BEST-IN-CLASS

HD CARGO BED VOLUME


BEST-IN-CLASS CREW CAB

FRONT HEAD & LEG ROOM (MAX.)


INDUSTRY-FIRST AVAILABLE

TRANSPARENT TRAILER VIEW

tbd

STARTING AT

$37,100

tbd

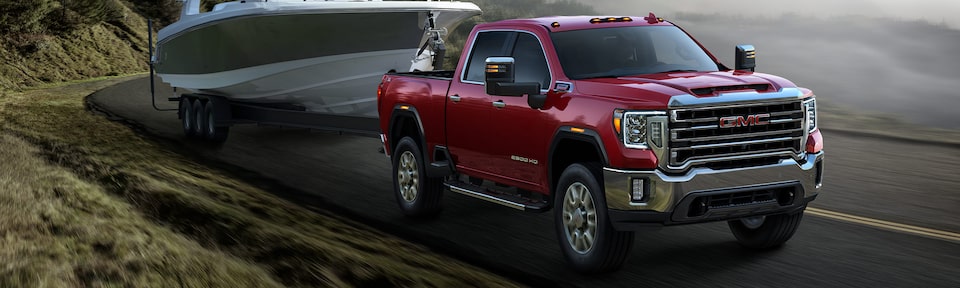

TOW UP TO

36,000 LBS

tbd

MAX PAYLOAD UP TO

7,442 LBS

tbd

MAX TORQUE UP TO

910 LB-FT

FEATURE HIGHLIGHTS

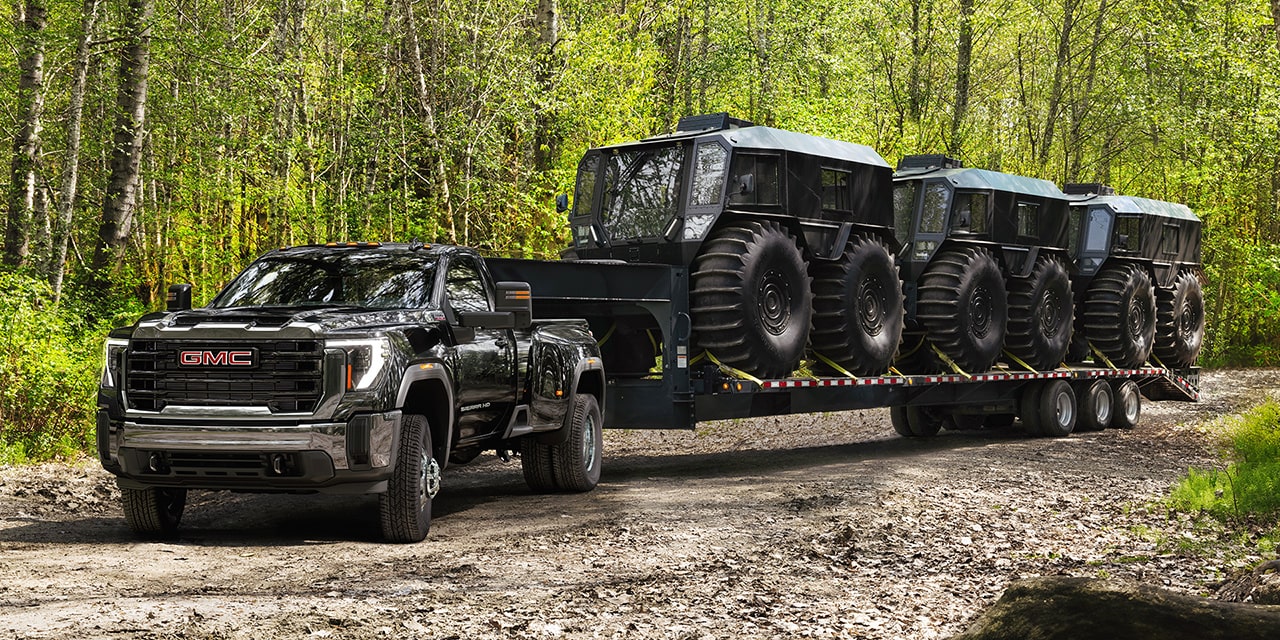

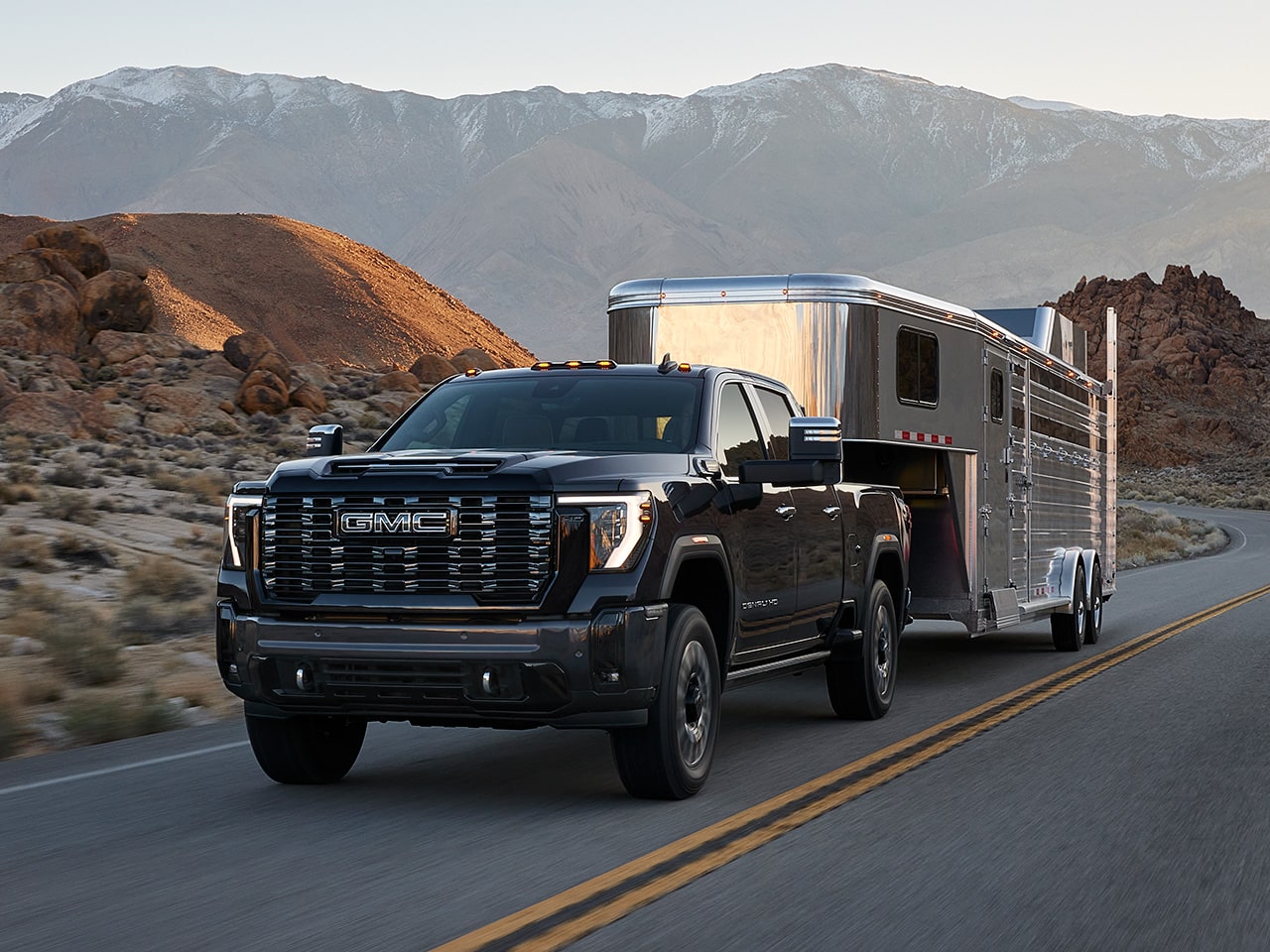

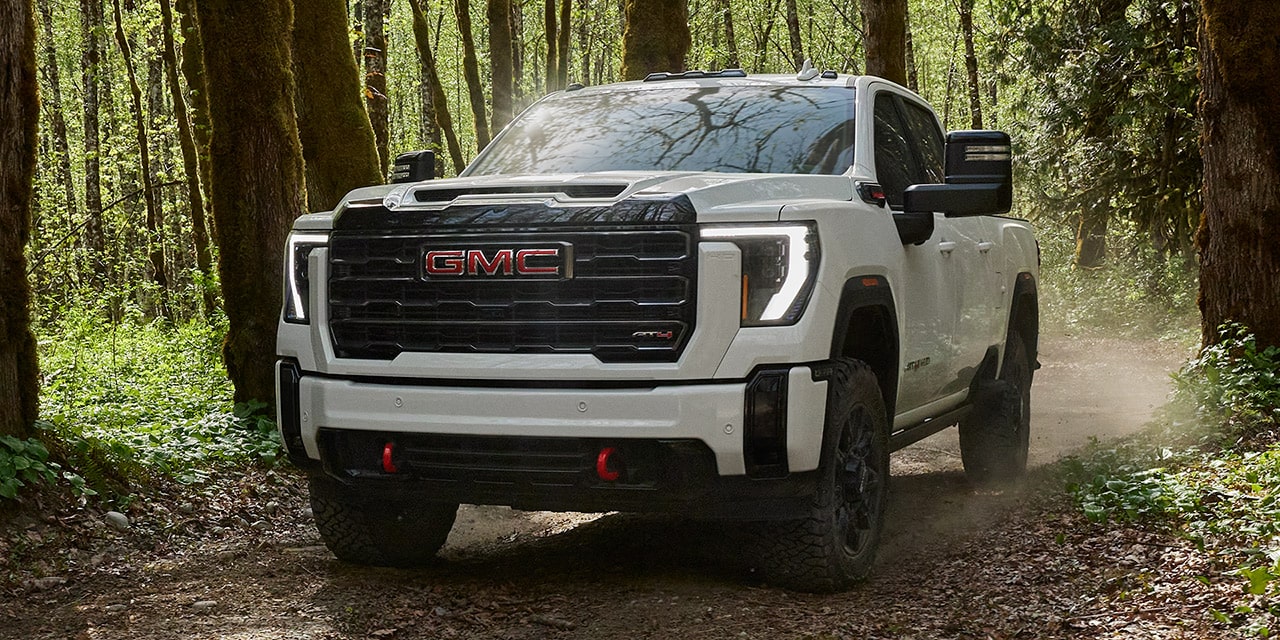

POWERFUL PERFORMANCE

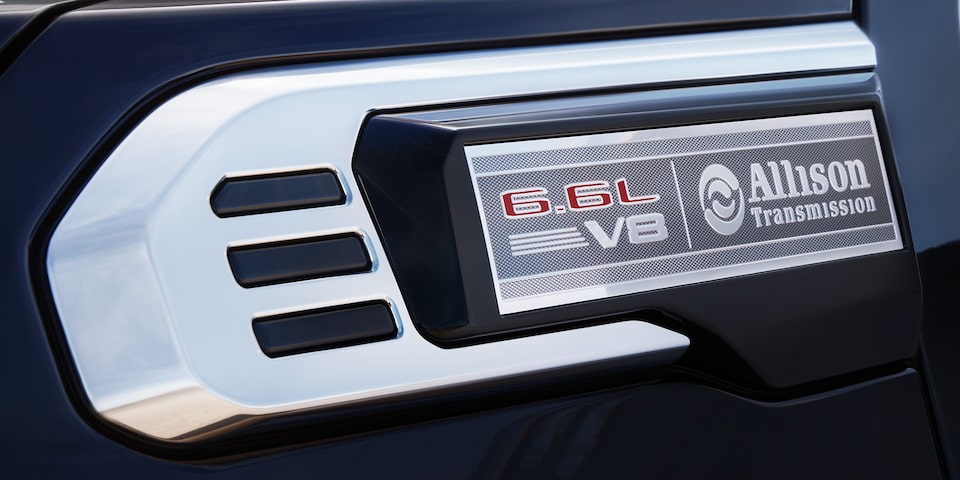

When you pair the available Allison® 10-speed automatic transmission with the available 6.6L Duramax® Turbo-Diesel V8 engine, you can tow with absolute command and control.

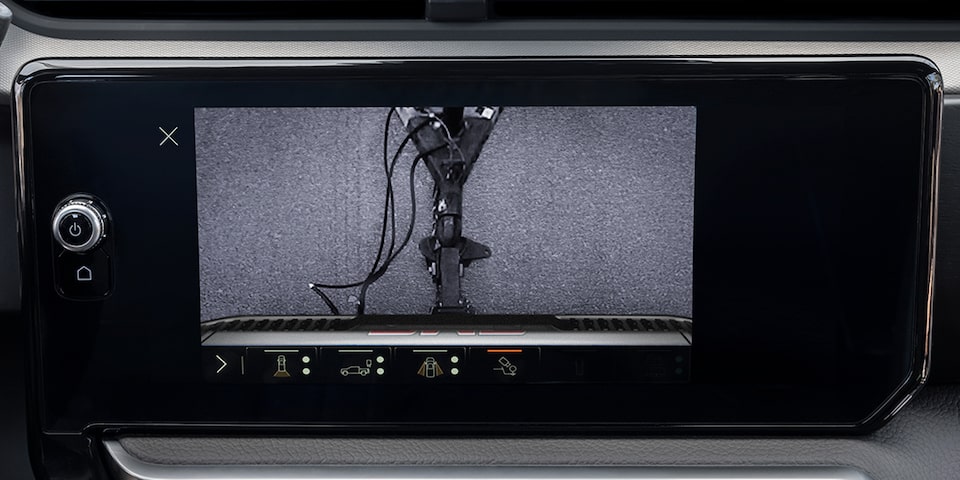

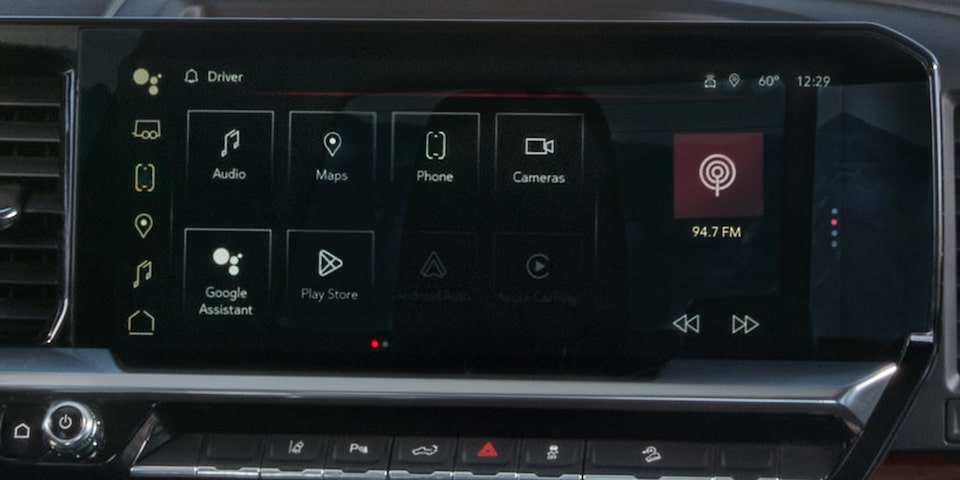

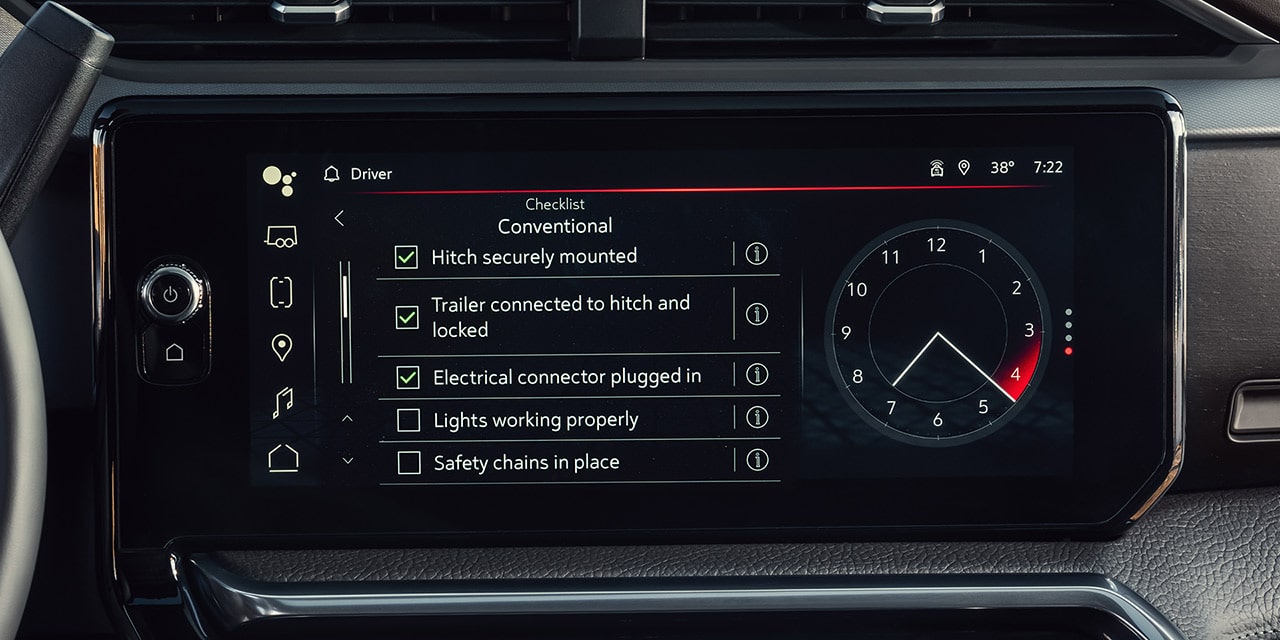

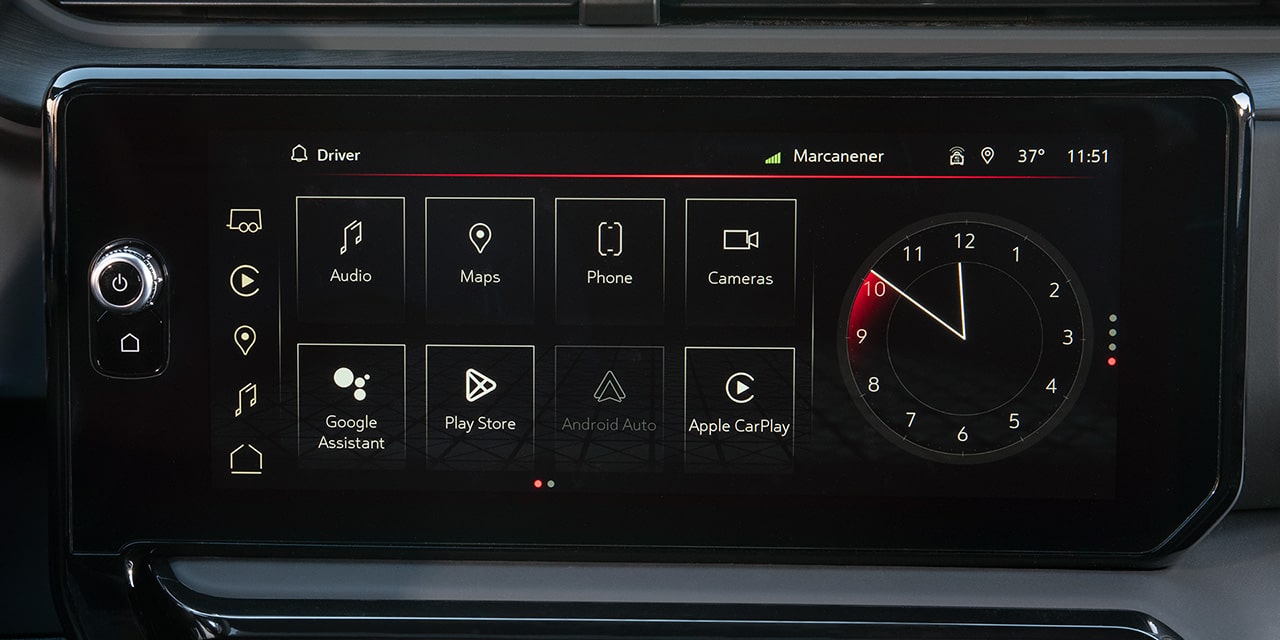

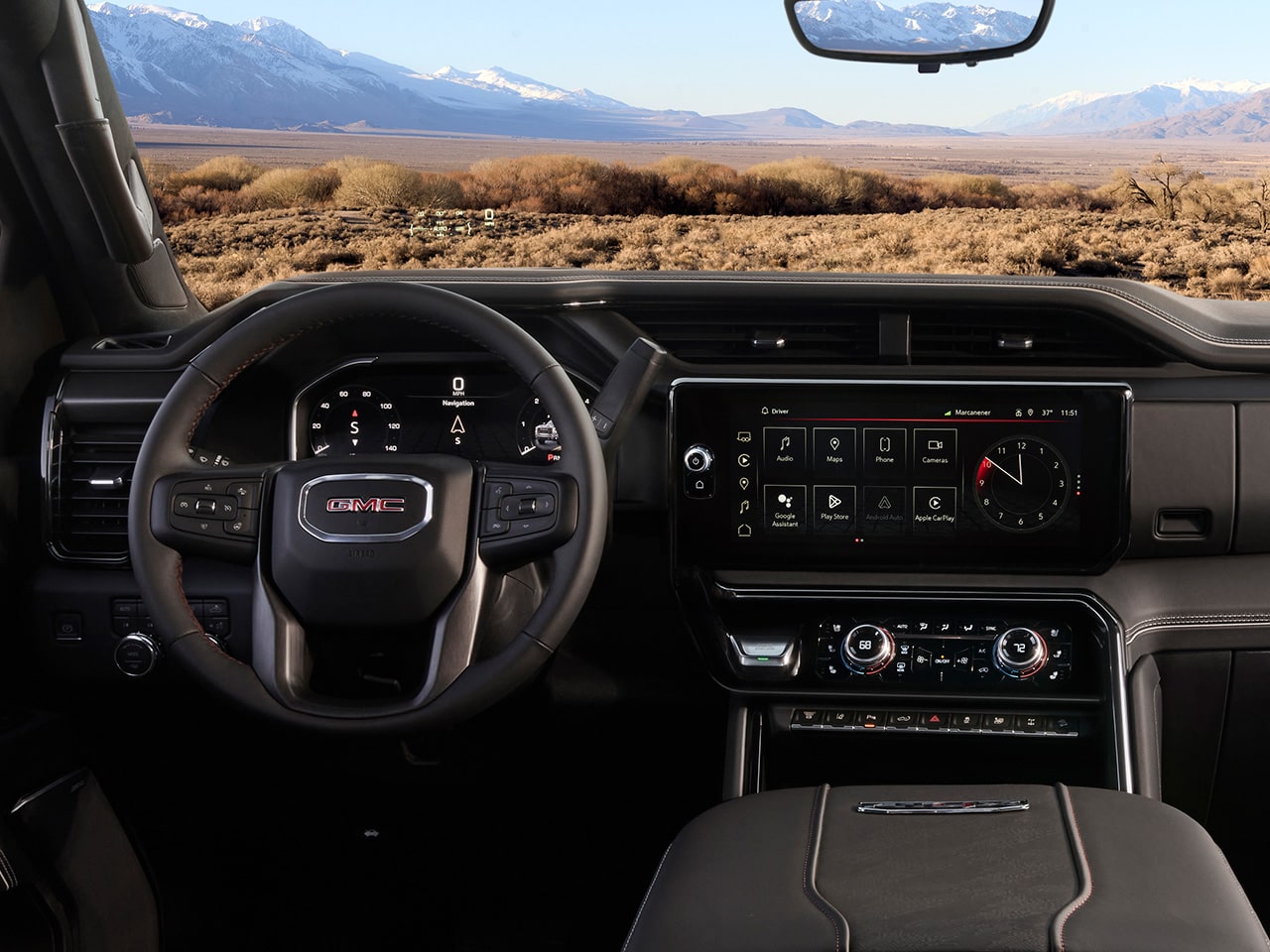

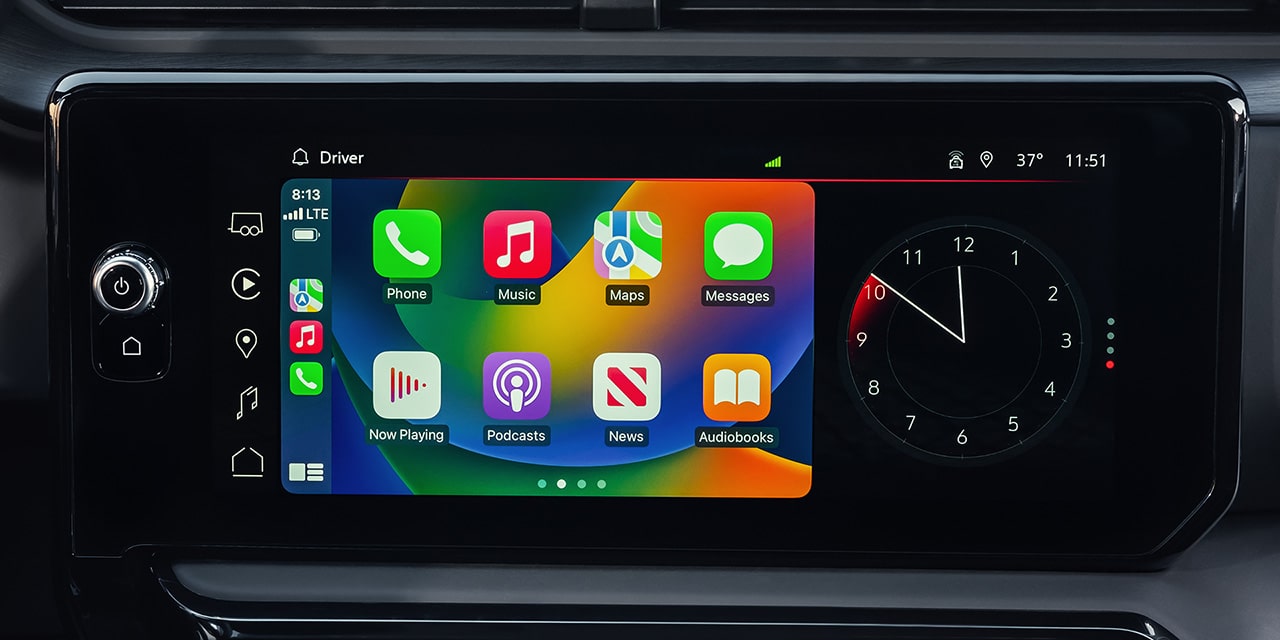

AVAILABLE IN-VEHICLE TRAILERING APP

Integrated into the Infotainment screen, the different available camera views let you easily keep tabs on your truck and trailer while the in-vehicle Trailering App provides a Trailer Light Sequence Test, an available Trailer Tire Pressure and Temperature Monitoring System, and more.

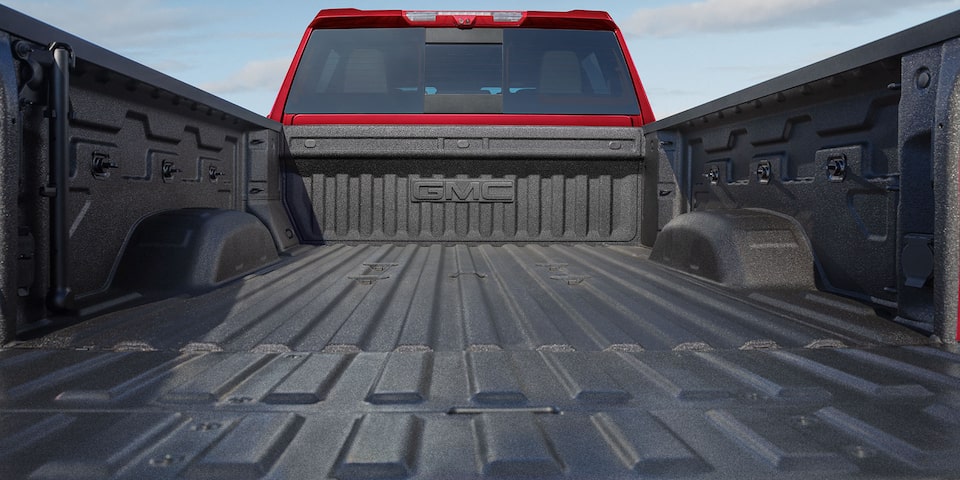

BEST-IN-CLASS HEAVY-DUTY CARGO BED VOLUME

The roll-formed high-strength steel bed with available durable spray-on bedliner features 12 cargo tie-downs and offers best-in-class heavy-duty cargo bed volume of 69.6–83.5 cu. ft.

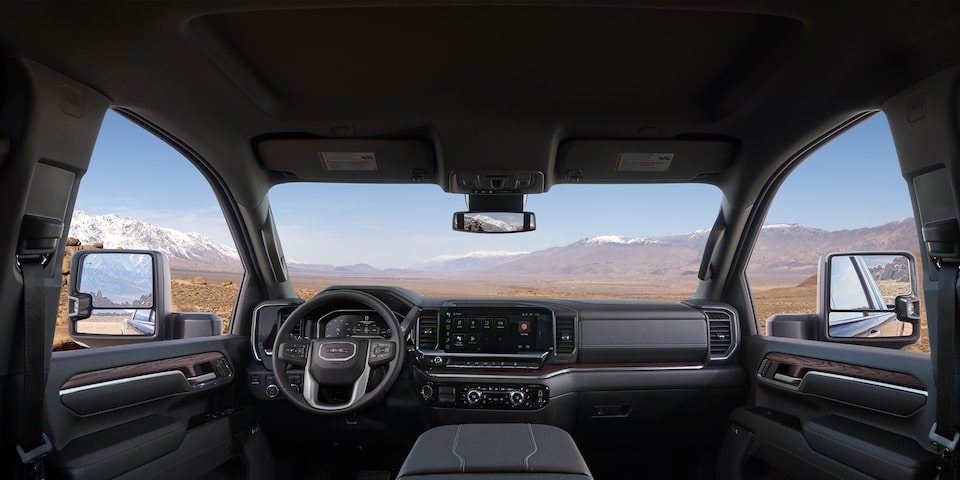

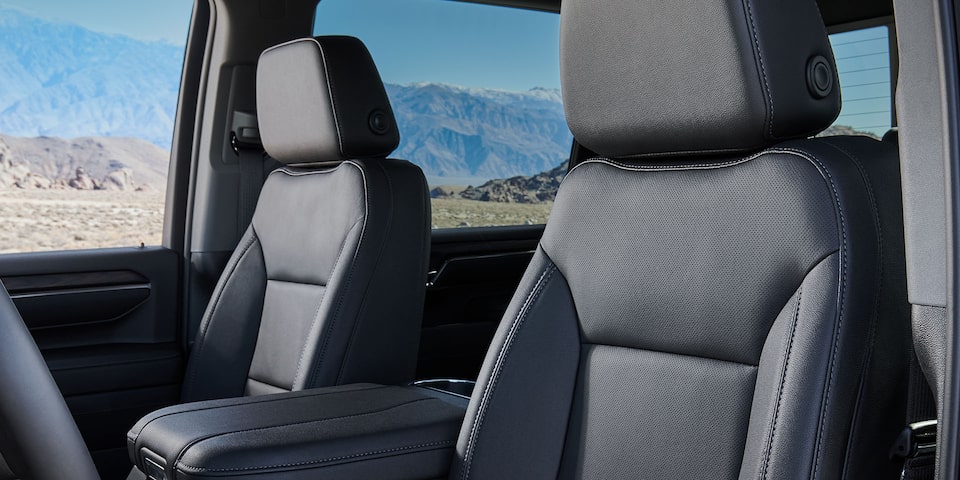

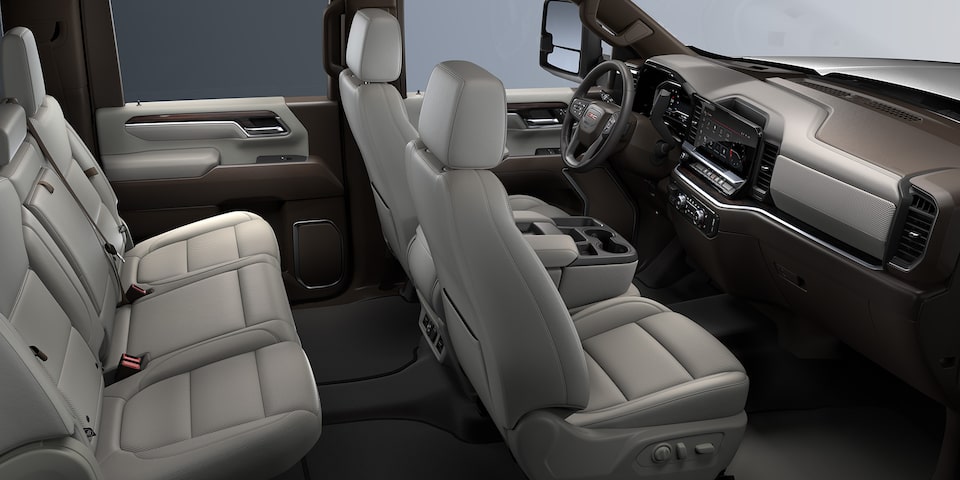

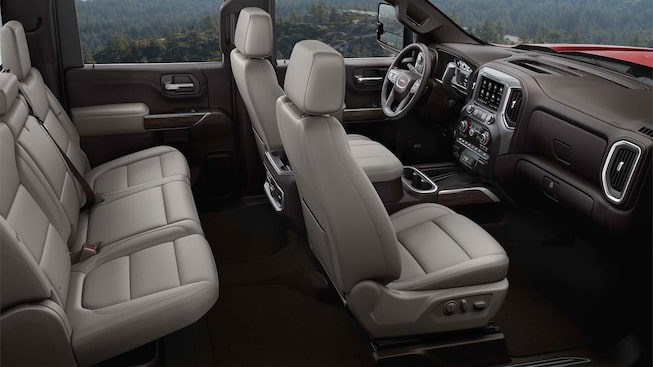

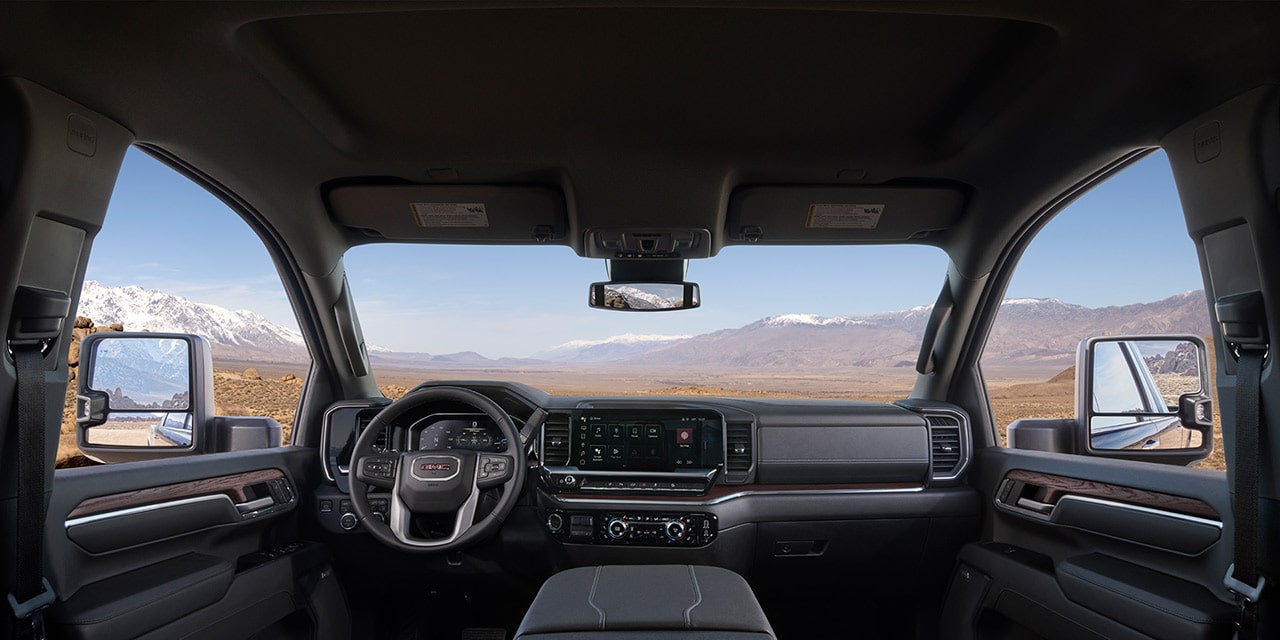

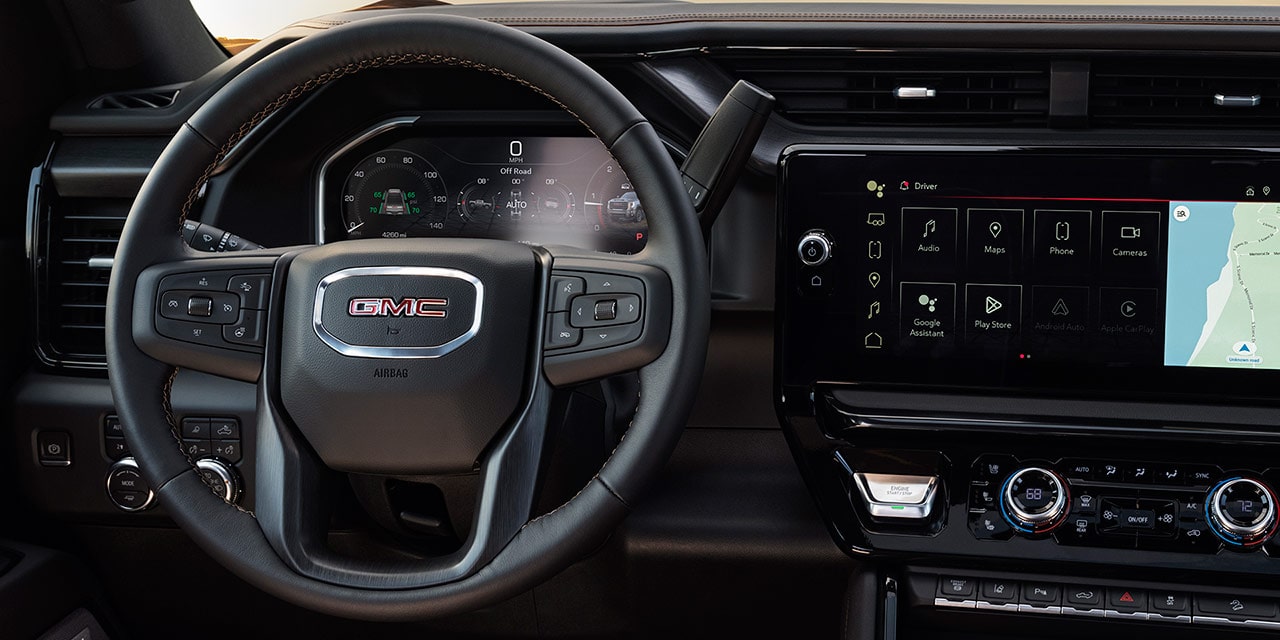

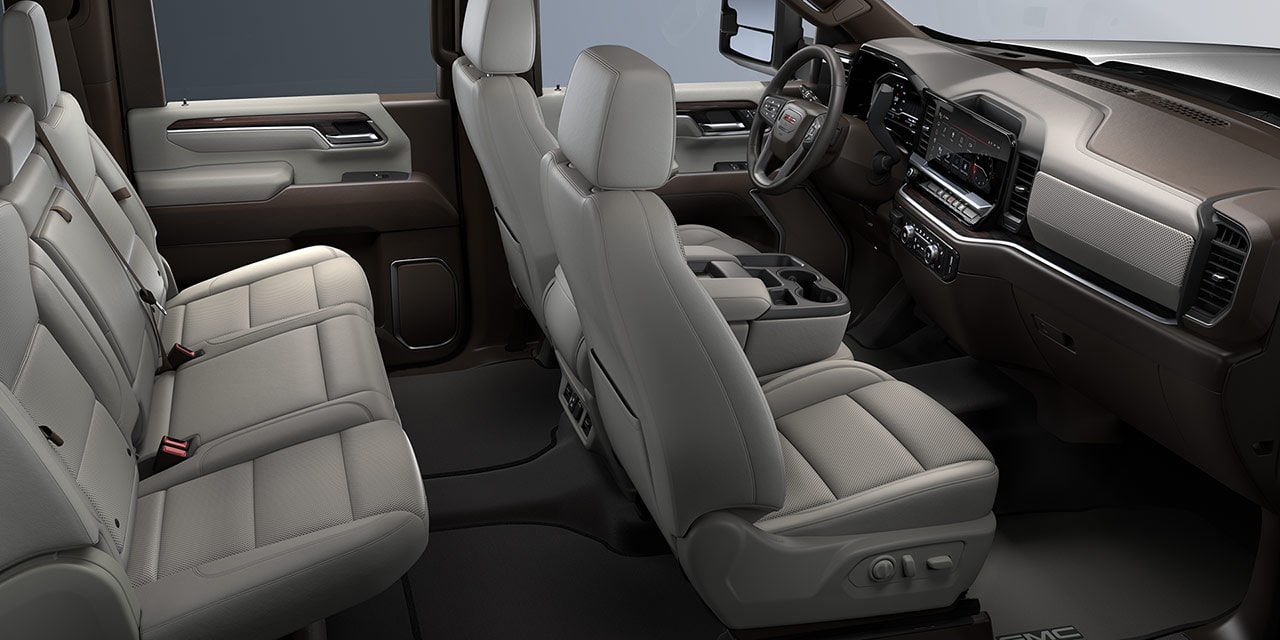

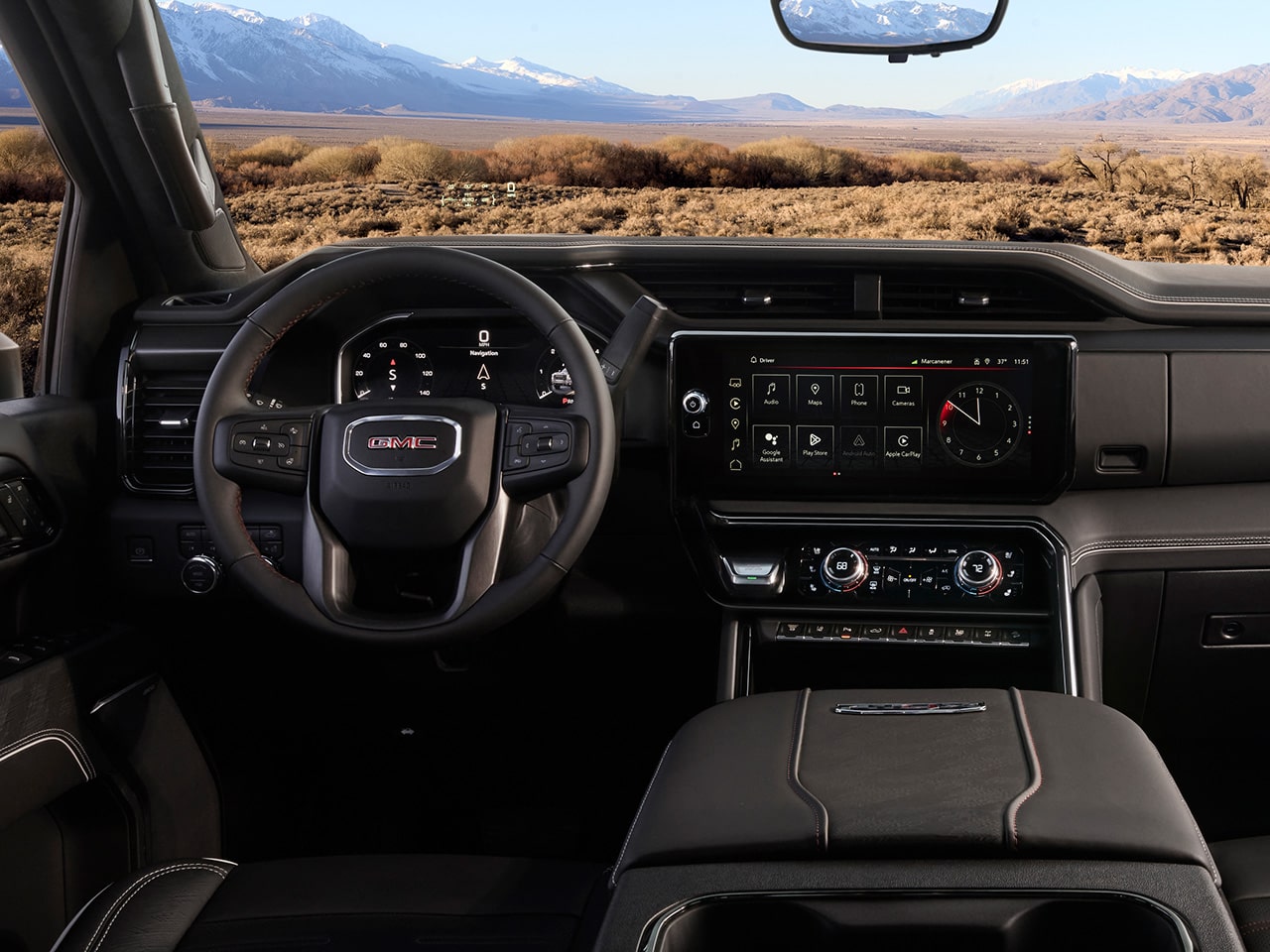

BEST-IN-CLASS CREW CAB FRONT HEAD AND LEG ROOM

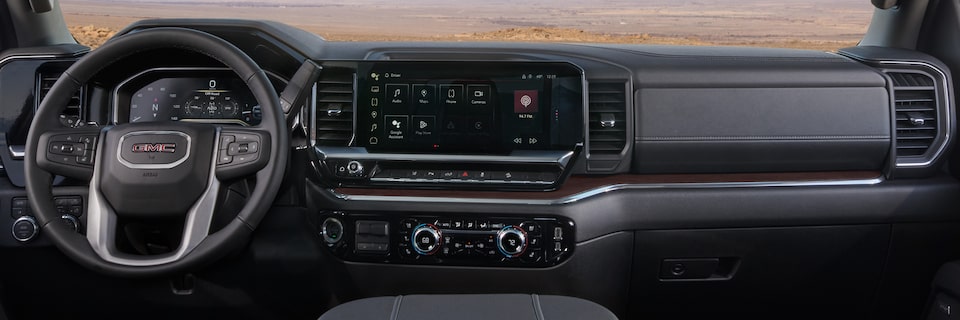

The spacious Crew Cab interior cabin features premium materials with class-leading 43" of front head room and 44.5" of front leg room.

2500 VS 3500

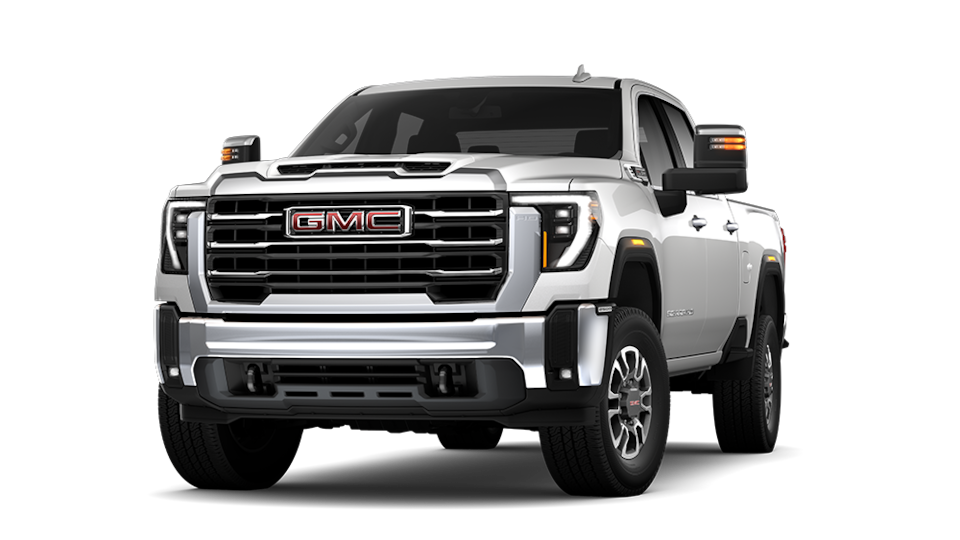

SIERRA 2500 HEAVY DUTY

  • Maximum conventional trailering capacity of up to 18,500 lbs (As Shown 14,500 lbs)
  • Maximum fifth-wheel/gooseneck rating of up to 18,510 lbs (As shown 16,620 lbs)
  • Maximum payload of up to 3,979 lbs (As shown 3,760 lbs)

SIERRA 3500 HEAVY DUTY

  • Maximum conventional trailering capacity of up to 36,000 lbs (As shown 20,000 lbs)
  • Maximum fifth-wheel/gooseneck rating of up to 35,500 lbs (As Shown 21,300 lbs)
  • Maximum payload of up to 7,442 lbs (As Shown 4,185 lbs)

SIERRA 2500 HEAVY DUTY SPEC HIGHLIGHTS

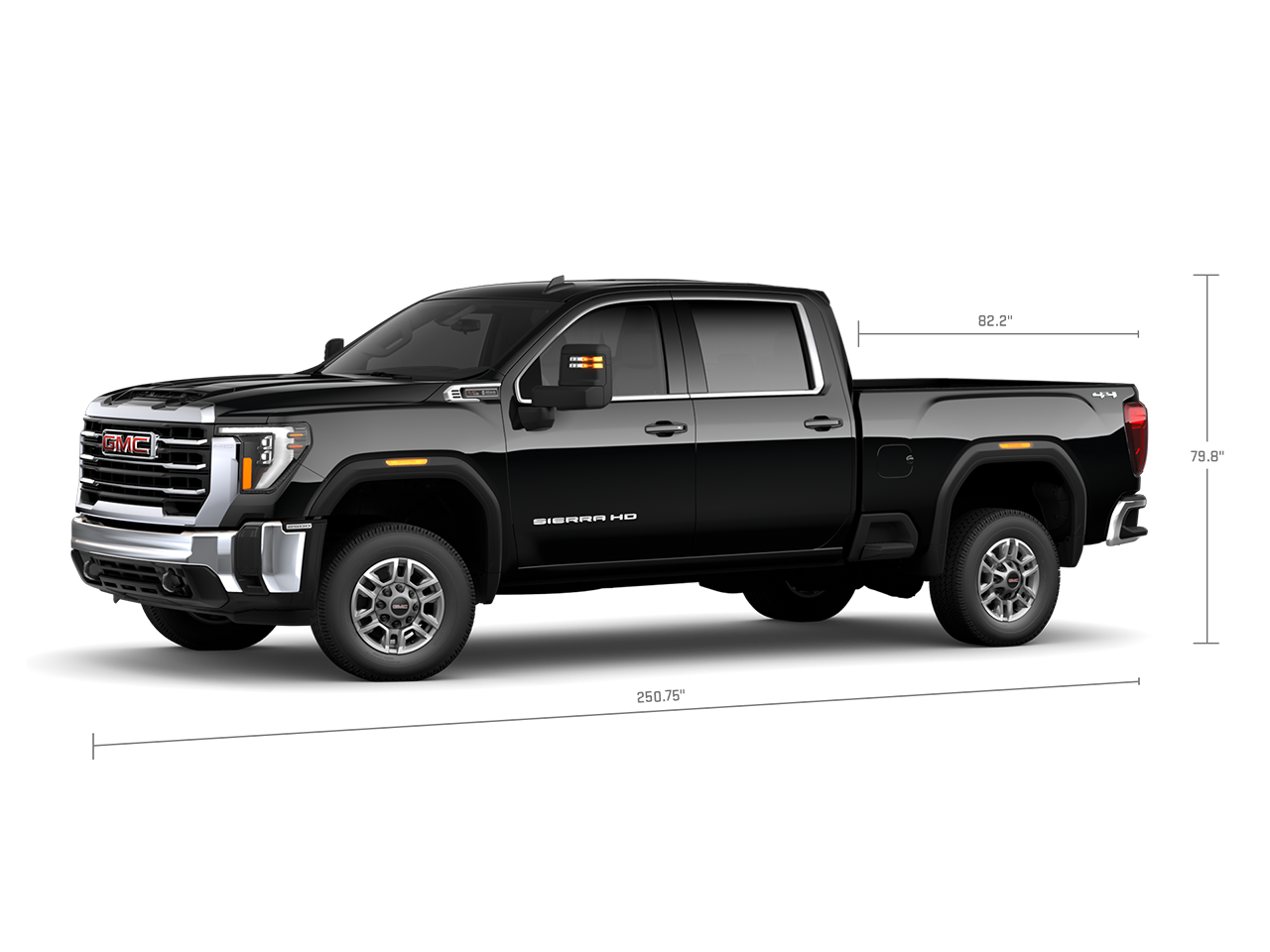

CREW CAB

Sierra 2500 Heavy Duty truck comes in 2WD and 4WD Crew Cab models with a 6' 9" standard bed or available 8' long bed.

MAX 5TH WHEEL/GOOSENECK RATING

18,500 LBS

MAX CONVENTIONAL TRAILERING

18,500 LBS

MAX GCWR

27,500 LBS

GROUND CLEARANCE

10.08"–10.12"

WHEELBASE

158.94”–172.00"

CARGO VOLUME

69.6–83.5 CU. FT.

FRONT/REAR TREAD WIDTH

SRW: 68.1”/68.3"
DRW: 68.5/75"

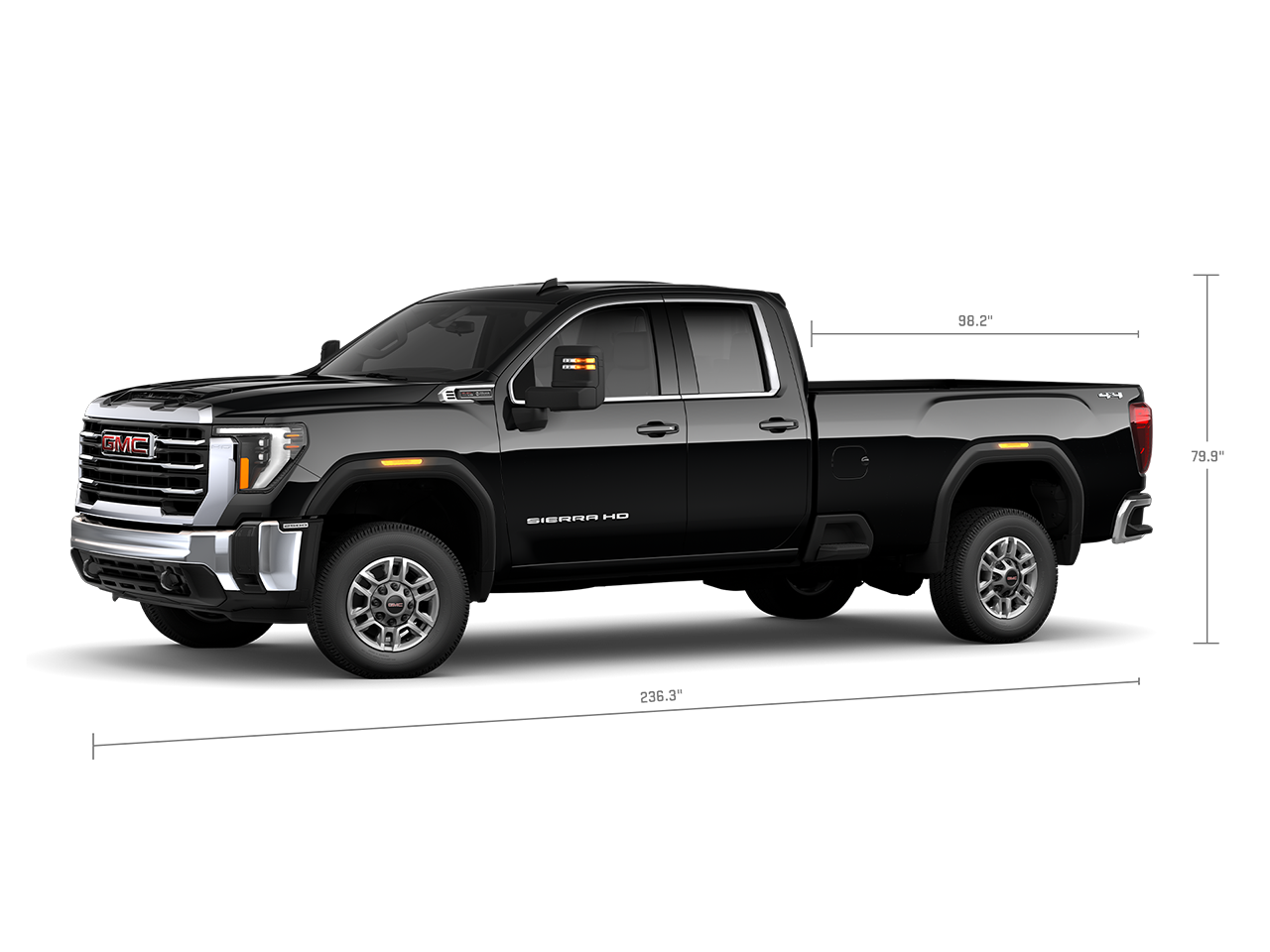

DOUBLE CAB

Sierra 2500 Heavy Duty truck comes in 2WD and 4WD Double Cab models with a 6'9" standard bed or available 8' long bed.

MAX GCWR

26,000 LBS

GROUND CLEARANCE

10.15”–10.19"

WHEELBASE

149.4”–162.48"

CARGO VOLUME

69.6–83.5 CU. FT.

MAX 5TH WHEEL/GOOSENECK RATING

18,200 LBS

MAX CONVENTIONAL TRAILERING

14,500 LBS

REGULAR CAB

Sierra 2500 Heavy Duty truck comes in 2WD and 4WD Regular Cab models with an 8' long bed.

MAX GCWR

26,000 LBS

GROUND CLEARANCE

10.19"

WHEELBASE

141.55"

CARGO VOLUME

83.5 CU. FT.

MAX 5TH WHEEL/GOOSENECK RATING

18,510 LBS

MAX CONVENTIONAL TRAILERING

14,500 LBS

SIERRA 3500 HEAVY DUTY SPEC HIGHLIGHTS

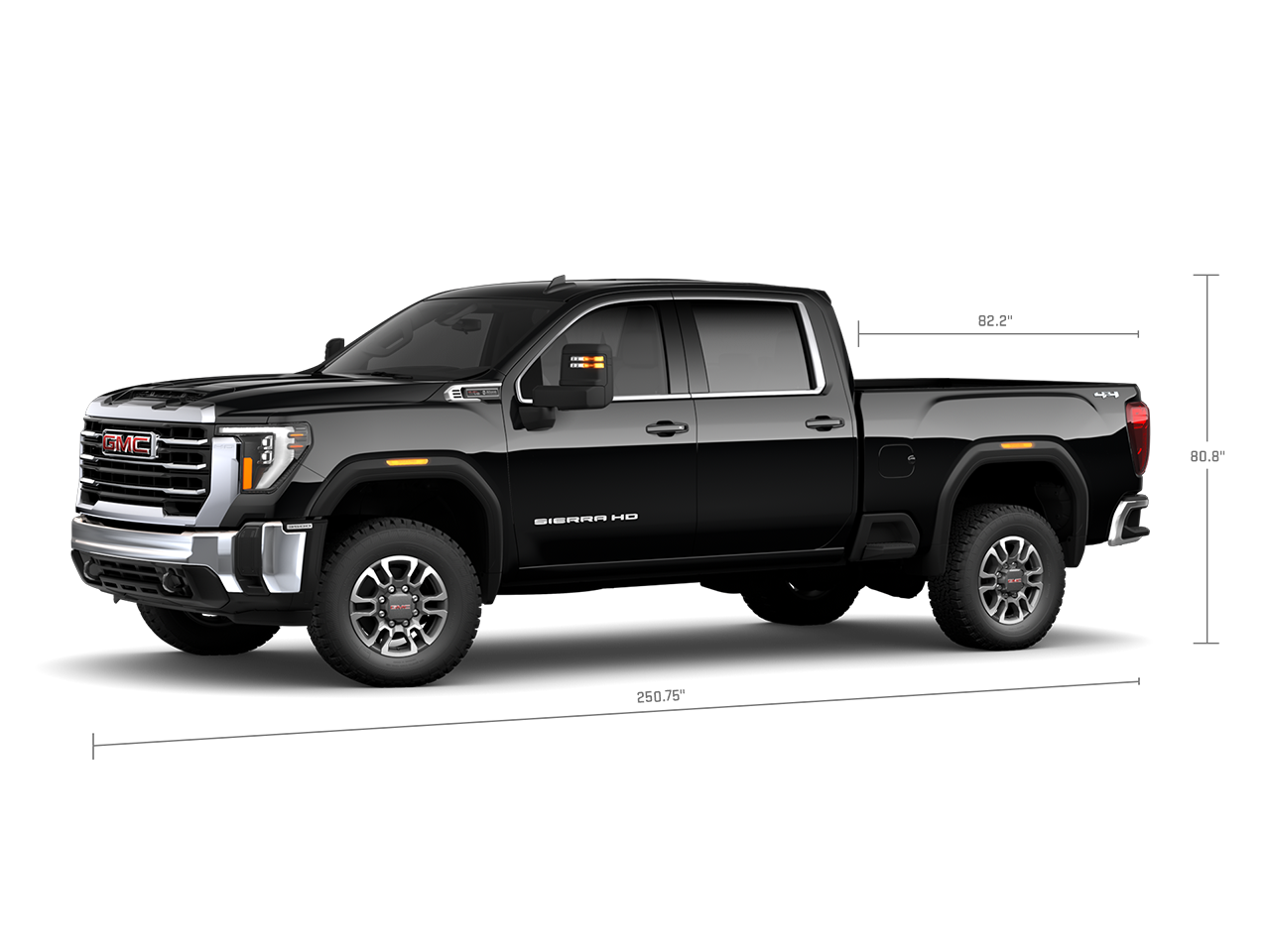

CREW CAB

Sierra 3500 Heavy Duty truck comes in 2WD and 4WD Crew Cab with either a 6' 9" standard bed or available 8' long bed. Long bed is available with an SRW or DRW configuration.

MAX CONVENTIONAL TRAILERING

20,000 LBS

MAX 5TH WHEEL/GOOSENECK RATING

31,400 LBS

MAX GCWR

40,000 LBS

GROUND CLEARANCE

11.14" SRW/11.18" SRW
10.39" DRW

WHEELBASE

158.94"–172.00"

CARGO VOLUME

69.6–83.5 CU. FT.

FRONT/REAR TREAD WIDTH

SRW: 68.1"/68.3"
DRW: 68.5"/75"

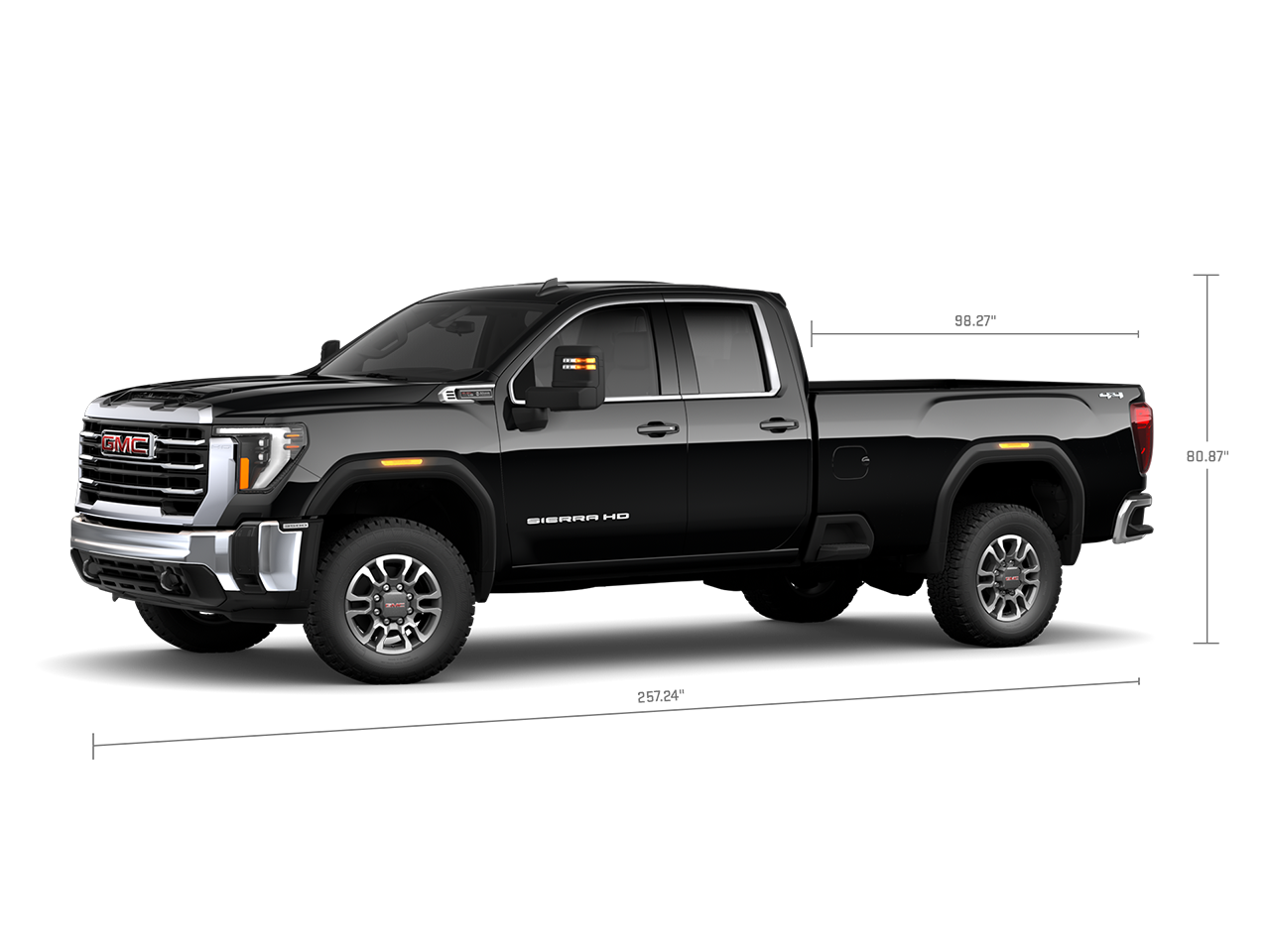

DOUBLE CAB

Sierra 3500 Heavy Duty truck comes in 2WD and 4WD Double Cab with an 8' long bed SRW or DRW configuration.

MAX GCWR

40,000 LBS

GROUND CLEARANCE

11.2" SRW/10.4" DRW

WHEELBASE

162.48"

CARGO VOLUME

83.5 CU. FT.

MAX 5TH WHEEL/GOOSENECK RATING

31,500 LBS

MAX CONVENTIONAL TRAILERING

20,000 LBS

REGULAR CAB

Sierra 3500 Heavy Duty truck comes in 2WD and 4WD Regular Cab with an 8' long bed SRW or DRW configuration.

MAX GCWR

43,900 LBS

GROUND CLEARANCE

11.2" SRW/10.5" DRW

WHEELBASE

141.55"

CARGO VOLUME

83.5 CU. FT.

MAX 5TH WHEEL/GOOSENECK RATING

32,000 LBS/36000 LBS

MAX CONVENTIONAL TRAILERING

20,000 LBS

2500 HEAVY DUTY DETAILED SPECS

2500 CREW CAB DIESEL TOWING & PAYLOAD 2WD

2WD CREW CAB STANDARD BOX

2WD CREW CAB LONG BOX

MAX GCWR

27,500 LBS

27,500 LBS

MAX CONVENTIONAL HITCH

18,500 LBS

18,500 LBS

MAX FIFTH WHEEL HITCH

18,500 LBS

18,500 LBS

MAX GOOSENECK HITCH

18,500 LBS

18,500 LBS

MAX PAYLOAD

3,553 LBS

3,536 LBS

2500 CREW CAB DIESEL TOWING & PAYLOAD 4WD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

MAX GCWR

27,500 LBS

27,500 LBS

MAX CONVENTIONAL HITCH

18,500 LBS

18,500 LBS

MAX FIFTH WHEEL HITCH

18,500 LBS

18,500 LBS

MAX GOOSENECK HITCH

18,500 LBS

18,500 LBS

MAX PAYLOAD

3,563 LBS

3,597 LBS

2500 CREW CAB GAS TOWING & PAYLOAD 2WD

2WD CREW CAB STANDARD BOX

2WD CREW CAB LONG BOX

MAX GCWR

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

MAX FIFTH WHEEL HITCH

16,940 LBS

16,840 LBS

MAX GOOSENECK HITCH

16,940 LBS

16,840 LBS

MAX PAYLOAD

3,751 LBS

3,800 LBS

2500 CREW CAB GAS TOWING & PAYLOAD 4WD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX

MAX GCWR

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

MAX FIFTH WHEEL HITCH

16,650 LBS

16,550 LBS

MAX GOOSENECK HITCH

16,650 LBS

16,550 LBS

MAX PAYLOAD

3,760 LBS

3,862 LBS

2500 ENGINES

6.6 L V-8 gasoline

6.6 L V-8 Turbo Diesel

CYLINDER HEAD MATERIAL

Cast Aluminum

Cast Aluminum

COMPRESSION RATIO

10.75 : 1

16 : 1

VALVETRAIN

Overhead-valve, two valves per cylinder, variable valve trimming

Overhead-valve, four valves per cylinder

FUEL DELIVERY

Direct Fuel Injection

Common-Rail Direct Fuel Injection

HORSEPOWER (hp @rpm)

401 @5200

445 @2800

TORQUE (lb.-ft @rpm)

464 @4000

910 @1600

2500 TRANSMISSIONS & AXLES

6L90 SIX-SPEED AUTOMATIC TRANSMISSION (6.6L GAS)

ALLISON 10-SPEED AUTOMATIC TRANSMISSION (6.6L DIESEL)

GEAR RATIOS (:1)

6L90

10L1000

FIRST GEAR

4.03

4.54

SECOND GEAR

2.36

2.87

THIRD GEAR

1.53

2.06

FOURTH GEAR

1.15

1.72

FIFTH GEAR

0.85

1.48

SIXTH GEAR

0.67

1.26

SEVENTH GEAR

1.00

EIGHTH GEAR

0.85

NINTH GEAR

0.69

TENTH

0.63

REVERSE

3.06

4.54

AXLE RATIO

3.73

3.42

REAR AXLE RING GEAR SIZE

11.5 in.

11.5 in.

2500 DIMENSIONS

2WD/4WD CREW CAB STANDARD BOX

2WD/4WD CREW CAB LONG BOX

WHEELBASE

158.9"

172"

OVERALL LENGTH

250.1"

266.1"

OVERALL WIDTH

81.9"

81.9"

OVERALL HEIGHT

79.8"

79.7"

CARGO BED INSIDE LENGTH (AT FLOOR)

82.2"

98.2"

INSIDE HEIGHT (BOX)

21"

21"

INSIDE WIDTH (BETWEEN WHEELHOUSING)

51.9"

50.6"

WALL TO WALL

71.4"

71.4"

CARGO BOX VOLUME

69.6 cu.ft

83.5 cu.ft

3500 HEAVY DUTY DETAILED SPECS

3500 DIESEL TOWING & PAYLOAD 2WD

2WD CREW CAB STANDARD BOX

2WD CREW CAB LONG BOX SRW

2WD CREW CAB LONG BOX DRW

MAX GCWR

29,700 LBS

29,700 LBS

40,000 LBS

MAX CONVENTIONAL HITCH

20,000 LBS

20,000 LBS

20,000 LBS

MAX FIFTH WHEEL HITCH

21,500 LBS

21,330 LBS

31,400 LBS

MAX GOOSENECK HITCH

21,500 LBS

21,330 LBS

31,400 LBS

MAX PAYLOAD

4,135 LBS

4,013 LBS

5,892 LBS

3500 DIESEL TOWING & PAYLOAD 4WD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX SRW

4WD CREW CAB LONG BOX DRW

MAX GCWR

29,700 LBS

29,700 LBS

40,000 LBS

MAX CONVENTIONAL HITCH

20,000 LBS

20,000 LBS

20,000 LBS

MAX FIFTH WHEEL HITCH

21,300 LBS

21,040 LBS

31,180 LBS

MAX GOOSENECK HITCH

21,300 LBS

21,040 LBS

31,180 LBS

MAX PAYLOAD

4,185 LBS

4,078 LBS

5,607 LBS

3500 GAS TOWING & PAYLOAD 2WD

2WD CREW CAB STANDARD BOX

2WD CREW CAB LONG BOX SRW

2WD CREW CAB LONG BOX DRW

MAX GCWR

24,000 LBS

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

16,300 LBS

MAX FIFTH WHEEL HITCH

16,700 LBS

16,700 LBS

16,200 LBS

MAX GOOSENECK HITCH

16,700 LBS

16,700 LBS

16,200 LBS

MAX PAYLOAD

4,316 LBS

4,333 LBS

6,894 LBS

3500 GAS TOWING & PAYLOAD 4WD

4WD CREW CAB STANDARD BOX

4WD CREW CAB LONG BOX SRW

4WD CREW CAB LONG BOX DRW

MAX GCWR

24,000 LBS

24,000 LBS

24,000 LBS

MAX CONVENTIONAL HITCH

14,500 LBS

14,500 LBS

16,240 LBS

MAX FIFTH WHEEL HITCH

16,530 LBS

16,410 LBS

16,120 LBS

MAX GOOSENECK HITCH

16,530 LBS

16,410 LBS

16,120 LBS

MAX PAYLOAD

4,365 LBS

4,398 LBS

6,610 LBS

3500 ENGINES

6.6 L V-8 gasoline

6.6 L V-8 Turbo Diesel

CYLINDER HEAD MATERIAL

Cast Aluminum

Cast Aluminum

COMPRESSION RATIO

10.75 : 1

16 : 1

VALVETRAIN

Overhead-valve, two valves per cylinder, variable valve trimming

Overhead-valve, four valves per cylinder

FUEL DELIVERY

Direct Fuel Injection

Common-Rail Direct Fuel Injection

HORSEPOWER (hp @rpm)

401 @5200

445 @2800

TORQUE (lb.-ft @rpm)

464 @4000

910 @1600

3500 TRANSMISSIONS & AXLES

6L90 SIX-SPEED AUTOMATIC TRANSMISSION (6.6L GAS)

ALLISON 10-SPEED AUTOMATIC TRANSMISSION (6.6L DIESEL)

GEAR RATIOS (:1)

6L90

10L1000

FIRST GEAR

4.03

4.54

SECOND GEAR

2.36

2.87

THIRD GEAR

1.53

2.06

FOURTH GEAR

1.15

1.72

FIFTH GEAR

0.85

1.48

SIXTH GEAR

0.67

1.26

SEVENTH GEAR

1.00

EIGHTH GEAR

0.85

NINTH GEAR

0.69

TENTH

0.63

REVERSE

3.06

4.54

AXLE RATIO

3.73

3.42

REAR AXLE RING GEAR SIZE

11.5 in.

12 in.

3500 DIMENSIONS

2WD/4WD CREW CAB STANDARD BOX

2WD/4WD CREW CAB LONG BOX SRW (LATE AVAILABILITY)

2WD/4WD DRW CREW CAB LONG BOX DRW (LATE AVAILABILITY)

WHEELBASE

158.9"

172"

172"

OVERALL LENGTH

250.1"

266.1"

266.1"

OVERALL WIDTH

81.9"

81.9"

96.8"

OVERALL HEIGHT

80.9"

80.7"

80"

CARGO BED INSIDE LENGTH (AT FLOOR)

82.2"

98.2"

98.2"

INSIDE HEIGHT (BOX)

21"

21"

21"

INSIDE WIDTH (BETWEEN WHEELHOUSING)

51.9"

50.6"

50.6"

WALL TO WALL

71.4"

71.4"

71.4"

CARGO BOX VOLUME

69.6 cu.ft

83.5 cu.ft

83.5 cu.ft

GALLERY

YOU MIGHT ALSO LIKE

STARTING AT

$58,400

AS SHOWN

$65,375

STARTING AT

$64,900

AS SHOWN

$68,265

STARTING AT

$29,700

AS SHOWN

$54,885

STARTING AT

$58,400

AS SHOWN

$65,375

STARTING AT

$64,900

AS SHOWN

$68,265

STARTING AT

$29,700

AS SHOWN

$54,885

NEXT STEPS

  • Requires Sierra 3500 HD Regular Cab Long Bed 2WD DRW with available Duramax 6.6L Turbo-Diesel V8, Max Trailering Package and gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Read the vehicle Owner’s Manual for important feature limitations and information. Some camera views requires available accessory camera and installation. Not compatible with all trailers. See your dealer for details.

  • Requires available accessory trailer camera and installation.  Not compatible with all trailers. See your dealer for details. Read the vehicle's owner's manual for important feature limitations and information.

  • The Manufacturer's Suggested Retail Price excludes destination freight charge, tax, title, license, dealer fees and optional equipment. See your GMC dealer for details. Click here to see all GMC destination freight charges.

  • Requires properly equipped 3500 Regular Cab DRW Long Box 2WD model with available 6.6L Duramax Turbo Diesel engine and gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires available Duramax 6.6L Turbo-Diesel V8 engine.

  • Requires properly equipped 3500 Regular Cab DRW Long Box 2WD model with 6.6L gas V8 engine. These maximum payload ratings are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

  • App functionality and features vary with vehicle equipment and trim level. Data connection may be required. Some features require active service plan and working electrical system. Terms and limitations apply.

  • Shown with camera system and hitches from independent suppliers, and are not covered by the GM New Vehicle Limited Warranty. GM is not responsible for the independent supplier alterations.

  • Requires a compatible mobile device, active OnStar service and data plan. 4G LTE service available in select markets. Visit onstar.com for coverage map, details and system limitations.

  • Extra-cost feature; requires installation.

  • Cargo and load capacity limited by weight and distribution.

  • Excludes other GM vehicles.

  • Service varies with conditions and location. Requires active service plan and paid AT&T data plan. See https://www.gmfleet.com/connected-vehicles for details and limitations.

  • Optional equipment shown.



  • The 18,500 lbs. rating requires properly equipped 2500 Crew Cab model with available 6.6L Duramax Turbo Diesel and fifth wheel or gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires properly equipped 2500 Crew Cab Standard Box 2WD model with available 6.6L V8 gas engine and fifth wheel or gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • The 18,510 lbs. rating requires properly equipped 2500 Regular Cab Long Bed 2WD model with available 6.6L Duramax Turbo Diesel and fifth wheel or gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • The 3,979 lbs. rating requires properly equipped 2500 Regular Cab Long Bed 2WD model with 6.6L gas V8 engine. These maximum payload ratings are intended for comparison purposes only.  Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

  • The 3,760 lbs. rating requires properly equipped 2500 Crew Cab Standard Bed 4WD model with 6.6L V8 gas engine and fifth wheel or gooseneck hitch. These maximum payload ratings are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

  • Requires properly equipped 3500 Crew Cab Long Box 2WD model with available Duramax Turbo-Diesel V8 engine and fifth wheel or gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires properly equipped 3500 Regular Cab DRW Long Box 2WD model with available 6.6L Duramax Turbo Diesel engine and gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • The 4,185 lbs. rating requires properly equipped 2500 Crew Cab Long Box 4WD model with available Duramax Turbo-Diesel V8 engine with fifth wheel or gooseneck hitch. These maximum payload ratings are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

  • Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Gross Combination Weight Rating (GCWR). When properly equipped; includes weight of vehicle and trailer combination, including the weight of driver, passengers, fuel, optional equipment and cargo in the vehicle and trailer.

  • Requires 2500 HD Double Cab Standard Bed 2WD model with available Duramax 6.6L Turbo-Diesel V8 engine and fifth-wheel/gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Requires 2500 HD Regular Cab Long Bed 2WD model with available Duramax 6.6L Turbo Diesel V8 engine and fifth-wheel/gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Requires 3500 HD Crew Cab Long Bed 2WD DRW model with available Duramax 6.6L Turbo-Diesel V8 engine and fifth-wheel/gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Requires 3500 HD Double Cab Long Bed 2WD DRW model with available Duramax 6.6L Turbo-Diesel V8 engine and fifth-wheel/gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Requires 3500 HD Double Cab Long Bed 2WD DRW model with available Duramax 6.6L Turbo-Diesel V8 engine. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Requires 3500 HD Regular Cab Long Bed 2WD DRW model with available Duramax 6.6L Turbo-Diesel V8 engine, max trailering package and gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Requires 3500 HD Regular Cab Long Bed 2WD DRW model with available Duramax 6.6L Turbo-Diesel V8 engine. Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Owner’s Manual. The weight of the passengers, cargo, and options or accessories may reduce the amount you can tow.

  • Requires properly equipped vehicle. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • These maximum payload ratings are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

  • The 30,990 lbs. rating requires properly equipped Sierra 3500HD Crew Cab Long Box 4WD DRW with available Duramax 6.6L Turbo-Diesel V8 engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • 7,700-lb rating requires a properly equipped 2WD Canyon Elevation Crew Cab short bed model with available Duramax 2.8L I4 Diesel engine and Trailering Package (late availability). Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires 4WD Double Cab with available 6.2L V8 and Max Trailering Package. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • SLE models only.

  • 7,550-lb rating requires a properly equipped 4WD Canyon Denali model with available Duramax 2.8L I4 Diesel engine (late availability). Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options oraccessories may reduce the amount you can tow.

  • Requires 2WD Denali Short Box model with 5.3L V-8 engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires properly equipped 3500 Crew Cab DRW Long Box 4WD model with available 6.6L Duramax Turbo Diesel engine and fifth wheel or gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Savana Passenger's 9,600-lb rating requires a 2500 or 3500 Regular wheelbase model with available 6.0L V8 engine and trailering equipment package. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Savana Cargo’s 10,000-lb rating requires  the available 6.0L V8 engine and trailering equipment package.  Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual.  The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Savana Cutaway’s 8,940-lb rating requires a 4500 Series 159" Wheelbase model with available 6.0L V8 engine. These maximum payload ratings are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

  • Maximum Gross Vehicle Weight Rating (GVWR). When properly equipped; includes weight of vehicle, passengers, cargo and equipment.

  • Canyon’s 7000-lb rating requires available trailering package and 3.6L V-6 engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Sierra's 12,500-lb rating requires Sierra Double Cab or Crew Cab Short box 2wd with 6.2L EcoTec3 V8 engine and NHT Max Trailering Package. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Trailer weight ratings are calculated assuming properly equipped vehicle, plus driver and one passenger. The weight of other optional equipment, passengers and cargo will reduce the trailer weight your vehicle can tow. See dealer for details.

  • Sierra Denali's 9,300-lb rating requires 2wd. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Savana Passenger's 10,000-lb rating requires 2500 Wheel Base with 6.0L V8 engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Savana Cargo's 10,000-lb rating requires 6.0L V8 engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • These maximum payload ratings are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

  • Gross Combination Weight Rating (GCWR). When properly equipped, includes weight of vehicle, passengers, cargo and equipment.

  • Canyon’s 7700-lb rating requires 2WD Crew Cab model with available Duramax 2.8L I-4 Diesel engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires 2WD Crew Cab DRW equipped with 6.6L Duramax Diesel and fifth-wheel or gooseneck hitch. Trailer weight ratings are calculated assuming properly equipped vehicle, plus driver and one passenger. The weight of other optional equipment, passengers and cargo will reduce the trailer weight your vehicle can tow. See dealer for details.

  • Starting at price for base Sierra HD. The Manufacturer's Suggested Retail Price excludes destination freight charge, tax, title, license, dealer fees and optional equipment. See your GMC dealer for details. Click here to see all GMC destination freight charges.

  • Requires properly equipped 3500 Regular Cab DRW Long Box 2WD model with available 6.6L Duramax Turbo Diesel engine and gooseneck hitch. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • The Manufacturer's Suggested Retail Price excludes destination freight charge, tax, title, license, dealer fees and optional equipment. See your GMC dealer for details. Click here to see all GMC destination freight charges. Bed/Roof-Mounted Bicycle Carriers shown. Requires crossbars or Thule Rack Solution. Non-GM warranty. Warranty by Thule®. See dealer for more information.

  • Available. Requires 2.0L Turbocharged gas engine.

  • Terrain's 3,500-lb rating requires available 2.0L Turbocharged gas engine and available trailering equipment. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires available 3.6L V6 engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Yukon’s 8,500-lb rating requires short wheelbase 2wd with 5.3L EcoTec3 V8 engine and HD Trailering Package. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Requires 2WD Denali Short Box model with 5.3L V-8 engine. Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you can tow.

  • Savana Cutaway’s 9,006-lb rating requires a 4500 Series 159" Wheelbase model with available 6.0L V8 engine. These maximum payload ratings are intended for comparison purposes only. Before you buy a vehicle or use it to haul people or cargo, carefully review the vehicle loading section of the Owner’s Manual and check the carrying capacity of your specific vehicle on the label on the inside of the driver’s door jamb.

|
